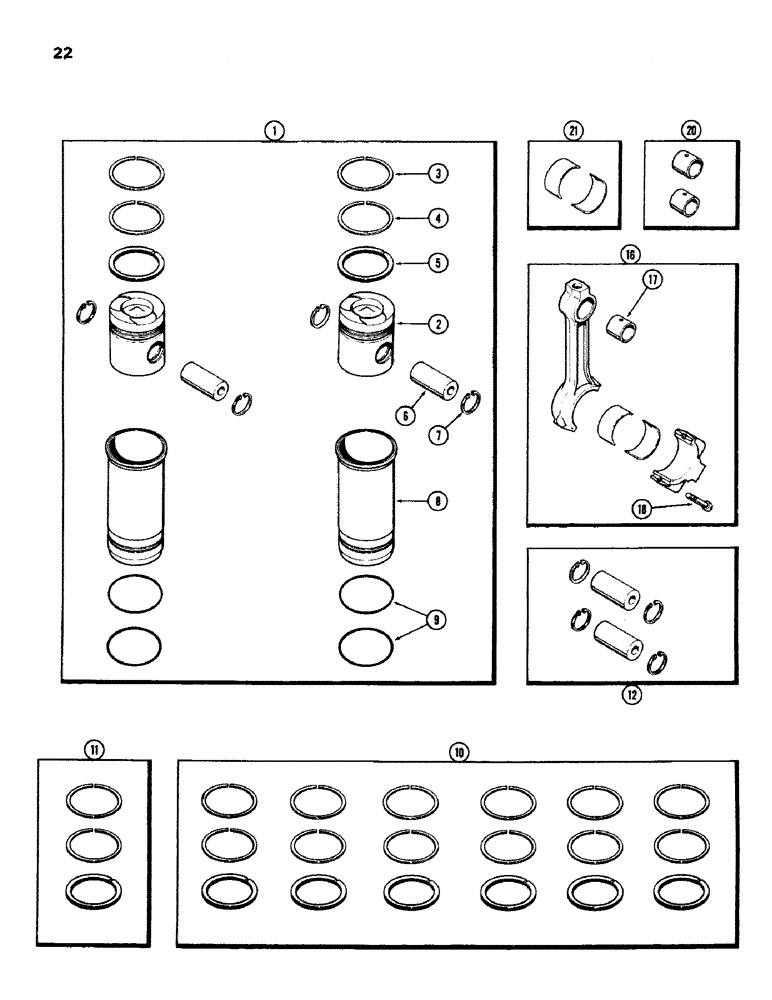

Запчасти Case IH 970 (022) - PISTON ASSEMBLY AND CONNECTING RODS, (401B) DIESEL ENGINE (02) - ENGINE

1

A43116

SLEEVE

PISTON AND SLEEVE KIT - (Set of 2) (Replaces A41964), Includes: Ref. 2 - 9

3шт.

2

A65127

PISTON

- cylinder, 4-1/8" bore (Replaces A58882)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (Order Ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove) (Order Ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (bottom groove) (Order Ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order Ref. 12)

2шт.

7

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , piston pin 1.50", Int, #150

4шт.

8

A136009

SLEEVE

- piston (cylinder liner)

2шт.

9

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O"RING - sleeve packing

4шт.

10

A41969

RING

KIT - re-ring (Set of 6), Includes: Ref. 11

1шт.

11

A41967

RING, PISTON

RING KIT - re-ring (Set of 1)

6шт.

12

A24517

PIN

KIT - w/retaining rings (Set of 2)

3шт.

16

A58862

ROD

ASSY. - connecting, Includes: Ref. 17 and 18

6шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order Ref. 20)

1шт.

18

A66618

FLANGE BOLT

BOLT - connecting rod cap, 1/2 x 2-3/16" N.F. spec

2шт.

20

A21722

BUSHING

KIT - piston pin (Set of 2)

3шт.

21

A20393

LINING

INSERT ASSY. - connecting rod bearing (Std.)

6шт.

21

A20569

JOURNAL

INSERT ASSY. - connecting rod bearing (-.002")

6шт.

21

A20571

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.010")

6шт.

21

A20573

KIT

INSERT ASSY. - connecting rod bearing (-.020")

6шт.

21

A20576

LINING

INSERT ASSY. - connecting rod bearing (-.030")

6шт.
