Запчасти Case IH 970 (332) - CAB, GLASS, HINSON (09) - CHASSIS/ATTACHMENTS

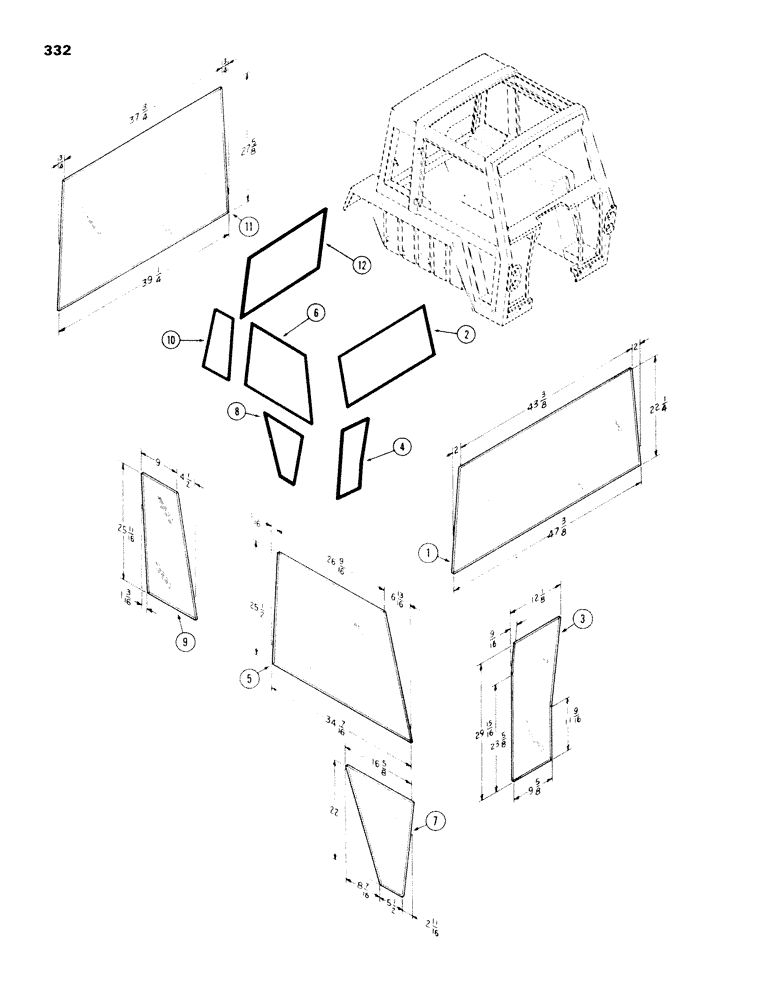

Схема запчастей Case IH 970 - (332) - CAB, GLASS, HINSON (09) - CHASSIS/ATTACHMENTS
4
1
2
7
9
10
3
6
11
8
5
12

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

GLASS - windshield

1шт.

2

NSS

NOT SOLD SEPARAT

MOULDING - windshield, 156" (Order A42677)

1шт.

3

NSS

NOT SOLD SEPARAT

GLASS - front lower

2шт.

4

NSS

NOT SOLD SEPARAT

MOLDING - glass, front lower, 84" (Order A42677)

2шт.

5

NSS

NOT SOLD SEPARAT

GLASS - R.H. window and door, upper

2шт.

6

NSS

NOT SOLD SEPARAT

MOLDING - glass, upper, 116" (Order A42677)

2шт.

7

NSS

NOT SOLD SEPARAT

GLASS - R.H. side and door, lower

2шт.

8

NSS

NOT SOLD SEPARAT

MOLDING - glass, lower, 68" (Order A42677)

2шт.

9

NSS

NOT SOLD SEPARAT

GLASS - rear side

2шт.

10

NSS

NOT SOLD SEPARAT

MOLDING - glass, rear side, 76" (Order A42677)

2шт.

11

NSS

NOT SOLD SEPARAT

GLASS - rear window

1шт.

12

NSS

NOT SOLD SEPARAT

MOLDING - rear window, 135" (Order A42677)

1шт.

A42677

MOLDING

- glass (50' roll) (Replaces A42512)

1шт.

Выбрано товаров: 13
