Запчасти Case IH 970 (330) - CAB, GLASS, BETTENDORF (09) - CHASSIS/ATTACHMENTS

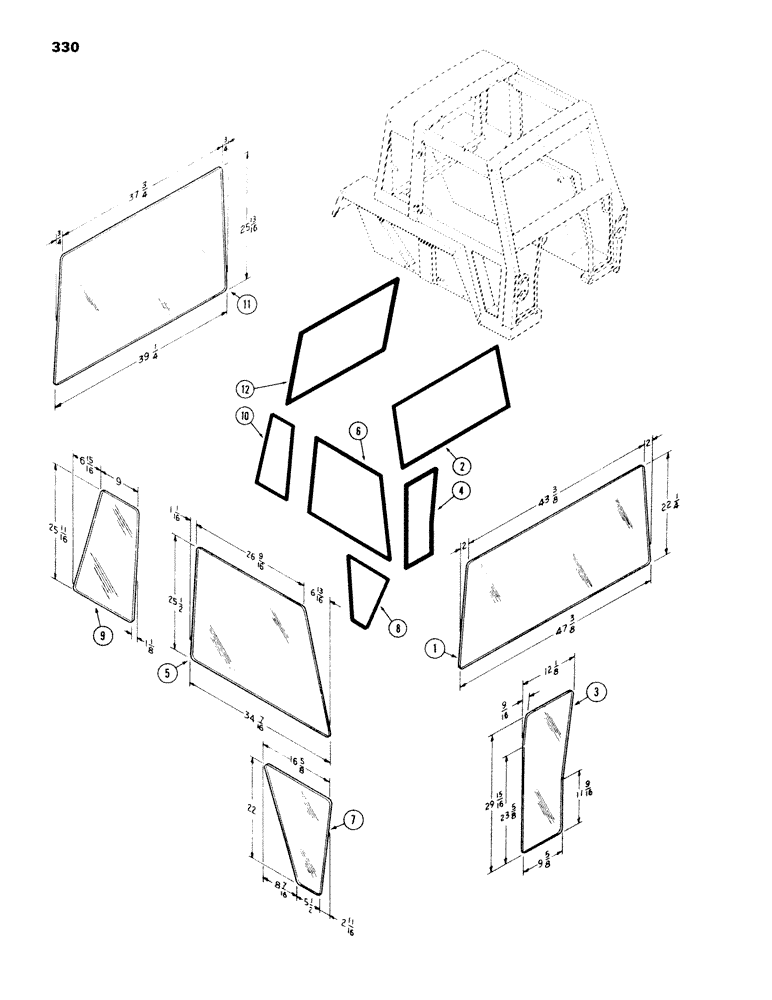

Схема запчастей Case IH 970 - (330) - CAB, GLASS, BETTENDORF (09) - CHASSIS/ATTACHMENTS
2
6
1
10
12
11
7
4
9
3
8
5

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

GLASS - windshield

1шт.

2

NSS

NOT SOLD SEPARAT

MOLDING - glass, windshield (Order A42677)

1шт.

3

NSS

NOT SOLD SEPARAT

GLASS - front lower

2шт.

4

NSS

NOT SOLD SEPARAT

MOLDING - glass, front lower (Order A42677)

2шт.

5

NSS

NOT SOLD SEPARAT

GLASS - R.H. window and door, upper

2шт.

6

NSS

NOT SOLD SEPARAT

MOLDING - glass, upper (Order A42677)

2шт.

7

NSS

NOT SOLD SEPARAT

GLASS - R.H. side and door, lower

2шт.

8

NSS

NOT SOLD SEPARAT

MOLDING - glass, lower (Order A42677)

2шт.

9

NSS

NOT SOLD SEPARAT

GLASS - rear glass

2шт.

10

NSS

NOT SOLD SEPARAT

MOLDING - glass, rear side (Order A42677)

2шт.

11

NSS

NOT SOLD SEPARAT

GLASS - rear window

1шт.

12

NSS

NOT SOLD SEPARAT

MOLDING - glass, rear window (Order A42677)

1шт.

A42677

MOLDING

- glass (50' roll)

1шт.

Выбрано товаров: 13
