Запчасти Case IH 970 (328) - MIRRORS, DUAL VISION (09) - CHASSIS/ATTACHMENTS

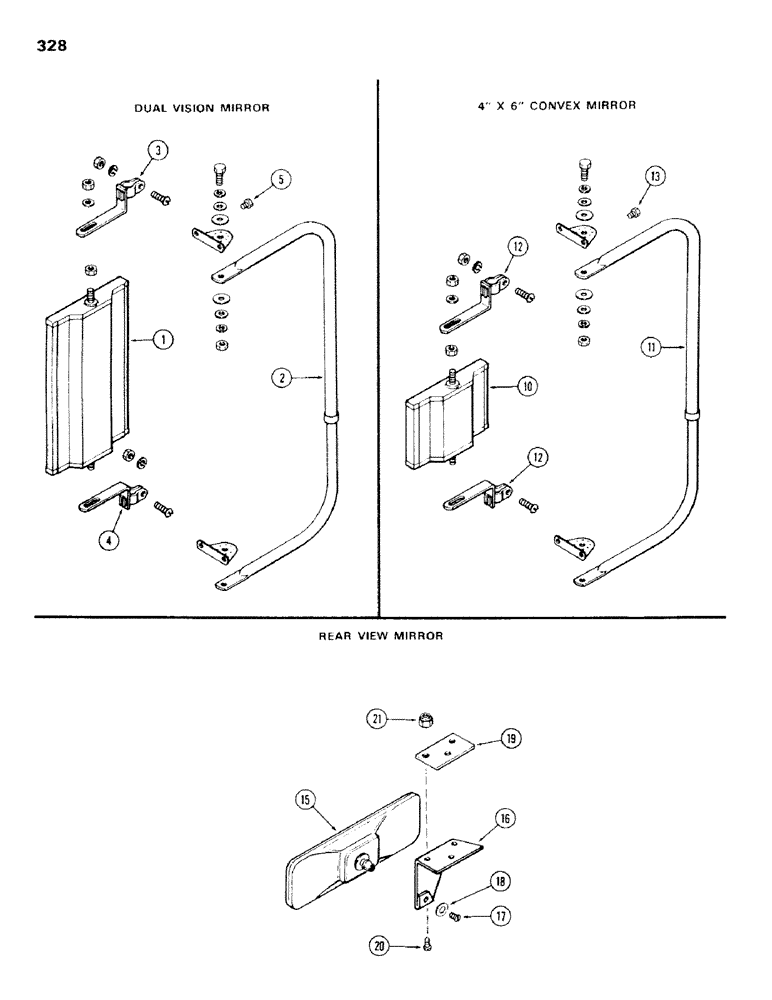

Схема запчастей Case IH 970 - (328) - MIRRORS, DUAL VISION (09) - CHASSIS/ATTACHMENTS
13
11
17
16
4
1
5
2
19
18
12
15
20
10
21
3
12

Артикул

Название

Примечание

Количество

A61895

ATTACHMENT

- mirror (Mach. Item), Includes: Ref. 1 - 5

1шт.

NSS

NOT SOLD SEPARAT

MIRROR ASSY. - dual vision (Order A61895), Includes: Ref. 1 - 4

1шт.

1

A42765

MIRROR

- dual vision

1шт.

2

A42764

BRACKET

BRAKET - mirror swing away

1шт.

3

A42766

ADAPTER

- mirror bracket (small)

1шт.

4

A42767

ADAPTER

- mirror bracket (large)

1шт.

5

187-1021

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

BOLT - 1/4 x 3/8" hex., Shakeproof

4шт.

A61897

KIT

ATTACHMENT - mirror (Mach. Item), 4 x 6 convex, Includes: Ref. 10 - 13

1шт.

NSS

NOT SOLD SEPARAT

MIRROR ASSY. - 4 x 6 convex (Order A61897), Includes: Ref. 10 - 12

1шт.

10

A42768

MIRROR

- 4 x 6 convex

1шт.

11

A42764

BRACKET

- mirror swing away, 4 x 6 convex

1шт.

12

A42767

ADAPTER

- mirror bracket, 4 x 6 convex

2шт.

13

187-1021

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

BOLT - 1/4 x 3/8" hex., Shakeproof, 4 x 6 convex

4шт.

F89785

MIRROR

ATTACHMENT - mirror, rear view, Includes: Ref. 15 - 21

1шт.

15

F89695

MIRROR

ASSY. - rear view

1шт.

16

F63369

BRACKET

- mirror mounting, rear view

1шт.

17

163-15

SCREW,Hex, #10 - 24 x 5/8"

- #10 x 5/8" flat hd., rear view

1шт.

18

195-511

WASHER,#10

- 13/64 x 15/32 x 1/16", rear view

1шт.

19

F63381

PLATE

- bracket mounting, rear view

1шт.

20

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- #10 x 1/2" rd. hd., rear view

3шт.

21

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna, Rear view #10-24, GB

3шт.

Выбрано товаров: 21
