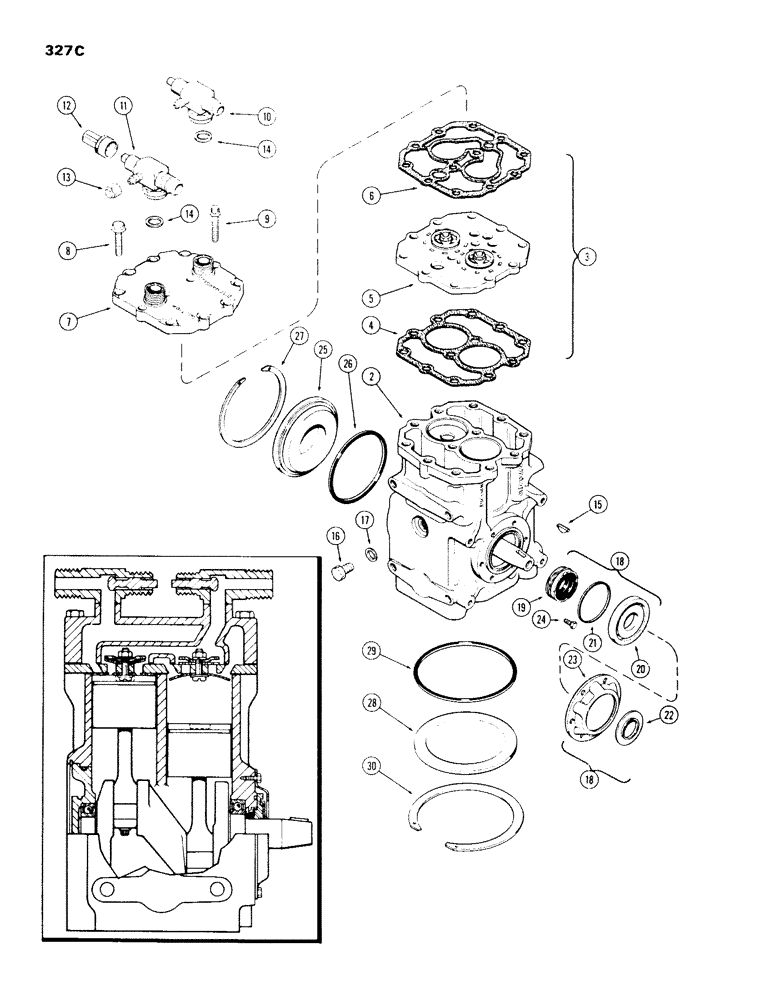

Запчасти Case IH 970 (327C) - TECUMSEH COMPRESSOR (09) - CHASSIS/ATTACHMENTS

A42953

SPARE PART COMPRESSOR ASSY. - (Order A64810) (Tecumseh #HG1000), Includes: Ref. 2 - 30

1шт.

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured Compressor

1шт.

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

CRANKCASE ASSY.

1шт.

3

A42935

PLATE

VALVE PLATE KIT, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - valve plate to crankcase (See A42943)

1шт.

Part of complete overhaul gasket kit P/N A42943

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - cyl. head to valve plate (See A42943)

1шт.

Part of complete overhaul gasket kit P/N A42943

1шт.

8

114-125

BOLT - cyl. head to crankcase (5/16 x 1-3/8" N.F. hex)

8шт.

9

A42947

SCREW,5/16" - 18 x 1.375", Grade 6, Steel

SPARE PART BOLT - cyl. head (5/16 x 1-3/8" N.C., Ferry hd., 12 pt)

4шт.

10

A42936

VALVE

VALVE ASSY. - roto lock, discharge, 1/2" port

1шт.

11

A42937

VALVE

VALVE ASSY. - roto lock, suction, 5/8" port, Includes: Ref. 12 and 13

1шт.

12

A42944

CAP

CAP - sleeve, valve stem

1шт.

13

221-981

CAP - valve stem

1шт.

14

A42938

GASKET

GASKET - roto lock to cyl. head

2шт.

15

A42939

KEY

KEY - crankshaf (No. 6 non-rok)

1шт.

16

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

PLUG - crankcase, filler and level

2шт.

17

NSS

NOT SOLD SEPARAT

GASKET - filler & level plug (See A42943)

2шт.

Part of complete overhaul gasket kit P/N A42943

1шт.

18

A42934

SEAL

SEAL KIT - front crankshaft, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - crankshaft

1шт.

20

NSS

NOT SOLD SEPARAT

RETAINER - seal, outer

1шт.

21

NSS

NOT SOLD SEPARAT

"O"RING - (See A42943)

1шт.

Part of complete overhaul gasket kit P/N A42943

1шт.

22

NSS

NOT SOLD SEPARAT

RETAINER - seal, inner

1шт.

23

NSS

NOT SOLD SEPARAT

PLATE - crankshaft seal

1шт.

24

NSS

NOT SOLD SEPARAT

BOLT - seal, Serial Range: plate-crankcase

6шт.

25

NSS

NOT SOLD SEPARAT

HOUSING - rear bearing

1шт.

26

NSS

NOT SOLD SEPARAT

"O"RING - rear brg. hsg. (See A42943)

1шт.

Part of complete overhaul gasket kit P/N A42943

1шт.

27

NSS

NOT SOLD SEPARAT

SNAP RING - rear brg. hsg. retaining

1шт.

28

NSS

NOT SOLD SEPARAT

PLATE - bottom

1шт.

29

NSS

NOT SOLD SEPARAT

"O"RING - bottom plate (See A42943)

1шт.

Part of complete overhaul gasket kit P/N A42943

1шт.

30

NSS

NOT SOLD SEPARAT

SNAP RING - bottom plate retaining

1шт.

A42943

SPARE PART GASKET KIT - complete overhaul , 4, 6, 17, 21, 26 and 29

1шт.
