Запчасти Case IH 970 (327A) - YORK COMPRESSOR (09) - CHASSIS/ATTACHMENTS

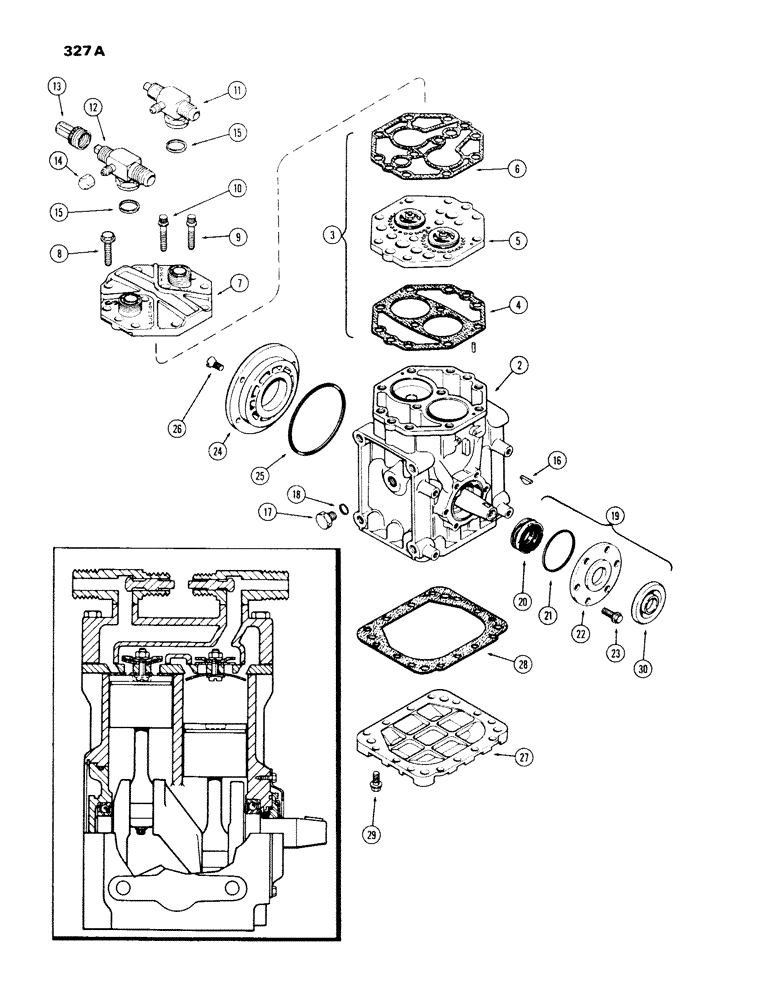

Схема запчастей Case IH 970 - (327A) - YORK COMPRESSOR (09) - CHASSIS/ATTACHMENTS
21
27
24
14
25
7
2
11
13
8
23
10
19
6
9
16
29
15
3
5
12
27
17
30
20
4
28
18
26
15

Артикул

Название

Примечание

Количество

A64810

AIRCOND. COMPRESSOR

COMPRESSOR ASSY. - (York #ER201L-20186) (Replaces A61148), Includes: Ref. 2 - 30

1шт.

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Reman For New P/N 417888C93

1шт.

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

CRANKCASE ASSY.

1шт.

3

A42963

KIT

KIT - valve plate, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - valve plate to crankcase (Order A42964)

1шт.

Part of complete overhaul gasket kit P/N A42964

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - cyl. hd. to valve plate (Order A42964)

1шт.

Part of complete overhaul gasket kit P/N A42964

1шт.

7

NSS

NOT SOLD SEPARAT

CYLINDER HEAD

1шт.

8

A42949

FLANGE BOLT

BOLT - 5/16 x 1-3/8" N.C. hex, washer hd.

8шт.

9

A42947

SCREW,5/16" - 18 x 1.375", Grade 6, Steel

SPARE PART SCREW - 5/16 x 1-3/8" N.C. Ferry hd. 12 pt. cap

2шт.

10

A42948

12 PT SCREW,5/16" - 18 x 1.516", Gr 6

SCREW - 5/16 x 1-17/32" N.C. Ferry hd., 12 pt. cap

2шт.

11

A42936

VALVE

VALVE ASSY. - roto-lock, discharge, 1/2" port

1шт.

12

A42937

VALVE

VALVE ASSY. - roto-lock, suction, 5/8" port, Includes: Ref. 13 and 14

1шт.

13

A42944

CAP

CAP - sleeve, valve stem

2шт.

14

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - valve stem

2шт.

15

A42938

GASKET

GASKET - roto-lock to cyl. hd.

2шт.

16

A42939

KEY

KEY - crankshaft, no. 6 non-rok

1шт.

17

114-210

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5, Full Thd

PLUG - crankcase, filler and level

2шт.

18

NSS

NOT SOLD SEPARAT

"O"RING - filler and level plug (Order A42964)

2шт.

Part of complete overhaul gasket kit P/N A42964

1шт.

19

A42960

SEAL

KIT seal, fromt crankshaft, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - crankshaft

1шт.

21

NSS

NOT SOLD SEPARAT

"O"RING - (Order A42964)

1шт.

Part of complete overhaul gasket kit P/N A42964

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE - seal retaining

1шт.

23

A42961

CAPTIVE WASHER SCREW,Hex, #10 - 24 x 0.469", Full Thd

BOLT - 1/4 x 11/16" N.C. hex., washer hd.

6шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - crankcase, rear

1шт.

25

NSS

NOT SOLD SEPARAT

GASKET - rear housing (Order A42964)

1шт.

Part of complete overhaul gasket kit P/N A42964

1шт.

26

NSS

NOT SOLD SEPARAT

SCREW - rear, Serial Range: hsg.-crankcase

4шт.

27

NSS

NOT SOLD SEPARAT

PLATE - crankcase base

1шт.

28

NSS

NOT SOLD SEPARAT

GASKET - base plate (Order A42964)

1шт.

Part of complete overhaul gasket kit P/N A42964

1шт.

29

NSS

NOT SOLD SEPARAT

BOLT - base, Serial Range: plate-crankcase

12шт.

A42964

GASKET

KIT - gasket, complete overhaul, Includes: Ref. 4, 6, 18, 21, 25 and 28

1шт.

30

A42965

CAP

DUST CAP - drive shaft seal

1шт.
