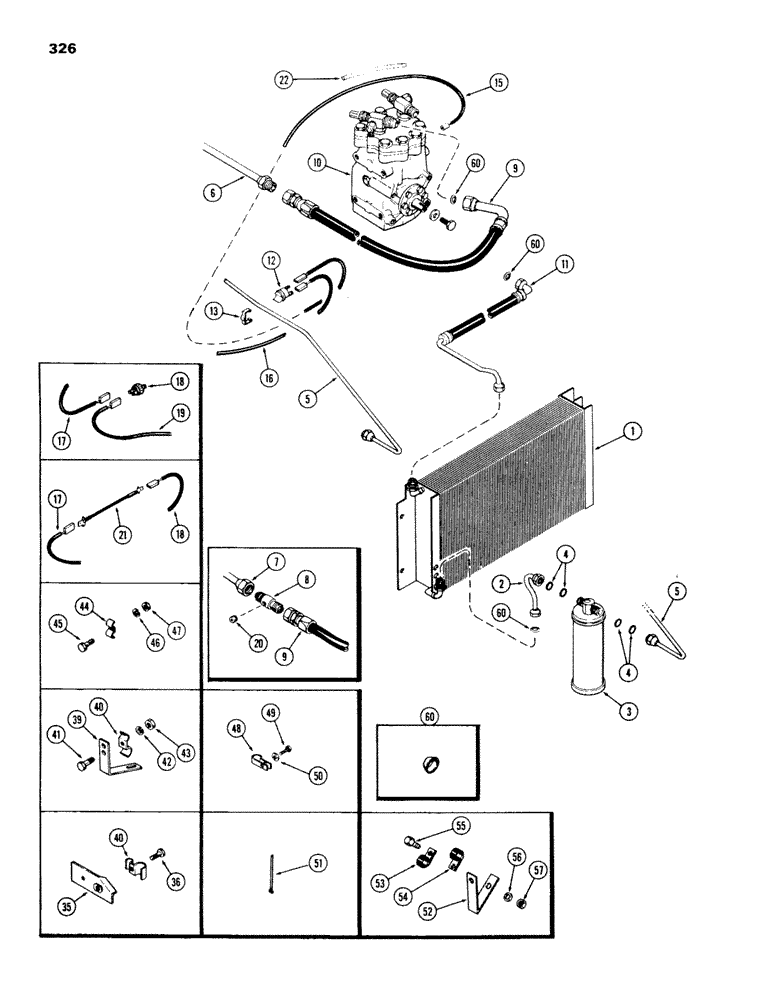

Запчасти Case IH 970 (326) - AIR CONDITIONER (09) - CHASSIS/ATTACHMENTS

1

A61687

COIL

- condenser

1шт.

2

A61690

TUBE

-, Serial Range: condenser-receiver

1шт.

3

A61688

TANK

RECEIVER - drier

1шт.

4

A61198

O-RING,0.07" Thk x 0.301" ID, -11

"O"RING - receiver, 5/16 x 7/16 x 1/16"

4шт.

5

A62225

TUBE

- cab to compressor, w/union (See Figure 311) (1st used trac. ser. no. 8665014)

1шт.

6

A61213

TUBE

- cab to compressor, w/out union (See Figure 311) to trac., Serial Range: -8665014

1шт.

7

A61189

UNION - compressor tube to hose (used w/A61213 tube) to trac., Serial Range: -8665014

1шт.

8

A61207

HOSE

-, Serial Range: cab-compressor

1шт.

9

A61148

COMPRESSOR

ASSY. - air conditioner (See Figure 327B for York compressor breakdown) (See Figure 327D for Tecumseh compressor breakdown)

1шт.

10

A61691

HOSE

-, Serial Range: compressor-condenser

1шт.

11

A61291

THERMOSTAT

- high temperature

1шт.

12

A61789

CLAMP

- thermostat (Replaces A61191)

1шт.

15

A61755

ELECTRICAL WIRE

WIRE - thermostat to compressor clutch

1шт.

16

A42931

ELECTRICAL WIRE

WIRE - thermostat to cab harness (197" long)

1шт.

17

NSS

NOT SOLD SEPARAT

WIRE - cab to lo-pressure thermostat, these components used on some early production tractors. use A42931

1шт.

18

NSS

NOT SOLD SEPARAT

SWITCH - low pressure, these components used on some early production tractors. use A42931

1шт.

19

NSS

NOT SOLD SEPARAT

WIRE - thermostat to lo-pressure thermostat, these components used on some early production tractors. use A42931

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG - union

1шт.

21

NSS

NOT SOLD SEPARAT

WIRE - jumper, these components used on some early production tractors. use A42931

1шт.

22

A62053

HARNESS

LOOM - wire

1шт.

35

A62254

BRACKET

- air conditioner tube mgt.

1шт.

36

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

39

A61202

BRACKET - air conditioner tube mgt. (Diesel)

1шт.

40

A61201

CLAMP - air conditioner tube mtg. (Gas)

1шт.

41

A61704

CLAMP - air conditioner tubes

2шт.

42

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

2шт.

43

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

44

25-104

NUT,1/4"-20, G5

2шт.

45

A61199

CLIP

- tube

1шт.

46

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

NUT - 1/4 x 1/2" N.C. hex

1шт.

47

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

48

25-104

NUT,1/4"-20, G5

1шт.

49

A7922

CLIP

- clutch lead wire

1шт.

50

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

51

92-6

LOCK WASHER,3/8"

1шт.

52

L11541

CABLE TIE,203.2mm L, Nylon

CLIP -, Serial Range: wires-tubes

2шт.

53

A62206

BRACKET - air cond. tubes

1шт.

54

NLS

NO LONGER SERVICED

CLIP - tube, 5/8"

1шт.

55

49845

CLAMP

CLIP - tube, 3/8"

1шт.

56

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

57

92-6

LOCK WASHER,3/8"

1шт.

58

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

59

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

59

222-994

GASKET,1/2 Tube, Fl, Copper

- flare, copper (for 1/2" tube) 45

1шт.

O

1шт.

59

222-995

SEALING WASHER,15.88mm ID

- flare, copper (for 5/8" tube) 45

1шт.

O

1шт.
