Запчасти Case IH 970 (320) - BLOWER (09) - CHASSIS/ATTACHMENTS

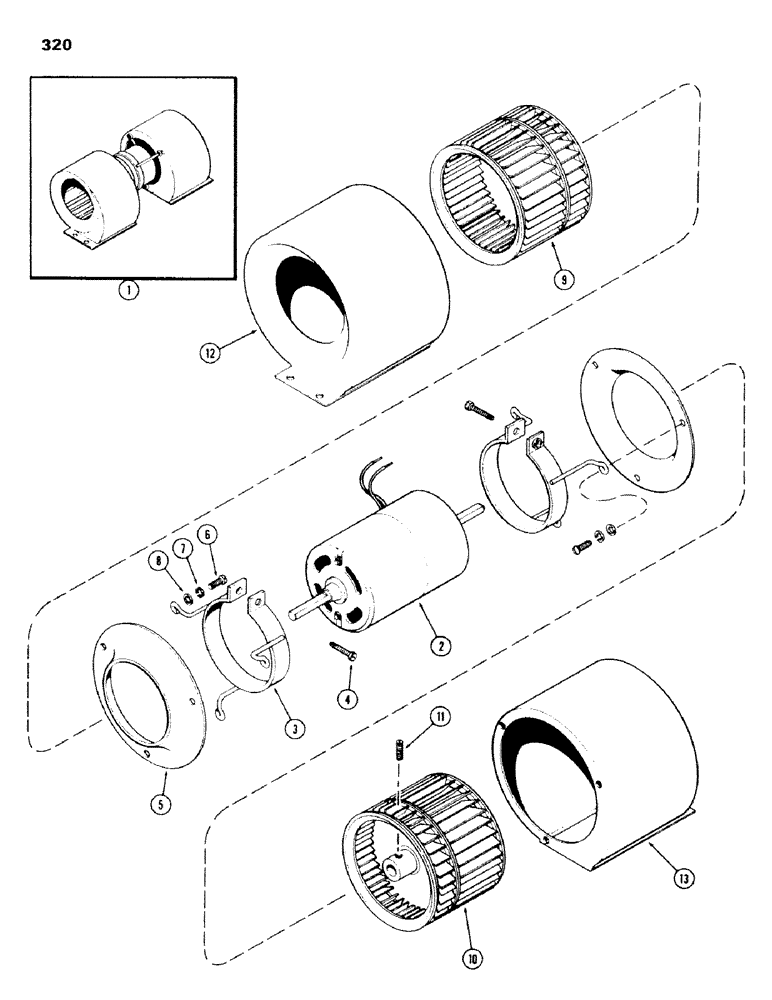

Схема запчастей Case IH 970 - (320) - BLOWER (09) - CHASSIS/ATTACHMENTS
10
11
4
12
6
13
3
8
1
2
5
7
9

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

BLOWER ASSY. - cab air, Includes: Ref. 2 - 13

1шт.

2

F89750

MOTOR, ELECTRIC

MOTOR - blower

1шт.

3

A42570

RUBBER MOUNTING

MOUNTS - motor

2шт.

4

A42592

SCREW - lock, motor mounting

2шт.

5

A42571

PLATE - cover

2шт.

6

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10 x 1/2" N.C. rd. hd. mach.

6шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

8

195-515

WASHER,#12

- 1/4 x 1/2 x 1/16"

6шт.

9

A42568

WHEEL

- blower, R.H.

1шт.

10

A42569

BLOWER,Fan, RH

- blower, L.H.

1шт.

11

84-410

SET SCREW,Hex Soc, 1/4"-28 x 5/8"

SCREW - 1/4" N.F. hex. sckt. cup pt. headless set

2шт.

12

A42584

HOUSING

- blower, R.H.

1шт.

13

A42585

HOUSING

- blower, L.H.

1шт.

Выбрано товаров: 13
