Запчасти Case IH 970 (319A) - CAB, ELECTRICAL EQUIPMENT AND WIRING, FENDER HARNESS, USED PRIOR TO TRAC. SER.NO. 8675001 (09) - CHASSIS/ATTACHMENTS

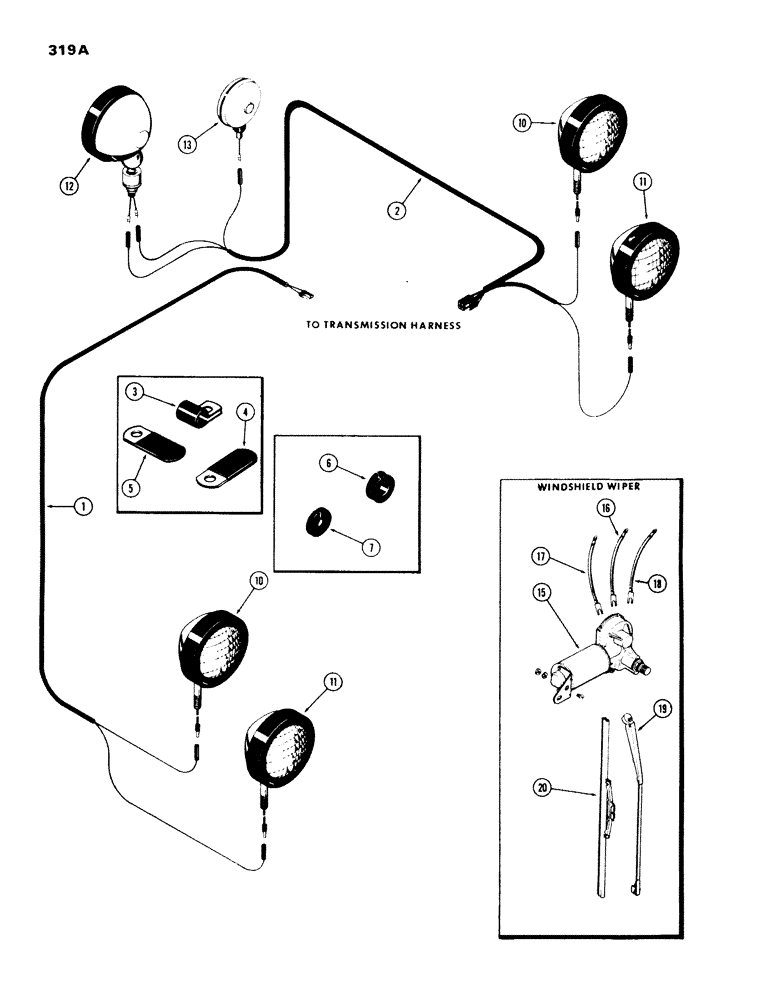

Схема запчастей Case IH 970 - (319A) - CAB, ELECTRICAL EQUIPMENT AND WIRING, FENDER HARNESS, USED PRIOR TO TRAC. SER.NO. 8675001 (09) - CHASSIS/ATTACHMENTS
11
7
4
1
15
3
16
10
17
10
5
18
20
13
11
12
6
19
2

Артикул

Название

Примечание

Количество

1

A59708

HARNESS

- fender wire, R.H.

1шт.

2

A61146

HARNESS

- fender wire, L.H.

1шт.

3

49885

CLAMP

CLIP - wire harness

4шт.

4

A22883

CLIP

- fender harness

2шт.

5

A37179

CLIP

- fender harness

2шт.

6

A61144

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

- cab fender

1шт.

7

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- cab front frame

2шт.

10

A59701

LAMP

- front head driving (See Figure 103B)

2шт.

11

A59723

LAMP

- front cultivator (See Figure 105)

2шт.

12

A59703

LAMP

- rear flood and tail (See Figure 105B)

1шт.

13

A34853

LAMP

- flasher (See Figure 103)

1шт.

A42692

MOTOR

ASSY. - windshield wiper, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

MOTOR - windshield wiper

1шт.

16

A42693

ELECTRICAL WIRE

WIRE - motor (green), windshield wiper

1шт.

17

A42694

ELECTRICAL WIRE

WIRE - motor (blue), windshield wiper

1шт.

18

A42695

ELECTRICAL WIRE

WIRE - motor (orange), windshield wiper

1шт.

19

T41946

ARM

- windshield wiper

1шт.

20

A42580

WIPER BLADE,203.2mm L

BLADE - windshield wiper

1шт.

Выбрано товаров: 18
