Запчасти Case IH 970 (316) - CAB, ELECTRICAL EQUIPMENT & WIRING, PLENUM, BETTENDORF (09) - CHASSIS/ATTACHMENTS

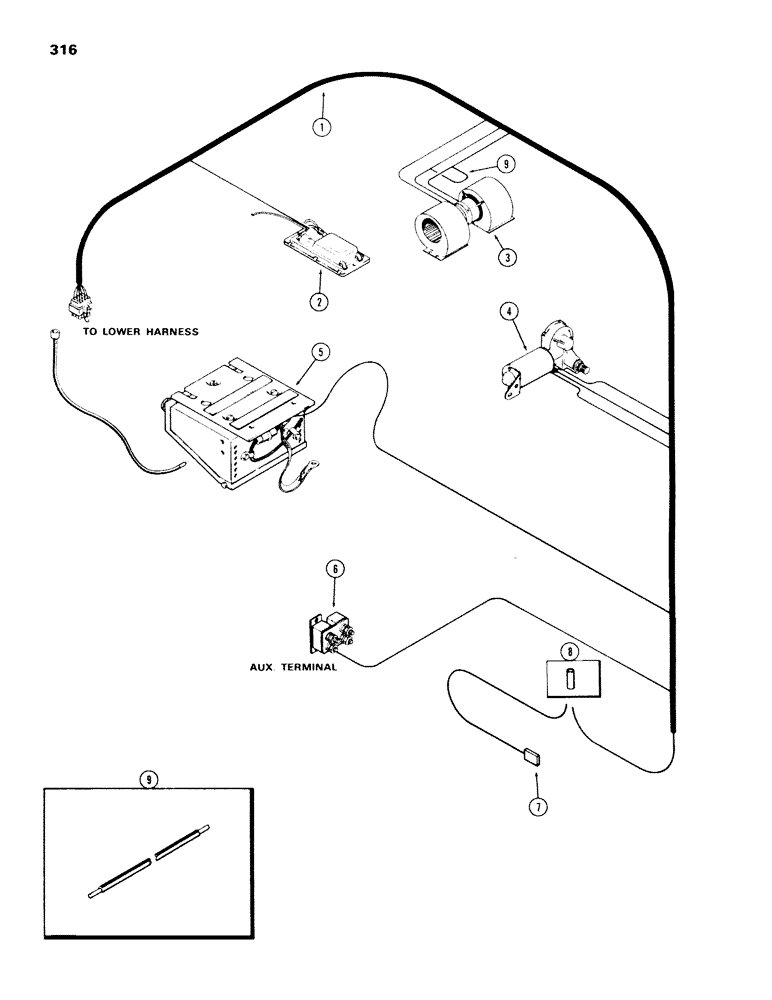

Схема запчастей Case IH 970 - (316) - CAB, ELECTRICAL EQUIPMENT & WIRING, PLENUM, BETTENDORF (09) - CHASSIS/ATTACHMENTS
2
6
7
4
1
5
9
3
8
9

Артикул

Название

Примечание

Количество

1

F63281

HARNESS

ASSY. - plenum wire

1шт.

2

A42658

INTERIOR LIGHT

LIGHT - dome

1шт.

3

NSS

NOT SOLD SEPARAT

BLOWER ASSY. - cab air (See Figure 321)

1шт.

4

A42692

MOTOR

ASSY. - windshield wiper (See Figure 319)

1шт.

5

A62456

RADIO

KIT - (See Figure 319)

1шт.

6

A59704

BREAKER

- circuit, auxillary terminal

1шт.

7

A42931

ELECTRICAL WIRE

WIRE - harness to air cond. thermostat (See Figure 327)

1шт.

8

A42671

CONNECTOR, ELEC

CONNECTOR - wire, solderless

4шт.

9

A42652

ELECTRICAL WIRE

WIRE - resister, blower speed adjust, wire is color coded white, orange and purple and is connected between the white and brown 16" harness wires.

1шт.

Выбрано товаров: 9
