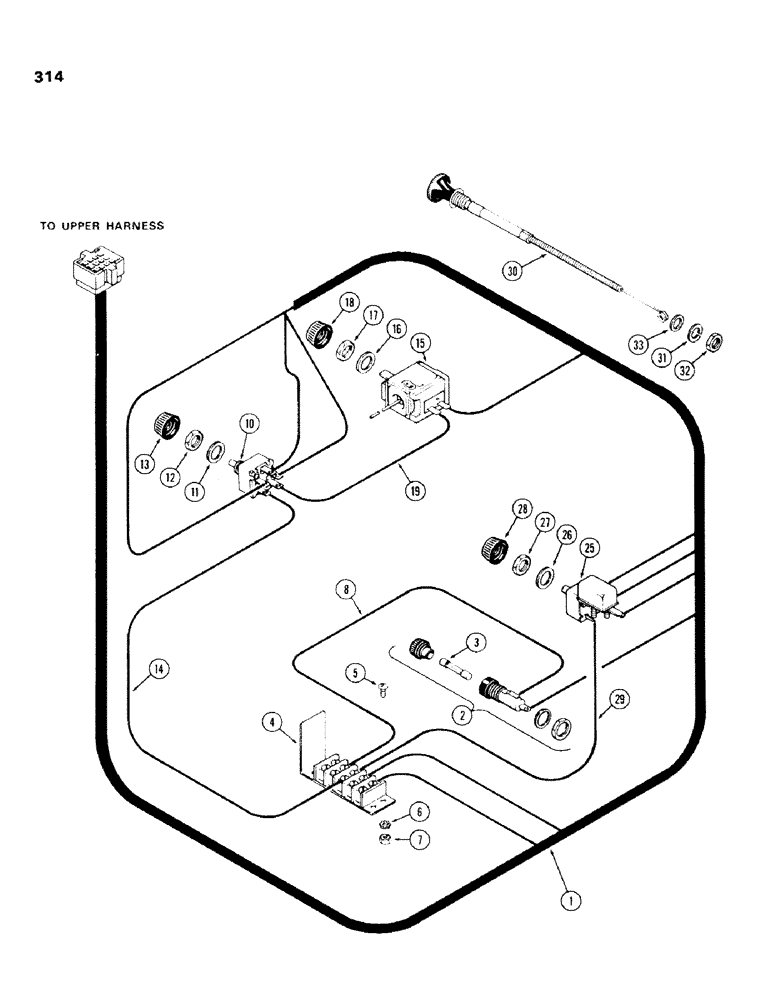

Запчасти Case IH 970 (314) - CAB, CONTROLS & WIRING, WITH AIR CONDITIONER, BETTENDORF (09) - CHASSIS/ATTACHMENTS

1

F63300

HARNESS

ASSY. - instrument panel wire

1шт.

2

A22874

HOLDER

- panel fuse

1шт.

3

223-20

FUSE,20 Amp, Type SFE

- 20 amp

1шт.

4

A42511

BLOCK

- terminal

1шт.

F63172

CONNECTOR - terminal block

1шт.

5

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

- #8 x 5/8" N.C. rd. hd. mach.

2шт.

6

193-5

LOCK WASHER,Ext Tooth, #8

WASHER - Shakeproof, #8 ext.

2шт.

7

129-6

NUT,#8-32

2шт.

8

A42563

WIRE - panel, red (term. block to fuse holder)

1шт.

10

A42622

SWITCH

- blower

1шт.

11

B51614

WASHER

- 1/2 x 3/4 x 1/32" fiber

1шт.

12

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- 7/16" N.F. hex., jam

1шт.

13

A42578

KNOB

- switch

1шт.

14

A42565

ELECTRICAL WIRE

WIRE - panel, yellow (term. block to blower switch)

1шт.

15

A42623

CONTROL

- cab temperature

1шт.

16

B51614

WASHER

- 1/2 x 3/4 x 1/32" fiber

1шт.

17

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- 7/16" N.F. hex., jam

1шт.

18

A42578

KNOB

- switch

1шт.

19

A42624

ELECTRICAL WIRE

WIRE - panel, black (blower switch to temp. control)

1шт.

25

A42660

SWITCH

- wiper motor

1шт.

26

B51614

WASHER

- 1/2 x 3/4 x 1/32" fiber

1шт.

27

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- 7/16" N.F. hex., jam

1шт.

28

A42578

KNOB

- switch

1шт.

29

A42564

WIRE - panel, green (term. block to wiper switch)

1шт.

30

A42614

CABLE

- heater control, Includes: Ref. 31 and 32

1шт.

31

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

32

129-148

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.C. hex., jam

1шт.

33

B51618

WASHER

- 3/8 x 9/16 x 1/32" fiber

1шт.
