Запчасти Case IH 970 (313A) - CAB, CONTROLS & WIRING, WITH OUT AIR CONDITIONER, HINSON (09) - CHASSIS/ATTACHMENTS

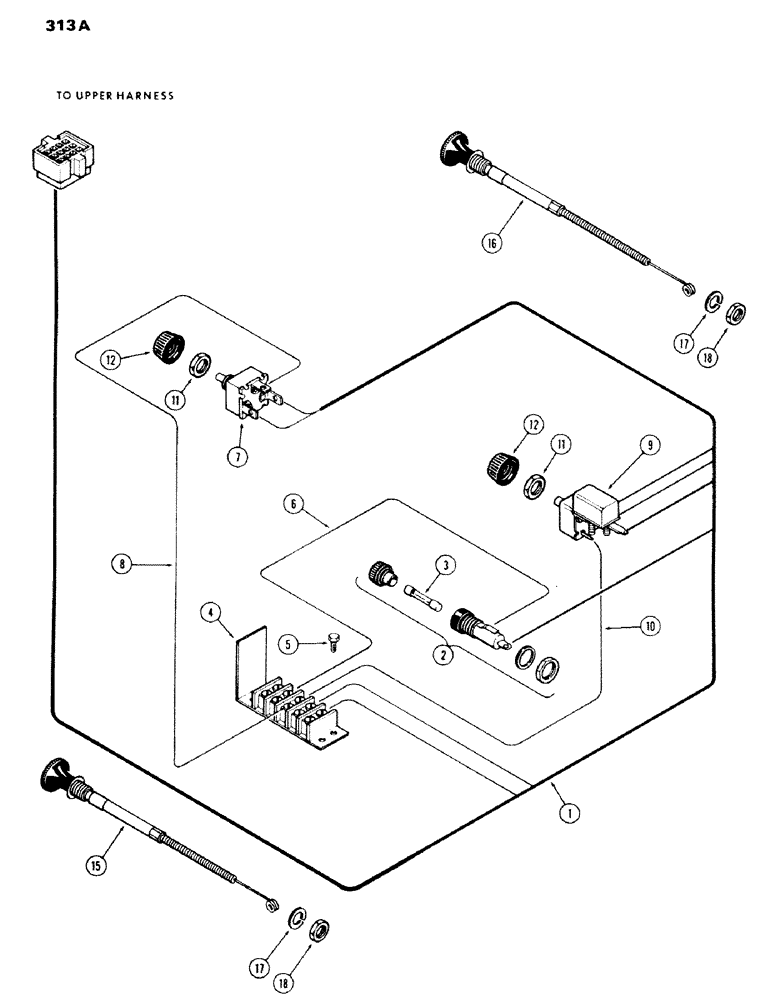

Схема запчастей Case IH 970 - (313A) - CAB, CONTROLS & WIRING, WITH OUT AIR CONDITIONER, HINSON (09) - CHASSIS/ATTACHMENTS
3
17
5
12
8
18
16
4
11
17
1
10
7
9
12
18
11
6
15

Артикул

Название

Примечание

Количество

1

A42583

HARNESS ASSY. - instrument panel wire

1шт.

2

A8006

NOZZLE HOLDER

HOLDER - panel fuse

1шт.

3

223-20

FUSE,20 Amp, Type SFE

- 20 amp

1шт.

4

A42511

BLOCK

- wiring, terminal

1шт.

5

187-1052

SELF-TAP SCREW,Sltd Pan, Hd, #8 x 5/8"

SCREW - #8 x 5/8" sltd. pan hd.

2шт.

6

A42563

WIRE - panel, red

1шт.

7

A42566

SWITCH

- blower

1шт.

8

A42565

ELECTRICAL WIRE

WIRE - panel, yellow

1шт.

9

A42660

SWITCH

- wiper motor (Replaces A42576)

1шт.

10

A42564

WIRE - panel, green

1шт.

11

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- 7/16" N.F. jam

2шт.

12

A42578

KNOB

- switch

2шт.

15

A42577

CONTROL

CABLE - defroster control (Includes: Ref. 17 and 18)

1шт.

16

A42614

CABLE

- heater control, Includes: Ref. 17 and 18

1шт.

17

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

18

129-148

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.C. half hex

1шт.

Выбрано товаров: 16
