Запчасти Case IH 970 (311E) - CAB, AIR FILTER ATTACHMENT, HINSON (09) - CHASSIS/ATTACHMENTS

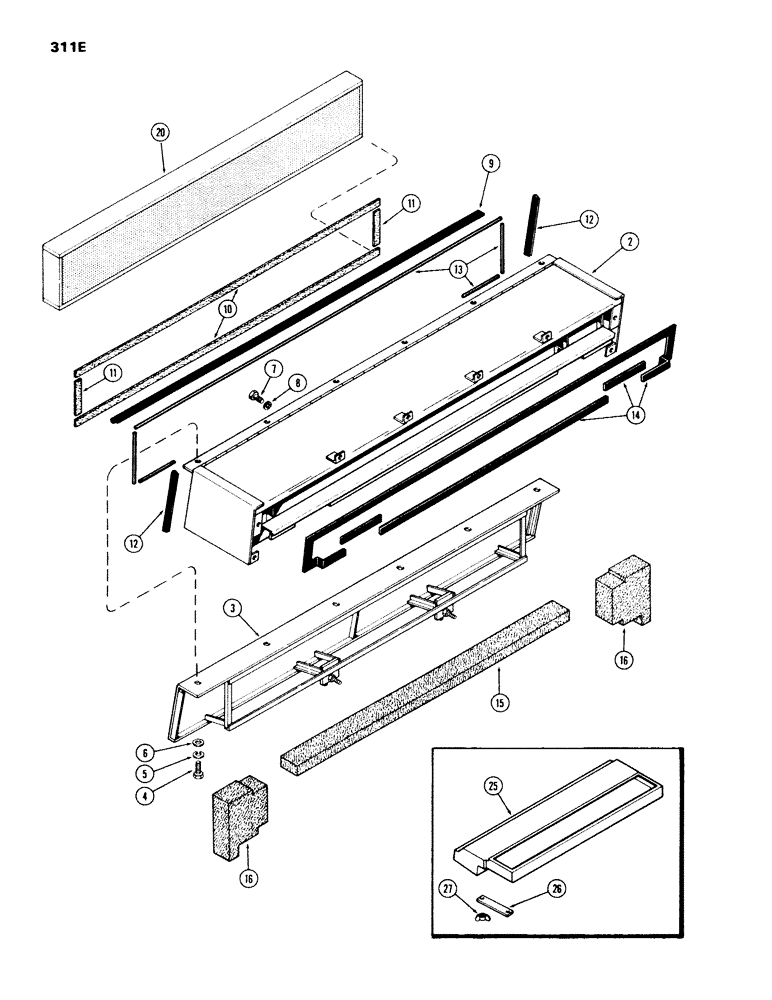

Схема запчастей Case IH 970 - (311E) - CAB, AIR FILTER ATTACHMENT, HINSON (09) - CHASSIS/ATTACHMENTS
4
7
25
5
12
3
3
10
16
26
14
11
6
8
12
16
2
11
20
9
15
27

Артикул

Название

Примечание

Количество

A62486

ATTACHMENT - rear cab air filter (Mach. Item), Includes: Ref. 2 - 16

1шт.

2

A62487

CLEANER ASSY. - cab air

1шт.

3

A62505

HOOD ASSY. - cleaner

1шт.

4

113-6

BOLT,Hex, 1/4" - 20 x 3/8", Gr 5, Full Thd

6шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

6шт.

6

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

6шт.

7

187-1030

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - 5/16 x 3/4" skpf., self-tapping

8шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

9

A62512

SEAL - hood

1шт.

10

A62513

SEAL

- filter, 1/2 x 1/8 x 38"

2шт.

11

A62514

SEAL

- filter, 1/2 x 3/16 x 4-15/16"

2шт.

12

A62515

MOULDING - cleaner

2шт.

13

345-18

BEAD - weatherseal, 3/16 x 30"

4шт.

14

345-26

BEAD - weatherseal, 3/4 x 60"

2шт.

15

A62678

FOAM - cab air sealing (top)

1шт.

16

A62679

FOAM - cab air sealing (sides)

2шт.

345-22

ADHESIVE

- seals (use w/Ref. 9 - 12)

1шт.

20

NLS

NO LONGER SERVICED

ELEMENT - filter

1шт.

25

A65701

HOUSING ASSY. - cab air filter (used to relocate air filter to outside of cab) (Mach. Item), Includes: Ref. 26 and 27

1шт.

26

NLS

NO LONGER SERVICED

- filter retaining

2шт.

27

129-404

WING NUT,1/4"-20

NUT - 1/4" N.C. wing

4шт.

Выбрано товаров: 21
