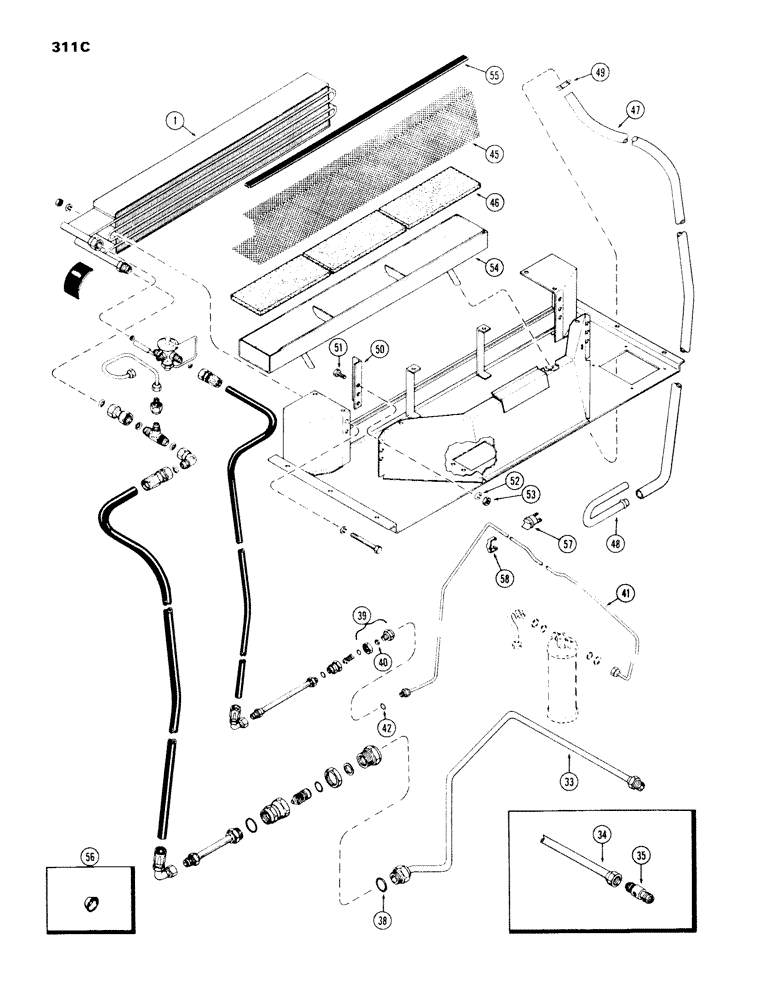

Запчасти Case IH 970 (311C) - CAB, PLENUM, WITH AIR CONDITIONER, HINSON (09) - CHASSIS/ATTACHMENTS

33

A62225

TUBE

- cab to compressor, w/union (See Figure 327) (1st used trac. ser. no. 8665014)

1шт.

34

A61213

TUBE

- cab to compressor, w/out union (See Figure 327) to trac., Serial Range: -8665014

1шт.

35

A61189

UNION - compressor tube to hose (used w/A61213 tube) to trac., Serial Range: -8665014

1шт.

38

A61197

O-RING,1.78mm Thk x 27mm ID

"O"RING - 1-3/64 x 1-3/16 x 1/16"

1шт.

39

A61196

COUPLING, BREAK AWAY

COUPLING - self sealing, Includes: Ref. 40

1шт.

40

A42667

GASKET

- coupling

1шт.

41

A61818

TUBE

-, Serial Range: receiver-cab

1шт.

42

A61195

O-RING,0.364" ID x 0.5" OD

"O"RING - 23/64 x 1/2 x 1/16"

1шт.

45

A42904

SCREEN - evaporator (not used w/heater)

1шт.

46

A42903

PAD - foam core spacer

3шт.

47

A42698

HOSE

- drip (1/2 x 5/8 x 50' roll)

1шт.

48

A42699

TUBE - drip hose

2шт.

49

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

50

A42628

FILLER - plenum, R.H., w/air conditioner

1шт.

50

A42629

FILLER - plenum, L.H., w/air conditioner

1шт.

51

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

52

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

53

9635082

NUT,5/16" - 18, Gr 5

1шт.

54

A42901

PAN - cab condensate

1шт.

55

A42905

FOAM

- core top

1шт.

56

222-993

GASKET,3/8 Tube, Fl, Copper

(#6) 3/8 Tube, Fl, Copper

1шт.

56

222-994

GASKET,1/2 Tube, Fl, Copper

- 45, #8 copper

1шт.

O

1шт.

56

222-995

SEALING WASHER,15.88mm ID

- 45, #10 copper

1шт.

O

1шт.

57

A61291

THERMOSTAT

- high temperature

1шт.

58

A61789

CLAMP

- thermostat

1шт.
