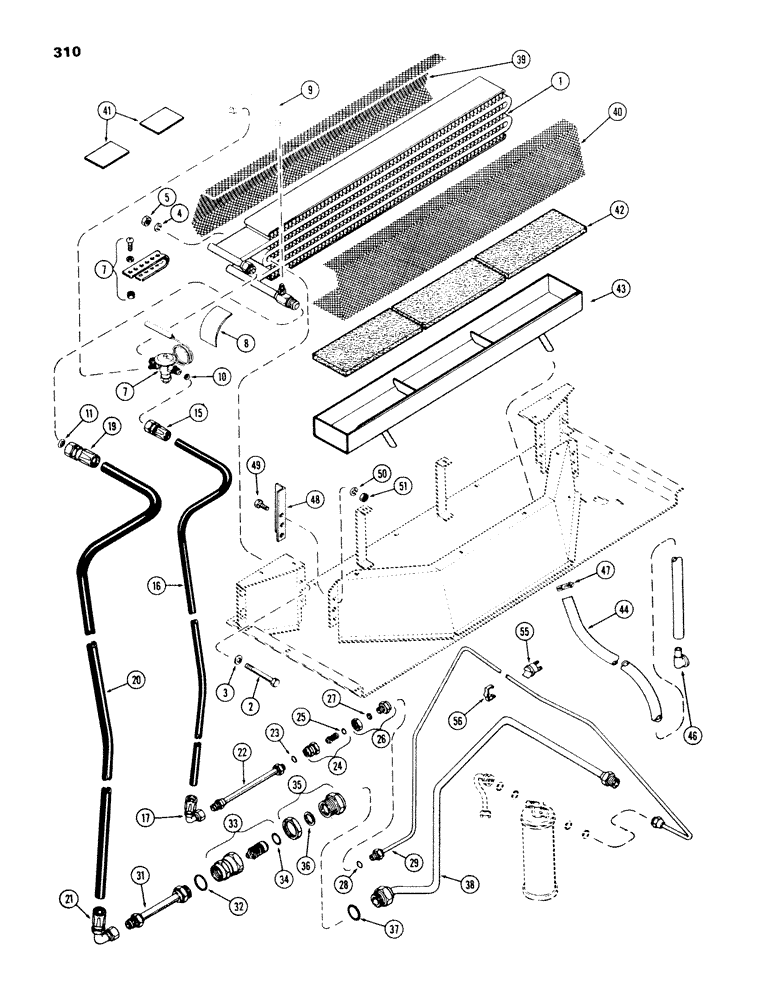

Запчасти Case IH 970 (310) - CAB, PLENUM, WITH AIR CONDITIONER, BETTENDORF (09) - CHASSIS/ATTACHMENTS

1

F89638

CORE, RADIATOR

CORE - air conditioner evaporation

1шт.

2

113-18

BOLT,Hex, 1/4" - 20 x 3-3/4", Gr 5

- 1/4 x 3-3/4" N.C. hex

3шт.

3

A30171

WASHER

- 17/64 x 1 x 1/16"

3шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

7

A42625

LOCK VALVE

VALVE - expansion

1шт.

8

NSS

NOT SOLD SEPARAT

INSULATION - valve, 2-1/2" x 10" (Order A42902)

1шт.

A42902

SEALING STRIP

INSULATION - valve (30' roll)

1шт.

9

F63178

TUBE

- equalizer

1шт.

10

222-993

GASKET,3/8 Tube, Fl, Copper

(#6) 3/8 Tube, Fl, Copper

2шт.

11

222-995

SEALING WASHER,15.88mm ID

- 45, #10 copper

1шт.

O

1шт.

15

A42651

TUBE NUT

ADAPTER - hose

1шт.

16

A42634

A/C HOSE,0.312" ID x 71.00"

0.312" ID x 71.00"

1шт.

17

A42650

ELBOW

- hose

1шт.

19

A42649

ADAPTER

- hose

1шт.

20

A42647

A/C HOSE,0.50" ID x 73.00"

0.50" ID x 73.00"

1шт.

21

A42648

ELBOW

- hose

1шт.

22

A42670

TUBE -, Serial Range: hose-coupling

1шт.

23

A61195

O-RING,0.364" ID x 0.5" OD

"O"RING - 23/64 x 1/2 x 1/16"

1шт.

24

A42663

COUPLING,1/2" - 20 NPT

COUPLING - cab half, Includes: Ref. 25

1шт.

25

A42665

O-RING,0.239" ID x 0.375" OD x 0.07"

"O"RING - coupling piston

1шт.

26

A61196

COUPLING, BREAK AWAY

COUPLING - tractor half, Includes: Ref. 27

1шт.

27

A42667

GASKET

-, Serial Range: coupling-coupling

1шт.

28

A61195

O-RING,0.364" ID x 0.5" OD

"O"RING - 23/64 x 1/2 x 1/16"

1шт.

29

A61693

TUBE -, Serial Range: receiver-cab

1шт.

31

A42669

TUBE -, Serial Range: house-coupling

1шт.

32

A61197

O-RING,1.78mm Thk x 27mm ID

"O"RING - 1-3/4 x 1-3/16 x 1/16"

1шт.

33

A42664

COUPLING, BREAK AWAY

COUPLING - cab half, Includes: Ref. 34

1шт.

34

A42666

O-RING,0.737" ID x 0.943" OD x 0.103"

"O"RING - coupling piston

1шт.

35

A61194

COUPLING, BREAK AWAY

COUPLING - tractor half, Includes: Ref. 36

1шт.

36

A42668

GASKET

-, Serial Range: coupling-coupling

1шт.

37

A61197

O-RING,1.78mm Thk x 27mm ID

"O"RING - 1-3/64 x 1-3/16 x 1/16"

1шт.

38

A62225

TUBE

-, Serial Range: cab-compressor

1шт.

39

F63181

SCREEN - evaporator, rear

1шт.

40

A42904

SCREEN - evaporator, front

1шт.

41

NSS

NOT SOLD SEPARAT

TAPE - screens, 2" wide x 3" long

2шт.

42

A42903

PAD - foam core spacer

3шт.

43

F63577

PAN

- condensate

1шт.

44

NSS

NOT SOLD SEPARAT

HOSE - drip, 75" long (Order A42698a)

2шт.

A42698

HOSE

- drip (50' roll)

1шт.

46

F63228

VALVE - drip hose

2шт.

47

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16"

2шт.

48

A42628

FILLER - plenum, R.H.

1шт.

48

A42629

FILLER - plenum, L.H.

1шт.

49

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

50

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

51

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

55

A61291

THERMOSTAT

- high temperature

1шт.

56

A61789

CLAMP

- thermostat

1шт.
