Запчасти Case IH 970 (307A) - CAB, PLENUM, WITHOUT HEATER OR AIR CONDITIONER, HINSON (09) - CHASSIS/ATTACHMENTS

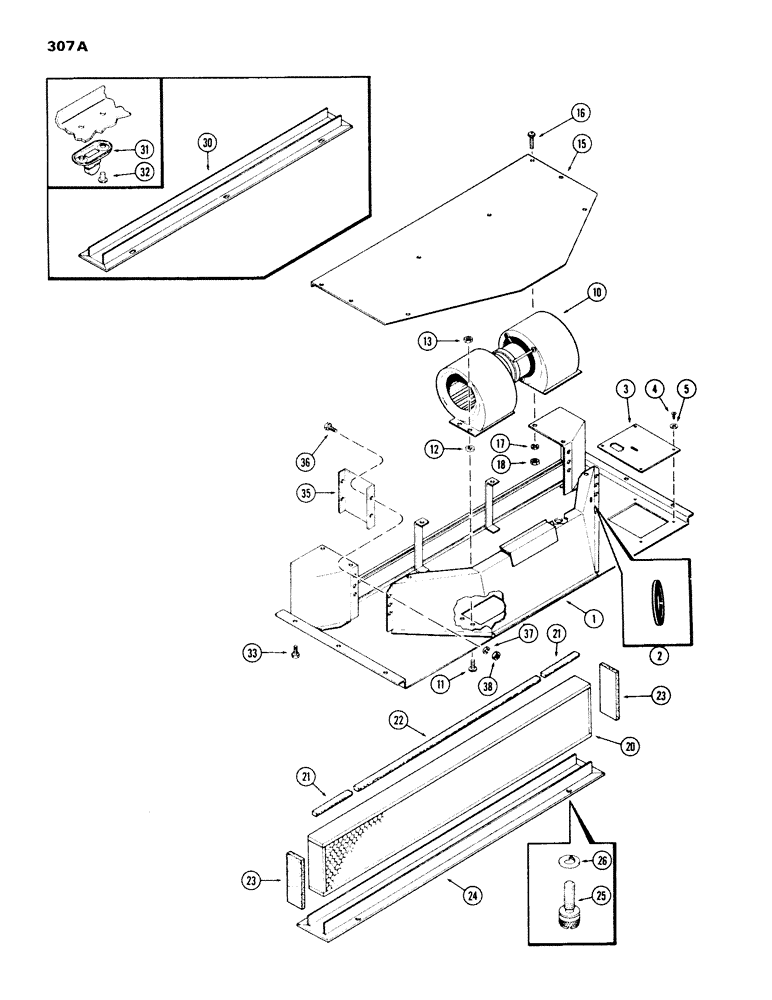

Схема запчастей Case IH 970 - (307A) - CAB, PLENUM, WITHOUT HEATER OR AIR CONDITIONER, HINSON (09) - CHASSIS/ATTACHMENTS
24
31
20
37
30
4
13
18
36
23
17
22
35
25
15
2
10
32
1
16
1
38
23
33
3
12
11
21
26
5

Артикул

Название

Примечание

Количество

1

A42673

AIR TUBE

PLENUM - cab

1шт.

2

A42502

GROMMET

1шт.

3

A42542

PANEL - plenum access

1шт.

4

187-1052

SELF-TAP SCREW,Sltd Pan, Hd, #8 x 5/8"

SCREW - #8 x 5/8" pan hd. sltd.

4шт.

5

195-104

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

10

NSS

NOT SOLD SEPARAT

BLOWER - cab (See Figure 321)

1шт.

11

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

- 1/4-20 x 1/2" sltd. truss hd.

4шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

15

A42672

COVER - plenum

1шт.

16

175-400

SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

- 1/4-20 x 1/2" slotted truss hd.

8шт.

17

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

18

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

20

A42573

FILTER

- air

1шт.

21

NSS

NOT SOLD SEPARAT

MOLDING - cab, 5" (Order A42905)

2шт.

22

NSS

NOT SOLD SEPARAT

MOULDING - cab, 30" (Order A42905)

1шт.

23

A42909

MOULDING - cab, 6"

2шт.

24

A42655

DOOR - filter (1st used cab serial no. C1000)

1шт.

25

A42656

SCREW ASSY. - door (used w/A42655 door), Includes: Ref. 26

4шт.

26

A61045

RETAINER

WASHER - retainer (used w/A42655 door)

4шт.

30

A42551

DOOR - filter to cab, Serial Range: -C1000

1шт.

31

A42501

BUTTON - door (used w/A42551 door)

6шт.

32

151-526

RIVET,Pop, 1/8" x .337"

(Used w/A42501 button) Pop, 1/8" x .337"

12шт.

33

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- #10 x 3/4" N.C. rd. hd. mach.

6шт.

35

A42532

FILLER - plenum, R.H. and L.H., w/o heater and air conditioner

2шт.

36

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

37

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

38

9635082

NUT,5/16" - 18, Gr 5

1шт.

Выбрано товаров: 28
