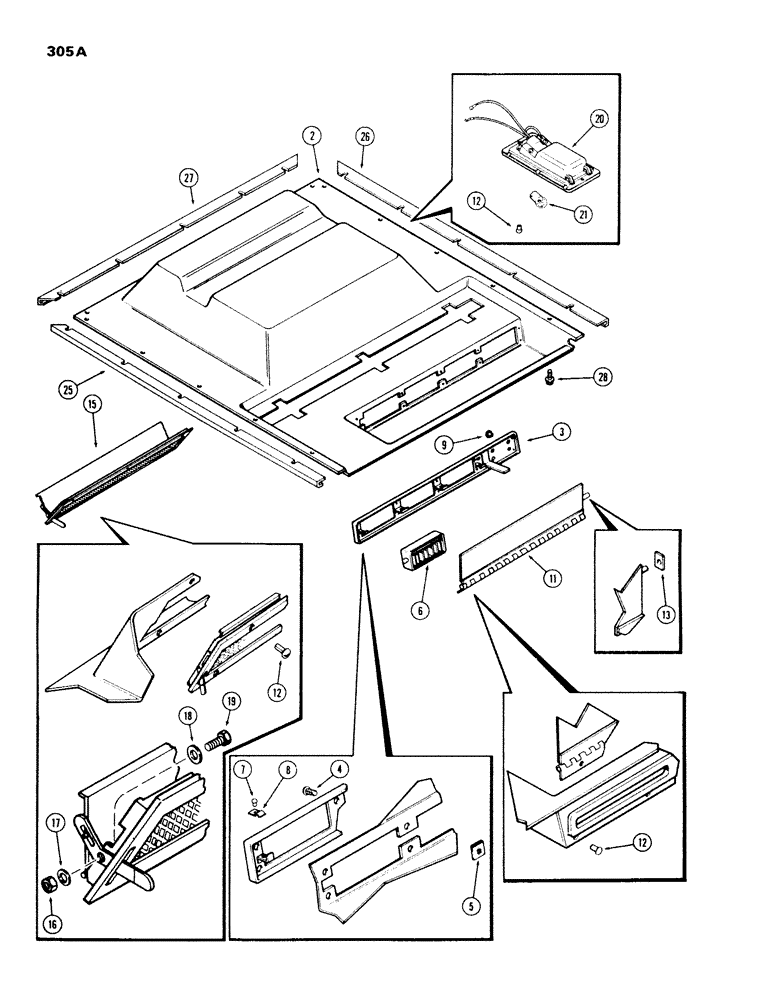

Запчасти Case IH 970 (305A) - CAB, HEADLINER, HINSON (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

HEADLINER ASSY. - cab, Includes: Ref. 2 - 21

1шт.

2

A42533

HEADLINER - cab (molded)

1шт.

3

A42552

PANEL - instrument (Replaces A42641)

1шт.

4

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- #10 x 3/4" N.C. rd. hd.

10шт.

5

131-861

SPRING NUT,Tinn, U, #10-24

10шт.

6

A42574

DEFLECTOR

- panel air

3шт.

7

NSS

NOT SOLD SEPARAT

RIVOT - pop, air deflector

6шт.

8

A42575

CLIP

- air deflector

6шт.

9

353-403

PLUG,Dome, .437" hole, Nylon

Panel (Used w/o heater) Dome, .437" hole, Nylon

2шт.

11

A42550

DEFLECTOR - defroster

1шт.

12

151-526

RIVET,Pop, 1/8" x .337"

12шт.

13

131-624

NUT

- 3/16 tinnerman speed

1шт.

15

A42690

AIR RETURN - headliner (Replaces A42547), Includes: Ref. 16 - 21

1шт.

16

131-48

LOCK NUT,1/4"-20, GB

NUT - 1/4" N.C. hex., lock

1шт.

17

A42691

WASHER - spring

1шт.

18

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

19

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

20

A42658

INTERIOR LIGHT

LIGHT - dome (Replaces A42503)

1шт.

21

A41742

BULB

- dome light

1шт.

25

A42686

ORNAMENTAL STRIP

TRIM - headliner, R.H. (Replaces A42540)

1шт.

26

A42687

ORNAMENTAL STRIP

TRIM - headliner, L.H. (Replaces A42541)

1шт.

27

A42685

ORNAMENTAL STRIP

TRIM - headliner, rear (Replaces A42538)

1шт.

28

NLS

NO LONGER SERVICED

- #10 x 9/16" hex. hd. tapping, w/washer

19шт.
