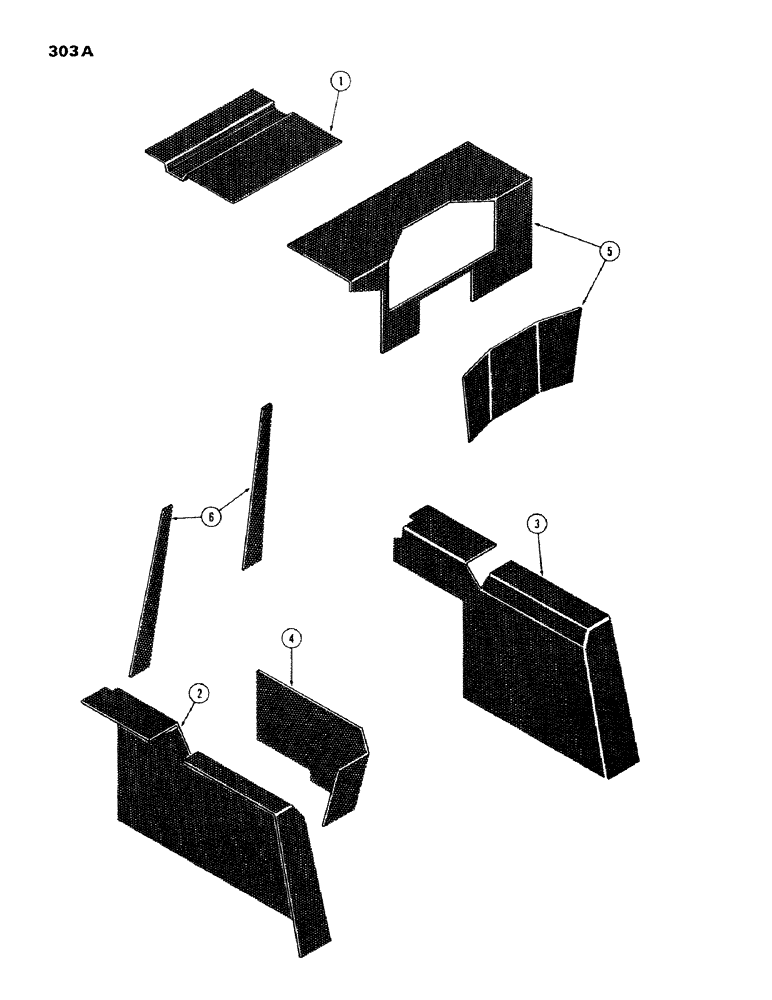

Запчасти Case IH 970 (303A) - CAB, ACOUSTICAL COVERS, HINSON (09) - CHASSIS/ATTACHMENTS

1

A42537

COVER

- headliner, acoustical, to be attached with adhesive 345-22

1шт.

2

A42602

COVER

- fender panel, R.H. acoustical, to be attached with adhesive 345-22

1шт.

3

A42603

COVER - fender panel, L.H. acoustal, to be attached with adhesive 345-22

1шт.

4

A61141

PROTECTIVE COVER

COVER - console, acoustical, to be attached with adhesive 345-22

1шт.

5

A61142

COVER

- fuel tank, acoustical, to be attached with adhesive 345-22 (Order A65426) (See Figure 303)

1шт.

6

A42536

FILLER - cab corner, rear acoustical, to be attached with adhesive 345-22

2шт.
