(300) - INSULATION, FIREWALL

Запчасти Case IH 970 (300) - INSULATION, FIREWALL (09) - CHASSIS/ATTACHMENTS

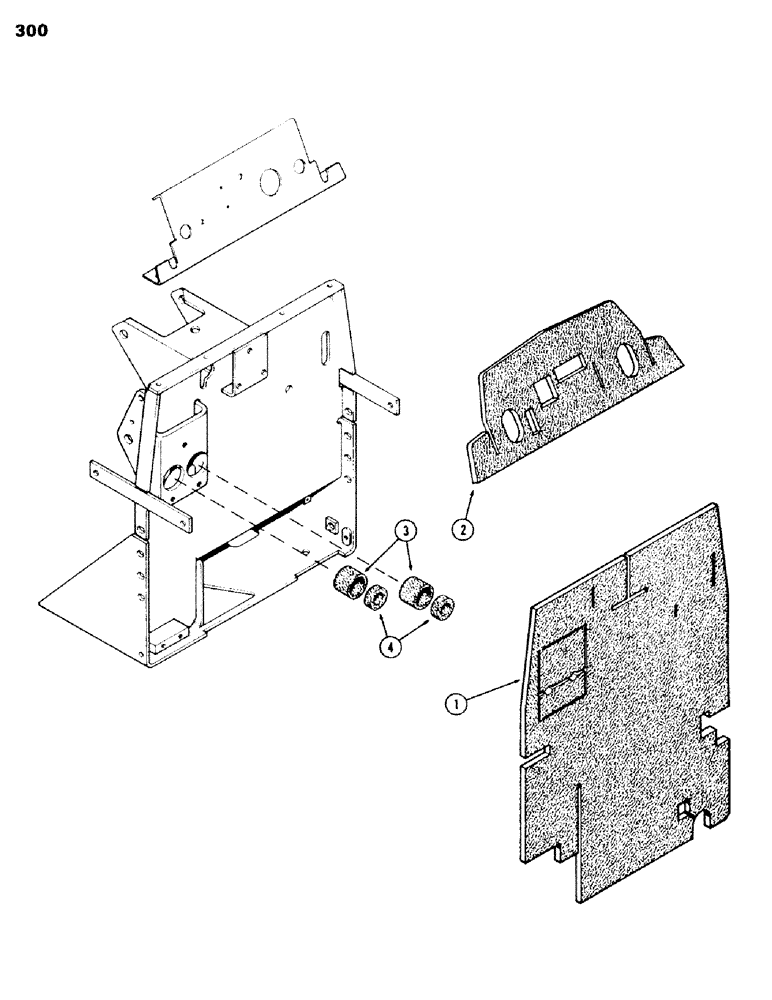

Схема запчастей Case IH 970 - (300) - INSULATION, FIREWALL (09) - CHASSIS/ATTACHMENTS
4
3
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A62531

PAD

- acoustical firewall (Replaces A60816), to be attached with adhesive 345-22

1шт.

2

A60817

CUSHION

PAD - acoustical firewall baffle, to be attached with adhesive 345-22

1шт.

3

A61288

COLLAR

- master cylinder air seal, outer

2шт.

4

A61287

COLLAR

- master cylinder air seal, inner

2шт.

Выбрано товаров: 4
