Запчасти Case IH 970 (298) - INSULATION, PLATFORM (09) - CHASSIS/ATTACHMENTS

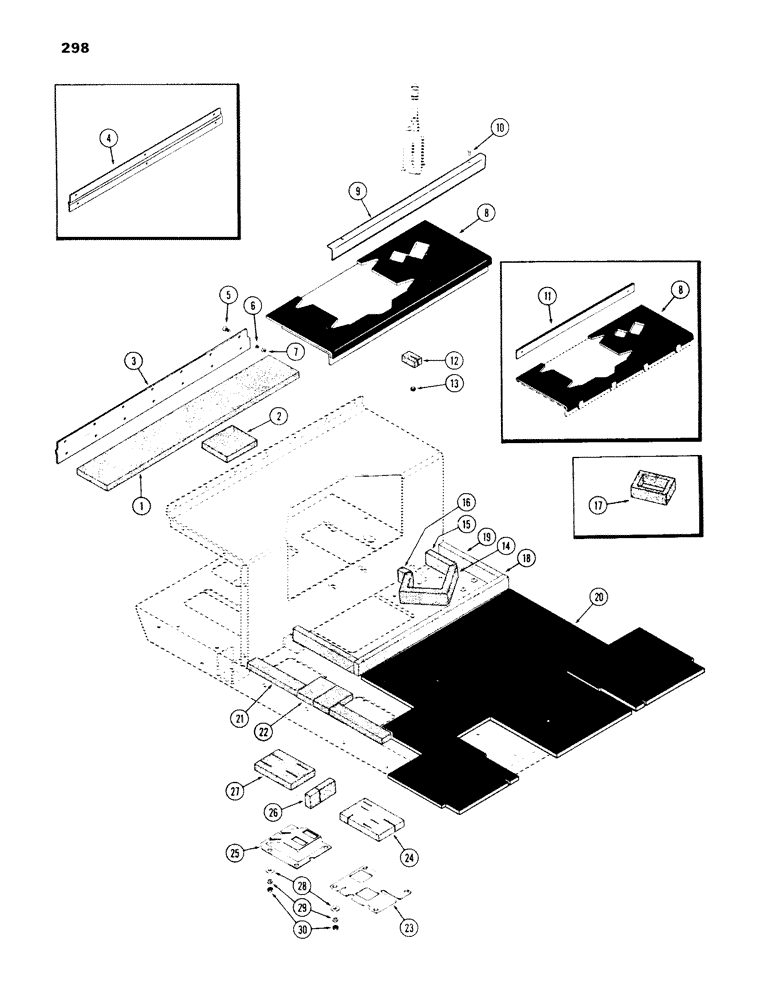

Схема запчастей Case IH 970 - (298) - INSULATION, PLATFORM (09) - CHASSIS/ATTACHMENTS
2
23
9
24
19
21
12
5
7
20
17
8
15
16
10
25
6
18
8
3
14
22
26
28
30
27
29
13
11
4
1

Артикул

Название

Примечание

Количество

1

A61699

SEAL

- fuel tank sealing, to be attached with adhesive 345-22

1шт.

2

A62594

FOAM

- fuel tank, top groove, to be attached with adhesive 345-22

1шт.

3

A62688

PLATE

- cab to fuel tank cover (1st used trac. ser. no. 8675001)

1шт.

4

A60867

PLATE

- cab to fuel tank cover to trac., Serial Range: -8675001

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

14шт.

6

92-5

LOCK WASHER,5/16"

14шт.

9635082

NUT,5/16" - 18, Gr 5

14шт.

8

A60821

MAT - floor, rear, to be attached with adhesive 345-22

1шт.

9

A62461

FLOOR

ANGLE - floor mat retaining (Replaces A60822) (1st used trac. ser. no. 86750010

1шт.

10

187-1060

SELF-TAP SCREW,Sltd Hex Hd, 1/4" x 3/4"

SCREW - 1/4 x 3/4" sltd. self-drill and tap

2шт.

11

A60822

RETAINER - floor mats (Order A62461) to trac., Serial Range: -8675001

1шт.

12

A60819

FOAM

- sealing, hand brake, to be attached with adhesive 345-22

1шт.

13

A60818

GROMMET

- hand brake wire

1шт.

14

A62674

FOAM

- hand brake sealing (Replaces A60829), to be attached with adhesive 345-22

1шт.

15

A62675

FOAM

- hand brake sealing (Replaces A60829), to be attached with adhesive 345-22

1шт.

16

A62676

FOAM - hand brake sealing (Replaces A60829), to be attached with adhesive 345-22

1шт.

17

A60829

FOAM - hand brake sealing (1 piece) (Order 1-A62674, 1-A62675 and 1-A62676)

1шт.

18

A60828

FOAM

- seat support sealing, front

1шт.

19

A60827

FOAM

- seat support sealing, sides

2шт.

20

A60820

MAT

- floor, front, to be attached with adhesive 345-22

1шт.

21

A60814

FOAM

- sealing, console bottom, to be attached with adhesive 345-22

2шт.

22

A60815

FOAM

- sealing, console bottom, to be attached with adhesive 345-22

2шт.

23

A60810

COVER ASSY. - console, front, Includes: Ref. 24

1шт.

24

A60812

FOAM

- sealing, cover, to be attached with adhesive 345-22

1шт.

25

A61088

COVER ASSY. - console, rear, Includes: Ref. 26 and 27

1шт.

26

A60807

FOAM

- sealing, cover front, to be attached with adhesive 345-22

1шт.

27

A61090

FOAM

- sealing, cover top, to be attached with adhesive 345-22

1шт.

28

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

8шт.

29

92-5

LOCK WASHER,5/16"

8шт.

30

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

8шт.

Выбрано товаров: 30
