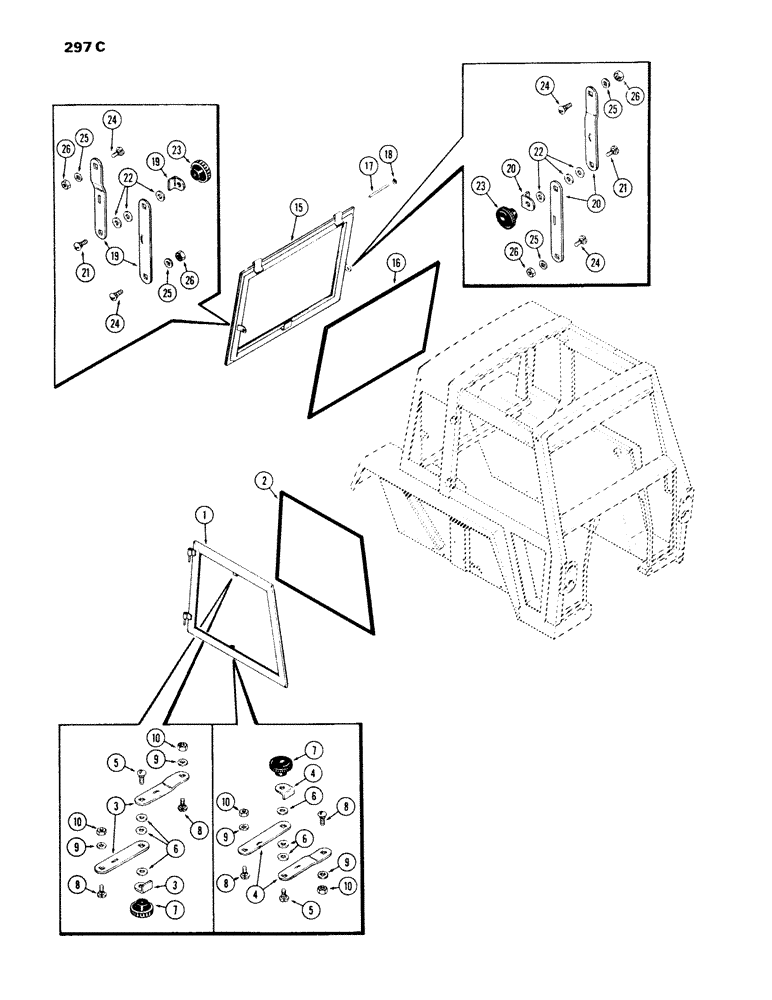

Запчасти Case IH 970 (297C) - CAB, WINDOWS, BETTENDORF (09) - CHASSIS/ATTACHMENTS

1

F89672

WINDOW

ASSY. - R.H., Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

WEATHERSTRIP - window, 134-5/8" (Order A42504)

1шт.

A42504

TYRE/TIRE

WEATHERSTRIP - window (50' roll)

1шт.

3

A42926

ARM

ASSY. - window, upper (Includes: Ref. 5 - 7)

1шт.

4

A42927

ARM

ASSY. - window, lower, Includes: Ref. 5 - 7

1шт.

5

A42923

CARRIAGE BOLT

BOLT - 5/16 x 7/8" N.C. carr

1шт.

6

F63299

WASHER

- friction

3шт.

7

A42918

KNOB

- regulator

1шт.

8

A42923

CARRIAGE BOLT

BOLT - 5/16 x 7/8" N.C. carr

4шт.

9

195-80

WASHER - 3/8 x 1-1/8 x 1/16"

4шт.

10

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" N.C. hex., lock

4шт.

15

F89665

WINDOW ASSY. - rear, Includes: Ref. 16

1шт.

16

NSS

NOT SOLD SEPARAT

WEATHERSTRIP - window, 150-17/64" (Order A42504)

1шт.

A42504X

FILLING STRIP

WEATHERSTRIP - window (50" roll)

1шт.

17

A42524

PIN,9.53mm OD x 119.38mm L

- rear window hinge

2шт.

18

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.

19

F63203

ARM

ASSY. - rear window, R.H. (Includes: Ref. 21 and 22)

1шт.

20

F63280

ARM

ASSY. - rear window, L.H., Includes: Ref. 21 and 22

1шт.

21

A42923

CARRIAGE BOLT

BOLT - 5/16 x 7/8" N.C. carr

1шт.

22

F63299

WASHER

- friction

3шт.

23

A42918

KNOB

- regulator

2шт.

24

A42923

CARRIAGE BOLT

BOLT - 5/16 x 7/8" N.C. carr

4шт.

25

195-80

WASHER - 3/8 x 1-1/8 x 1/16"

4шт.

26

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" N.C. hex. lock

4шт.
