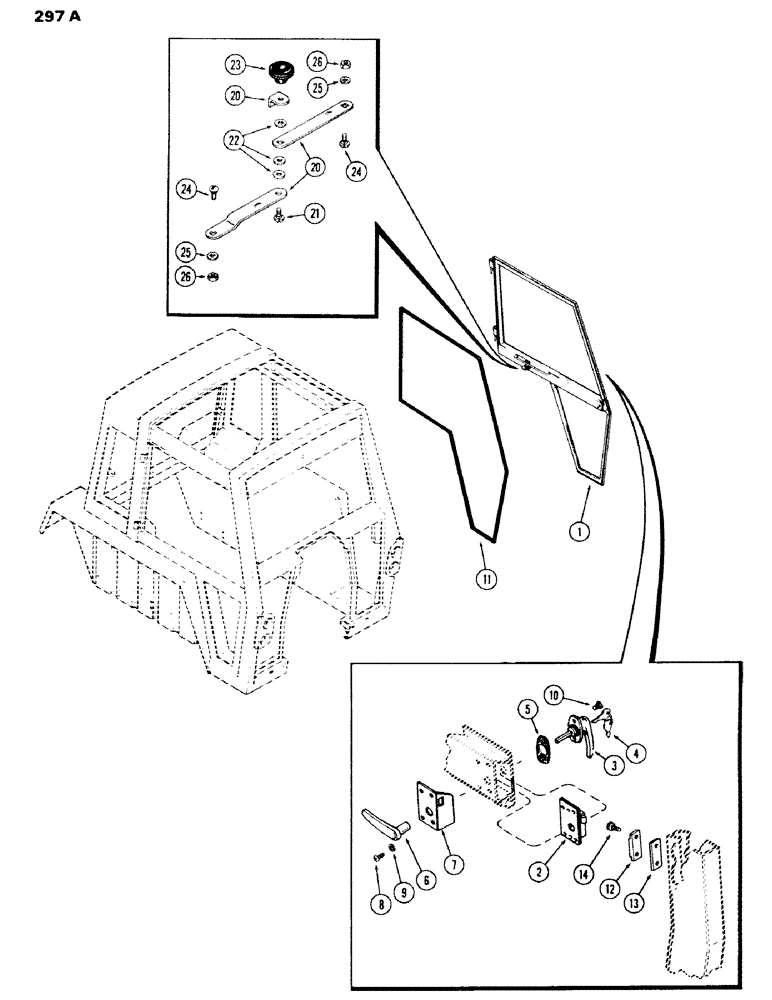

Запчасти Case IH 970 (297A) - CAB, DOOR, HINSON (09) - CHASSIS/ATTACHMENTS

1

F89671

DOOR

ASSY. - cab, Includes: Ref. 2 - 26

1шт.

2

F89710

LOCK

- cab

1шт.

3

A42572

HANDLE

- door, locking, Includes: Ref. 4

1шт.

4

A42653

SET OF 2 KEYS

KEY - cab door

2шт.

5

A42913

GASKET

- door handle

1шт.

6

F63925

HANDLE

- door, inside (Replaces A42588)

1шт.

7

A42674

COVER

- door latch (Replaces A42522)

1шт.

8

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- #10 x 1/2" N.F. rd. hd.

4шт.

9

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

10

179-153

SCREW,Cross Oval Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" oval hd.

2шт.

11

NSS

NOT SOLD SEPARAT

WEATHERSTRIP - door striker (Replaces A42581)

1шт.

13

A42696

SHIM

- door latch

3шт.

14

193-535

SCREW,SEMS, Slot Flt Hd, 1/4"-20 x 3/4"

- 1/4 x 3/4" N.C. slotted flat hd. sems

2шт.

15

F89790

WINDOW

ASSY. - rear (Replaces F89665)

1шт.

20

A42927

ARM

ASSY. - door, Includes: Ref. 21 - 23

3шт.

21

A42923

CARRIAGE BOLT

BOLT - 5/16 x 7/8" N.C. carr

1шт.

22

F63299

WASHER

- friction

3шт.

23

A42918

KNOB

- regulator

1шт.

24

A42923

CARRIAGE BOLT

BOLT - 5/16 x 7/8" N.C. carr

2шт.

25

195-103

WASHER,5/16"

- 3/8 x 7/8 x 3/32"

2шт.

26

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" N.C. hex. lock

2шт.
