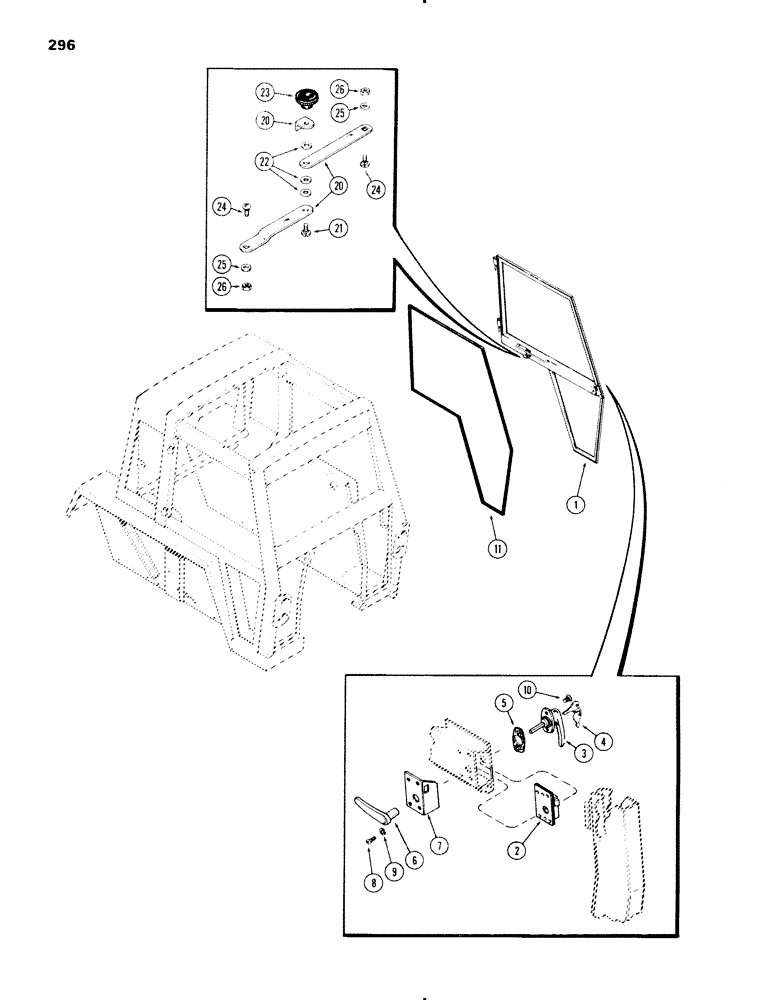

Запчасти Case IH 970 (296) - CAB, DOOR, BETTENDORF (09) - CHASSIS/ATTACHMENTS

1

F89671

DOOR

ASSY. - cab, Includes: Ref. 2 - 11

1шт.

2

F89710

LOCK

- door

1шт.

3

A42572

HANDLE

- door, locking, Includes: Ref. 4

1шт.

4

A42653

SET OF 2 KEYS

KEYS - door locking

2шт.

5

A42913

GASKET

- door handle

1шт.

6

F63925

HANDLE

- door, inside (Replaces A42588)

1шт.

7

A42674

COVER

- door latch

1шт.

8

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- #10 x 1/2" N.F. rd. hd.

4шт.

9

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

10

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

- #10 x 5/8" N.C. Phillips

2шт.

11

NSS

NOT SOLD SEPARAT

WEATHERSTRIP - door, 180-1/2" (Order A42504)

1шт.

A42504X

FILLING STRIP

WEATHERSTRIP - door (50' roll)

1шт.

20

F63203

ARM

ASSY. - door, Includes: Ref. 21 and 22

1шт.

21

A42923

CARRIAGE BOLT

BOLT - 5/16 x 7/8" N.C. carr

1шт.

22

F63299

WASHER

- friction

3шт.

23

A42918

KNOB

- regulator

1шт.

24

A42923

CARRIAGE BOLT

BOLT - 5/16 x 5/8" N.C. carr

2шт.

25

195-80

WASHER - 3/8 x 1-1/8 x 1/16"

2шт.

26

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16" N.C. hex., lock

2шт.
