Запчасти Case IH 970 (292) - CAB, UPPER SHEET METAL, BETTENDORF (09) - CHASSIS/ATTACHMENTS

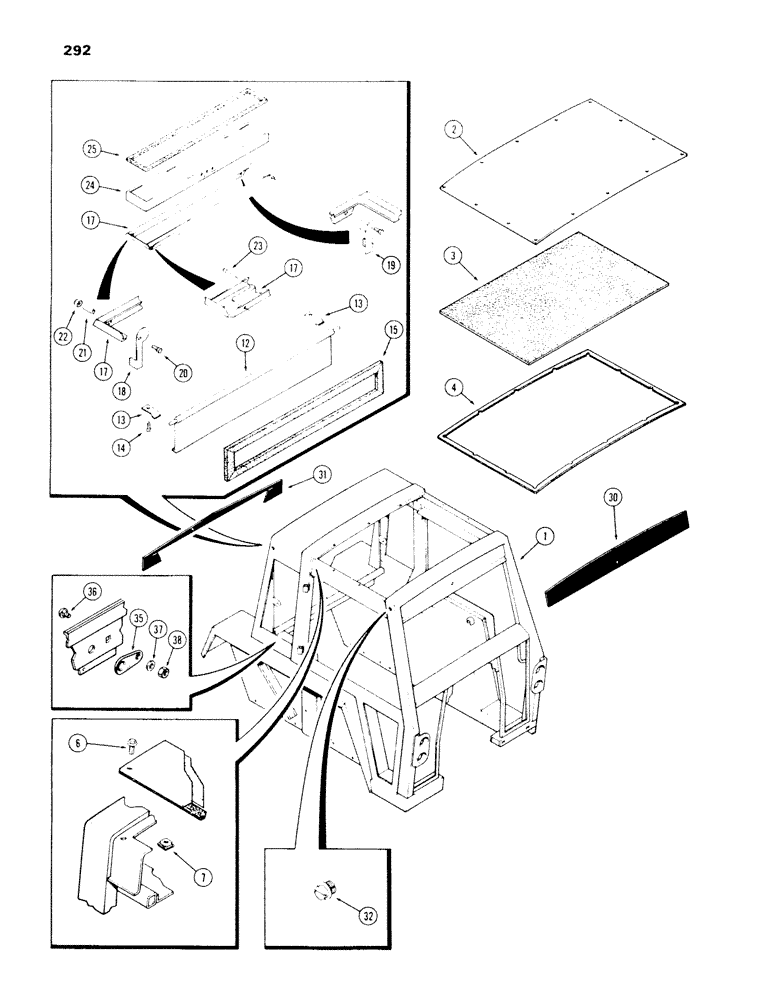

Схема запчастей Case IH 970 - (292) - CAB, UPPER SHEET METAL, BETTENDORF (09) - CHASSIS/ATTACHMENTS
17
17
25
15
7
13
31
38
35
19
13
14
17
24
1
30
6
37
12
22
36
23
2
4
20
3
21
32
18

Артикул

Название

Примечание

Количество

A62790

CAB - w/o heater or air conditioner (Mach. Item) (1st used trac. ser. no. 8676652)

1шт.

A62791

CAB - w/air conditioner (Mach. Item) (1st used trac. ser. no. 8676652)

1шт.

A62792

CAB - w/heater (Mach. Item) (1st used trac. ser. no. 8676652)

1шт.

A62793

CAB - w/air conditioner and heater (Mach. Item) (1st used trac. ser. no. 8676652)

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSY. - cab

1шт.

2

F63721

PANEL

ROOF ASSY. - cab (Replaces F63196)

1шт.

3

F63722

FOAM

- roof temperature barrier (Replaces F63221)

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - roof, 1/4 x 3/8" (Order A42676)

1шт.

A42676

SEAL

- roof (25" roll)

1шт.

6

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

- 1/4 x 1" N.C. hex. washer hd. mach.

18шт.

7

131-617

NUT,Ret, J, 1/4"-20

- 1/4" "J" Type Tinnerman

18шт.

12

F89643

VALVE

ASSY. - pressure adjusting (Order F89764)

1шт.

13

F63260

CLIP

- valve hinge

2шт.

14

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10 x 1/2" Phillips hd., self-tapping

2шт.

15

NSS

NOT SOLD SEPARAT

SEAL - valve, 1/8 x 1/2 x 16-1/2" (Order A42905)

1шт.

A42905

FOAM

SEAL - valve (50" roll)

1шт.

17

F89645

PLATE

ASSY. - filter inlet

1шт.

18

F63267

CAM - latch, R.H.

1шт.

19

F63266

LATCH

CAM - latch, L.H.

1шт.

20

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

21

T32262

SPACER - cam bolt

2шт.

22

86625061

NUT,1/4"-20, GB

NUT - 1/4" N.C. hex., lock

2шт.

23

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10 x 1/2" Phillips hd., self-tapping

7шт.

24

NLS

NO LONGER SERVICED

- air intake

1шт.

25

F63197

SEAL - filter, 1/4 x 3/4 x 90-13/64" (Order 2-F63331 and 2-F63332)

1шт.

30

A42582

DECAL

- front panel

1шт.

31

321-1915

DECAL - rear crown

1шт.

32

353-550

PLUG,Slotted, 1/2"-13

Plastic, In lifting holes Slotted, 1/2"-13

4шт.

35

F12598

PLATE

COVER - utility

1шт.

36

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT - 1/4 x 1/2" N.C. carr

1шт.

37

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

38

131-171

NUT - 1/4" N.C. Essna

1шт.

Выбрано товаров: 32
