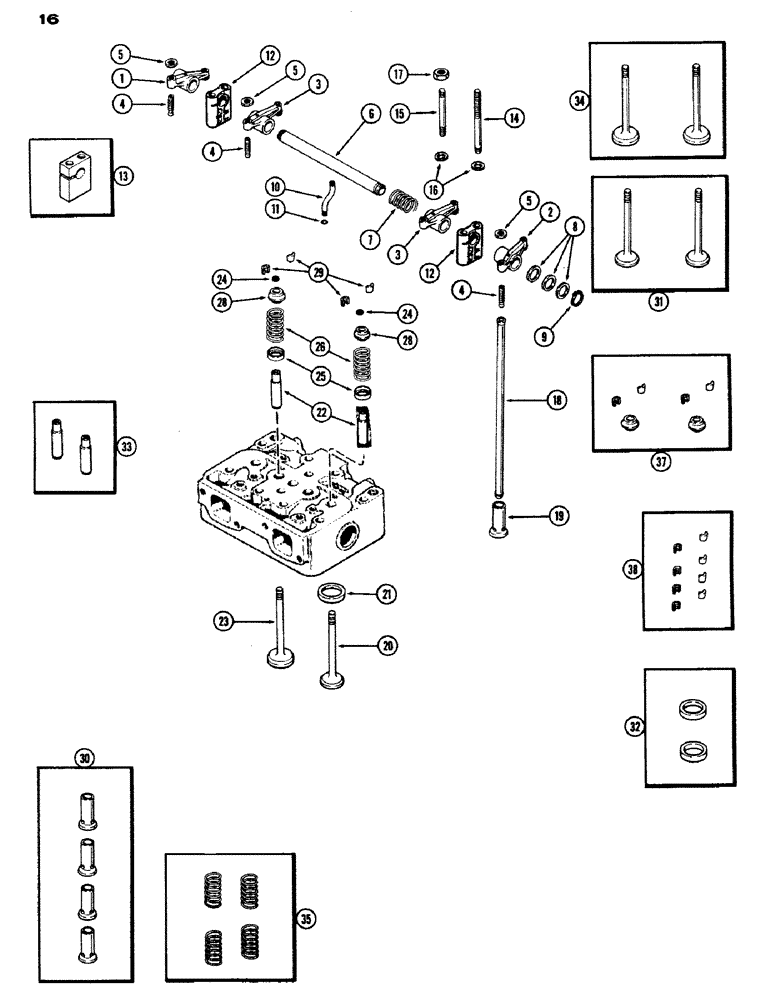

Запчасти Case IH 970 (016) - VALVE MECHANISM, (401B) DIESEL ENGINE (02) - ENGINE

1

A58655

ARM

- rocker, exhaust valve (1st, 3rd and 5th cylinders)

3шт.

2

A58656

ARM

- rocker, exhaust valve (2nd, 4th and 6th cylinders)

3шт.

3

A58654

ARM

- rocker, intake valve

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - rocker arm

12шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- 3/8" N.F. hex., jam

12шт.

6

A57532

SHAFT

ASSY. - rocker arm

3шт.

7

A27877

SPRING

- rocker arm shaft

3шт.

8

A27878

WASHER

- rocker arm shaft

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker arm shaft #87, Ext

6шт.

10

A58657

TUBE

- rocker arm shaft oil

3шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker arm shaft oil tube

3шт.

12

A61128

BRACKET

- rocker arm shaft (1st used engine serial no. 2307267)

6шт.

13

A27881

BRACKET

- rocker arm shaft to engine, Serial Range: -2307267

6шт.

14

A60885

STUD

- rocker arm support, 7/16" N.C. x 5-7/8"

6шт.

15

A58659

STUD

- rocker arm support, 7/16" N.C. x 4-5/16"

6шт.

16

195-29

WASHER,7/16"

- 15/32 x 59/64 x 1/16"

12шт.

17

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

12шт.

18

A58596

ROD

ASSY. - push

12шт.

19

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order Ref. 30)

12шт.

20

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order Ref. 31)

6шт.

21

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order Ref. 32)

6шт.

22

NSS

NOT SOLD SEPARAT

GUIDE - intake and exhaust valves (Order Ref. 33)

12шт.

23

NSS

NOT SOLD SEPARAT

VALVE - intake (Order Ref. 34)

6шт.

24

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

25

A66328

SEAT

- intake and exhaust valve springs

12шт.

26

NSS

NOT SOLD SEPARAT

SPRING - intake and exhaust valves (Order Ref. 35)

12шт.

28

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order Ref. 37)

12шт.

29

NSS

NOT SOLD SEPARAT

LOCK - valve spring (Order Ref. 38)

24шт.

30

A21653

KIT

LIFTER KIT - push rod (Set of 4) (Std.)

3шт.

30

A22463

KIT

LIFTER KIT - push rod (Set of 4) (.010" oversize)

3шт.

31

A41965

VALVE

KIT - exhaust (Set of 2)

3шт.

32

A41985

INSERT

KIT - exhaust valve (Set of 2)

3шт.

33

A41781

GUIDE

KIT - intake and exhaust (Set of 2)

6шт.

34

A41966

VALVE

KIT - intake (Set of 2)

3шт.

35

A42895

SPRING

KIT - intake and exhaust valves (Set of 4)

3шт.

37

A44645

KIT

RETAINER KIT - intake valve (2 rets. and 4 locks)

6шт.

38

A40352

LOCK

KIT - valve springs (Set of 8)

3шт.

M20614

SEAL KIT

SET valve seat, 3 required

1шт.
