Запчасти Case IH 970 (289C) - DECALS, DEMONSTRATOR, 1ST USED TRAC. SER. NO. 8675001 (09) - CHASSIS/ATTACHMENTS

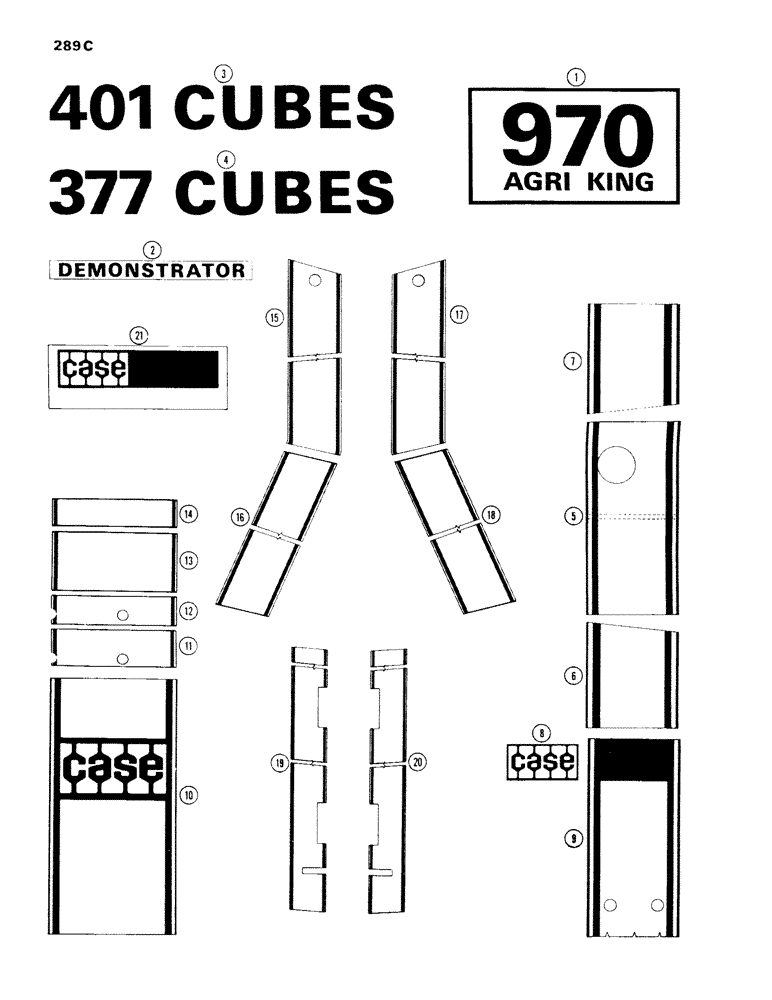

Схема запчастей Case IH 970 - (289C) - DECALS, DEMONSTRATOR, 1ST USED TRAC. SER. NO. 8675001 (09) - CHASSIS/ATTACHMENTS
13
9
7
5
11
17
3
18
20
10
16
14
12
19
21
2
1
4
8
6
15

Артикул

Название

Примечание

Количество

1

321-1813

DECAL

- "970 Agri-King", front panels and fuel tank

3шт.

2

321-1875

DECAL

- "Demonstrator" , decal is mounted on cab top sides when cab is not used-mount decal on fender top sides.

2шт.

3

321-2097

DECAL

- "401 Cubes", decal panel

2шт.

4

321-2096

DECAL - "377 Cubes", decal panel

2шт.

5

321-1681

DECAL

- strip, front hood top

1шт.

6

321-1690

DECAL

- strip, front upper, R.H.

1шт.

7

321-1691

DECAL

- strip, front upper, L.H.

1шт.

8

321-1684

DECAL

- "Case"

2шт.

9

321-1685

DECAL

- strip, lower front panel

2шт.

10

321-1877

DECAL

- strip, "Case", fuel tank

1шт.

11

321-1900

DECAL - strip, spacer plate (2-7/32" wide)

1шт.

12

321-1886

DECAL - strip, rear cab panel (2-13/16" wide)

1шт.

13

321-1878

DECAL - strip, rear cab panel (4-3/4" wide)

1шт.

14

321-1879

DECAL - strip, rear window frame (2" wide)

2шт.

15

321-1880

DECAL - strip, upper R.H. front post

1шт.

16

321-1882

DECAL - strip, lower R.H. front post

1шт.

17

321-1881

DECAL - strip, upper L.H. front post

1шт.

18

321-1883

DECAL - strip, lower L.H. front post

1шт.

19

321-1884

DECAL - strip, rear R.H. side post

1шт.

20

321-1885

DECAL - strip, rear L.H. side post

1шт.

21

321-1846

DECAL - dealer's name, L.H. decal panel

1шт.

Выбрано товаров: 21
