Запчасти Case IH 970 (289A) - DECALS, STANDARD, USED PRIOR TO TRAC. SER. NO. 8675001 (09) - CHASSIS/ATTACHMENTS

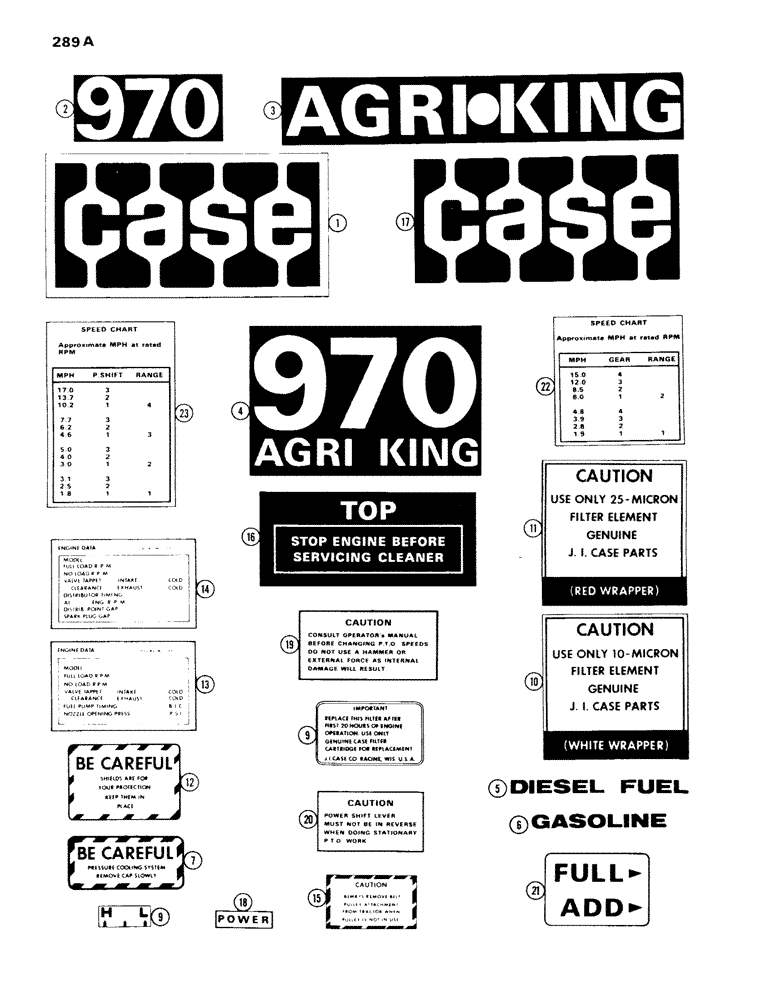

Схема запчастей Case IH 970 - (289A) - DECALS, STANDARD, USED PRIOR TO TRAC. SER. NO. 8675001 (09) - CHASSIS/ATTACHMENTS
17
19
20
5
16
4
13
9
22
7
6
3
10
15
1
23
14
18
9
2
11
21
12

Артикул

Название

Примечание

Количество

A42463

DECAL

KIT - decal, Includes: Ref. 1 - 23

1шт.

1

321-1308

DECAL

- identification, "Case"

2шт.

2

321-1396

DECAL

- "970"

2шт.

3

321-1391

DECAL

- "Agri-King"

2шт.

4

321-1397

DECAL

- "970 Agri-King"

1шт.

5

321-230

DECAL

- "Diesel Fuel"

1шт.

6

321-18

DECAL

- "Gasoline"

1шт.

7

321-122

DECAL

- "Pressure Cooling System"

1шт.

8

321-367

DECAL

- engine oil filter change

1шт.

9

321-1335

DECAL

- seat adjustment indicator

1шт.

10

321-1295

DECAL

- oil filter warning (10 micron)

1шт.

11

321-1296

DECAL

- oil filter warning (25 micron)

1шт.

12

321-608

DECAL

- safety

1шт.

13

312-1384

DECAL - engine data (Diesel)

1шт.

14

321-1367

X

DECAL - engine data (Gasoline)

1шт.

15

321-333

DECAL

- belt pulley attachment

1шт.

16

321-1568

DECAL

- air cleaner

1шт.

17

321-1440

DECAL

- identification "Case" on fuel tank

1шт.

18

321-1623

DECAL

- "Power" brake

1шт.

19

321-1650

DECAL

- "Caution", P.T.O.

1шт.

20

321-1651

DECAL

- "Caution", power shift

1шт.

21

321-1642

DECAL

- transmission, "Add-Full"

1шт.

22

321-1631

DECAL

- 8 speed

1шт.

23

321-1632

DECAL

- 12 speed

1шт.

Выбрано товаров: 24
