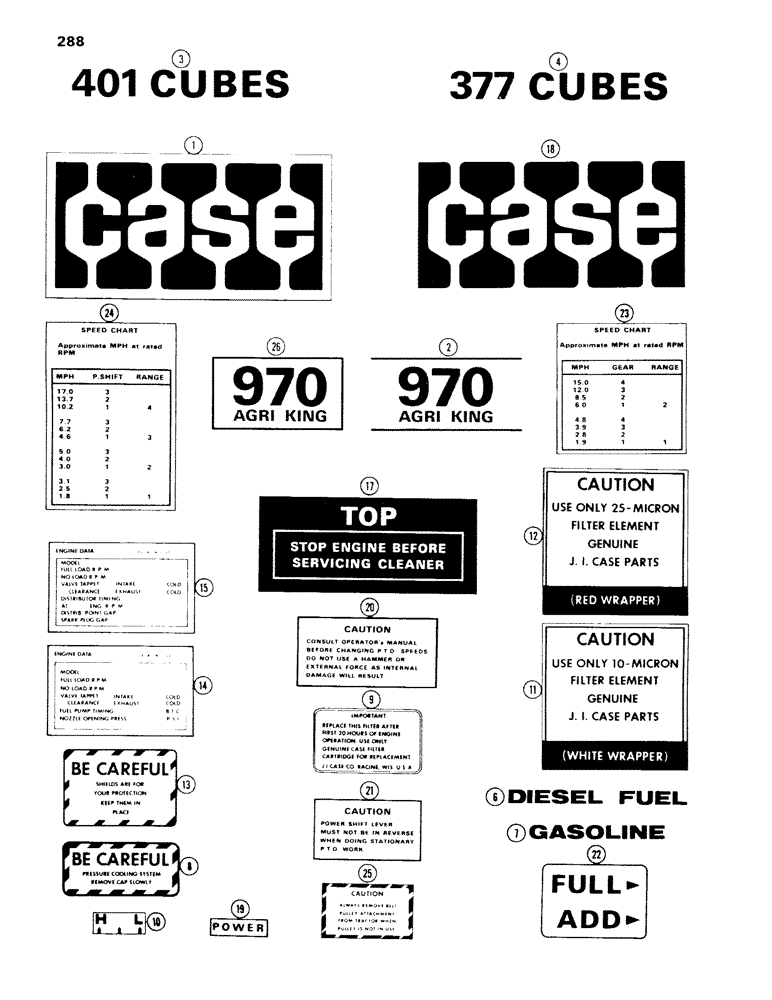

Запчасти Case IH 970 (288) - DECALS, STANDARD, 1ST USED TRAC. SER. NO. 8675001 (09) - CHASSIS/ATTACHMENTS

A43036

DECAL

KIT - decal, Includes: Ref. 1 - 24

1шт.

1

321-2163

DECAL

- identification, "Case" (front side panel)

2шт.

2

321-1814

DECAL

- "970 Agri-King" (on decal panel)

2шт.

3

321-1816

DECAL

- "401 Cubes" (on decal panel)

2шт.

4

321-1815

DECAL

- "377 Cubes" (on decal panel)

2шт.

6

321-230

DECAL

- "Diesel Fuel" (on fuel tank)

1шт.

7

321-18

DECAL

- "Gasoline" (on fuel tank)

1шт.

8

321-122

DECAL

- "Pressure Cooling System" (on hood)

1шт.

9

321-367

DECAL

- engine oil filter change

1шт.

10

321-1335

DECAL

- seat adjustment indicator

1шт.

11

321-1762

DECAL

- oil filter warning (10 micron)

1шт.

12

321-1763

DECAL

- oil filter warning (25 micron)

1шт.

13

321-608

DECAL

- safety, P.T.O. shield

1шт.

14

321-1802

DECAL

- engine data (Diesel)

1шт.

15

321-1939

DECAL

- engine data (Gasoline)

1шт.

17

321-1568

DECAL

- air cleaner

1шт.

18

321-1439

DECAL

- identification, "Case" (on fuel tank)

1шт.

19

321-1623

DECAL

- "Power" (on brake pedal)

1шт.

20

321-1650

DECAL

- "Caution", P.T.O. operation

1шт.

21

321-1651

DECAL

- "Caution", power shift

1шт.

22

321-1642

DECAL

- "Add-Full" (on transmission case)

1шт.

23

321-1825

DECAL

- speed chart (8 speed mech. shift)

1шт.

24

321-1826

DECAL

- speed chart (12 speed mech. shift)

1шт.

25

321-333

DECAL

- belt pulley attachment (not part of kit)

1шт.

26

321-1813

DECAL

- "970 Agri-King" (on fuel tank) (not part of kit)

1шт.
