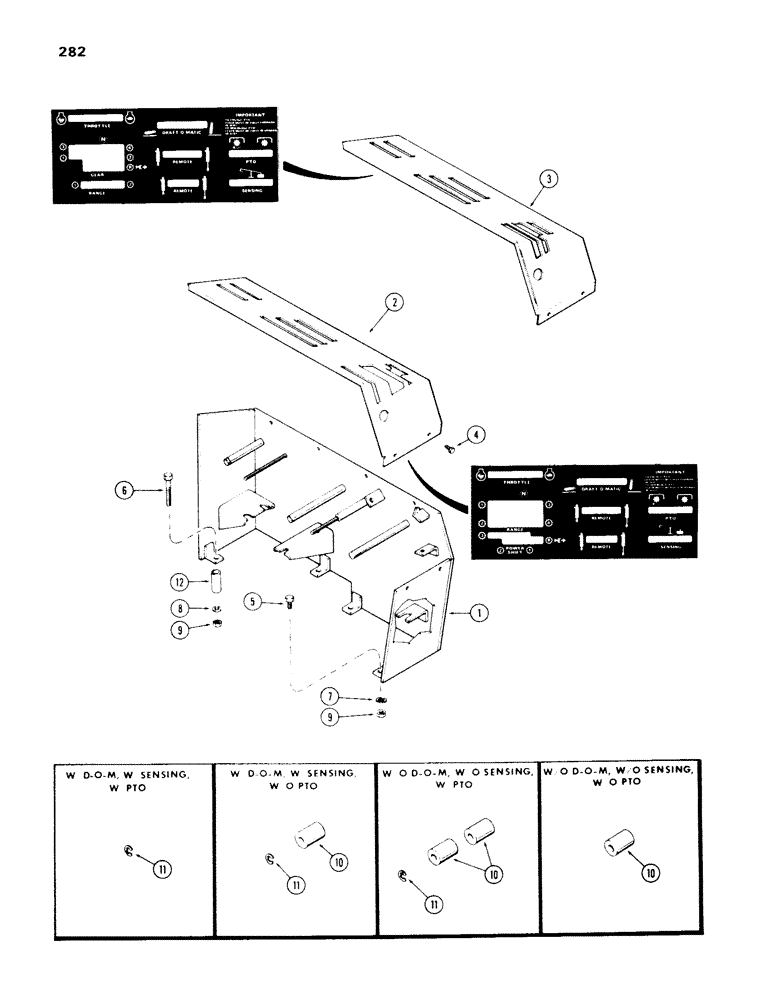

Запчасти Case IH 970 (282) - CONTROL CONSOLE (09) - CHASSIS/ATTACHMENTS

1

A62422

CONSOLE ASSY. - control (Replaces A60657)

1шт.

2

A59786

COVER

- control console, power shift (incl. decal) (Order A65579)

1шт.

3

A59787

COVER

- control console, mechanical shift (incl. decal) (Order A65580)

1шт.

4

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

6шт.

5

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

5

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

- 3/8 x 1-7/8" N.C. hex

1шт.

6

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex

1шт.

7

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" int./ext

3шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

10

A59994

SPACER

- D-O-M sensing and PTO (See Insets)

1шт.

11

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, (see insets) #62, .480" Dia, E-Type

1шт.

12

A65472

SPACER

- console (Replaces T32627)

1шт.
