Запчасти Case IH 970 (014) - CYLINDER HEAD AND COVER, (401B) DIESEL ENGINE (02) - ENGINE

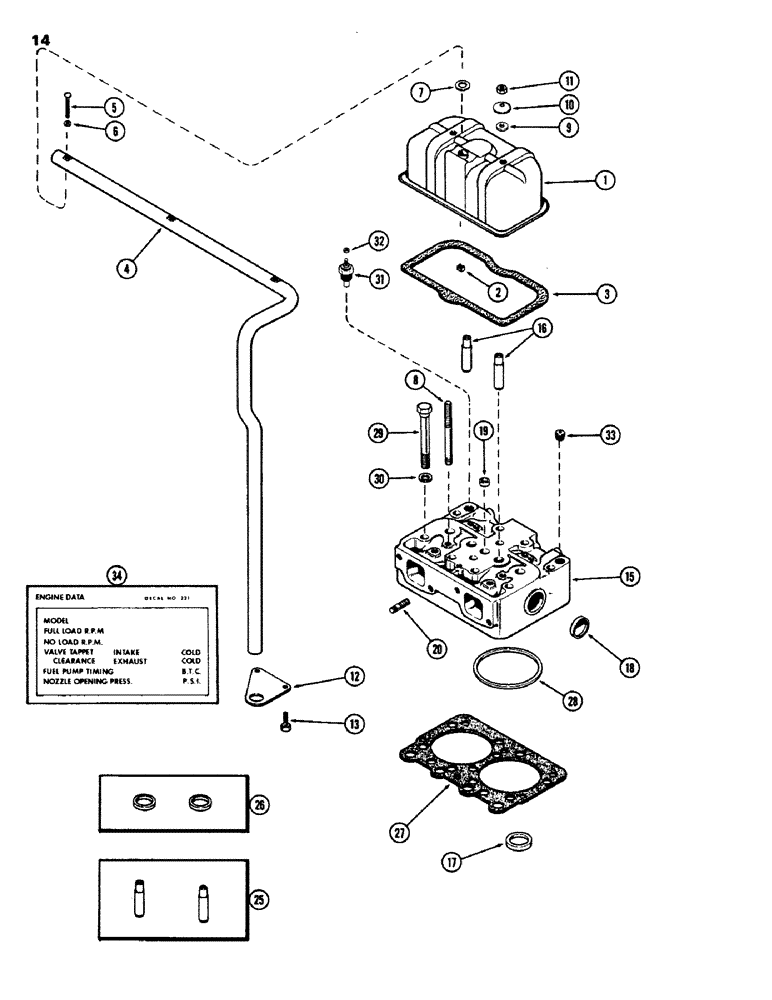

Схема запчастей Case IH 970 - (014) - CYLINDER HEAD AND COVER, (401B) DIESEL ENGINE (02) - ENGINE
32
8
16
33
25
17
18
13
3
20
5
34
6
27
1
11
26
9
10
19
4
2
31
7
29
30
15
28
12

Артикул

Название

Примечание

Количество

1

A58929

COVER

ASSY. - cylinder head, Includes; Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" N.C. Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover (Replaces A58928)

3шт.

4

A59053

TUBE

- breather

1шт.

5

75-440

SCREW

- mach., 1/4 x 2-1/2" N.C. rd. hd.

3шт.

6

A34133

GASKET

- breather tube screw

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

-, Serial Range: tube-cover

3шт.

8

A60885

STUD

- rocker arm brkt. and cyl. head cover

6шт.

9

A23684

GASKET

GASKET - cover stud

6шт.

10

A23683

WASHER

- cover stud. beveled

6шт.

11

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

6шт.

12

A59054

BRACKET

- breather tube

1шт.

13

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - 3/8 x 1-1/2" N.C. hex.

2шт.

15

A58885

CYLINDER

HEAD ASSY. - cylinder (Casting No. A58523), Includes: Ref. 16 - 19

3шт.

16

NSS

NOT SOLD SEPARAT

GUIDES - intake and exhaust valves (Order Ref. 25)

4шт.

17

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order Ref. 26)

2шт.

18

A34124

PLUG,Cup, 1 5/8", Stainless

- 1-5/8" cup type

2шт.

19

A58620

PLUG,Cup, 3/4", Stainless

- 3/4" cup type

1шт.

20

A59077

STUD

- manifold mounting, 3/8" N.C. x 1-13/16"

24шт.

25

A41781

GUIDE

KIT - intake and exhaust valves (Set of 2)

6шт.

26

A41985

INSERT

KIT - exhaust valve (Set of 2)

3шт.

27

A62215

GASKET

- cylinder head (Replaces A58868)

3шт.

28

A34686

RING

- fire, std.

6шт.

28

A34688

RING

- fire, thick (coded w/blue stripe)

1шт.

29

A62732

STEP BOLT

BOLT - 5/8 x 5-5/8" N.C. hex. (Used w/blocks A41962 and A41963) (See Figure 18)

30шт.

29

A76638

BOLT

- 5/8 x 6-1/4" N.C. hex. (Used w/A44093 and A44094 blocks) (See Figure 18)

30шт.

30

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt

30шт.

31

F13156

SENDER UNIT

UNIT - temperature sending (in rear head) (stamped 362-AE) (used w/A59681 gauge) (See Figure 75) (used w/air conditioner), these sender-gauge combinations are not interchangeable

1шт.

31

A61787

TRANSMITTER

UNIT - temperature sending (in rear head) (stamped 362-EP) (used w/A61786 gauge) (See Figure 75) (used w/air conditioner), these sender-gauge combinations are not interchangeable

1шт.

31

A61787

TRANSMITTER

UNIT - temperature sending (in rear head) (stamped 362-EP) (used w/A61785 gauge) (See Figure 75) (used w/out air conditioner), these sender-gauge combinations are not interchangeable

1шт.

32

193-1006

NUT,Keps, w/LW, 1/4"-20

- #10 N.F. hex. (brass)

1шт.

33

221-1843

PLUG

- 3/8" P.T. hex. sckt. hd.

5шт.

34

321-1384

DECAL

- engine data

1шт.

Выбрано товаров: 33
