Запчасти Case IH 970 (281A) - FENDERS, 24" FENDER (09) - CHASSIS/ATTACHMENTS

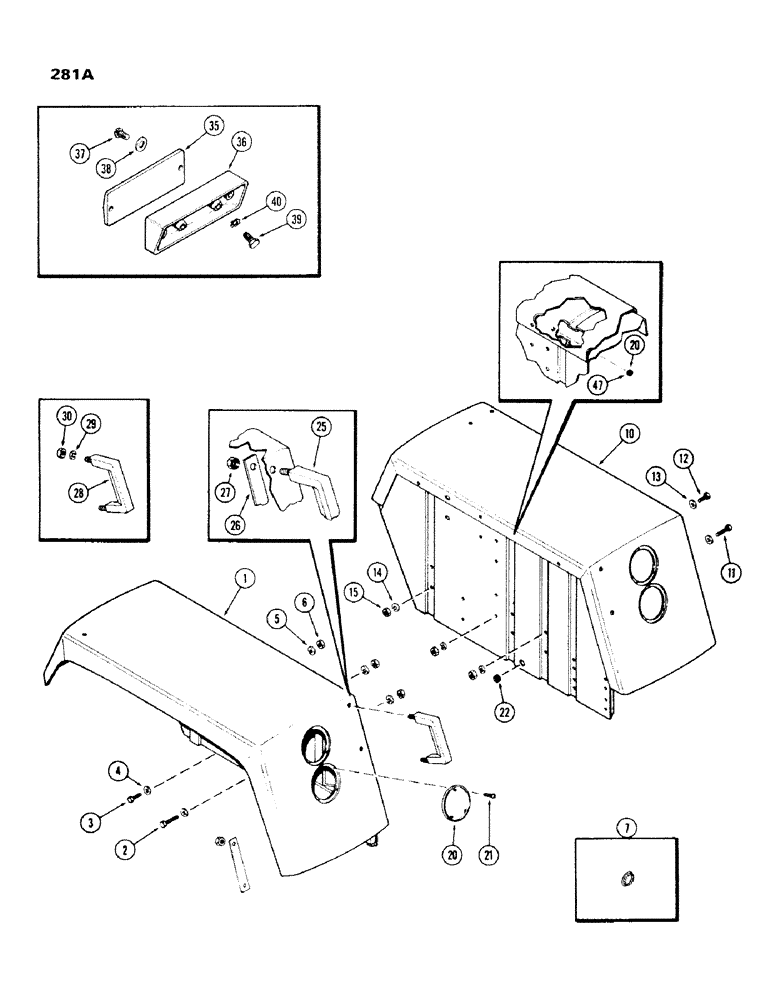

Схема запчастей Case IH 970 - (281A) - FENDERS, 24" FENDER (09) - CHASSIS/ATTACHMENTS
20
4
13
20
35
15
30
29
25
3
12
5
14
27
28
10
47
22
37
39
38
26
6
40
21
7
2
13
36
1

Артикул

Название

Примечание

Количество

1

A64886

FENDER

ASSY. - 24", R.H. (Replaces A60780)

1шт.

2

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

5шт.

3

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

4

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32"

6шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , R.H. fender 3/8"-16, G5

6шт.

10

A64887

FENDER

ASSY. - 24", L.H. (Replaces A60781)

1шт.

11

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3шт.

12

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

12

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

13

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32"

6шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

20

A59330

COVER

- cultivator light opening

1шт.

21

187-1050

SCREW

- #10 x 1/2" N.C. type "T" tap

3шт.

22

A59722

GROMMET

- wire harness

2шт.

A65434

KIT

ATTACHMENT - fender mounted handles (Mach. Item), W/O Cab, Includes: Ref. 25 - 27

1шт.

25

A60530

HANDLE

- R.H. AND L.H., W/O Cab

2шт.

26

A59338

PLATE

- handle mounting, W/O Cab

1шт.

27

230-4216

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. hex., lock, handles, w/o Cab

4шт.

28

A60530

HANDLE

- cab mounting, W/ Cab

1шт.

29

192-46

LOCK WASHER,3/8"

WASHER, LOCK, , w/Cab 3/8"

2шт.

30

129-770

NUT,3/8"-16, G5

- 3/8" N.C. hex, W/ Cab

2шт.

35

A62415

REFLECTOR

- fender, red

2шт.

36

A62416

BRACKET

- reflector

2шт.

37

187-1058

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - #10 x 5/8" rd. hd., self-tapping, reflector

4шт.

38

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16", reflector

4шт.

39

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - 1/4 x 1/2" N.C. hex., self-tapping, reflector

4шт.

40

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" int./ext., reflector

4шт.

Выбрано товаров: 29
