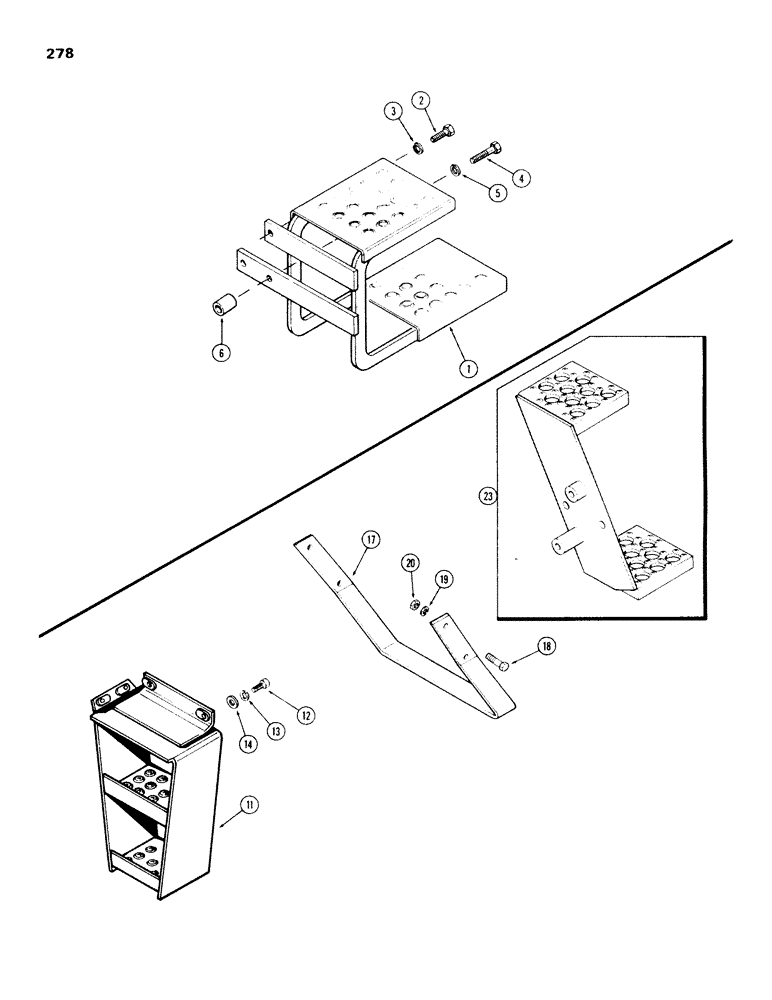

Запчасти Case IH 970 (278) - STEPS (09) - CHASSIS/ATTACHMENTS

1

A59340

STEP ASSY. - R.H. (L.H.shown), W/O Cab

1шт.

1

A59341

STEP ASSY. - L.H., W/O Cab

1шт.

2

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

w/o Cab Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

3

92-8

LOCK WASHER,1/2"

w/o cab 1/2"

1шт.

4

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8 x 3-1/2" N.C. hex, W/O Cab

2шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , w/o Cab 5/8"

2шт.

6

A60897

TUBE - step mounting spacer, W/O Cab

2шт.

11

A61143

STEP

ASSY. - cab mounting, W/ Cab

1шт.

12

13-206

SCREW

BOLT - 3/8 x 3/4" N.C. hex, W/ Cab

4шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , w/Cab 3/8"

4шт.

14

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 3/32", W/ Cab

4шт.

A64599

ATTACHMENT - step extension (Mach. Item), W/ Cab, Includes: Ref. 17 - 20

1шт.

17

NSS

NOT SOLD SEPARAT

STEP - extension (Order A64599), W/ Cab

1шт.

18

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

w/ Cab Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , w/Cab 1/2"

4шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

w/Cab 1/2"-13, G5

4шт.

A43094

CLUTCH

ATTACHMENT - step, servicing, W/ Cab, Includes: Ref. 23

1шт.

23

A32659

STEP

- servicing, W/ Cab

1шт.
