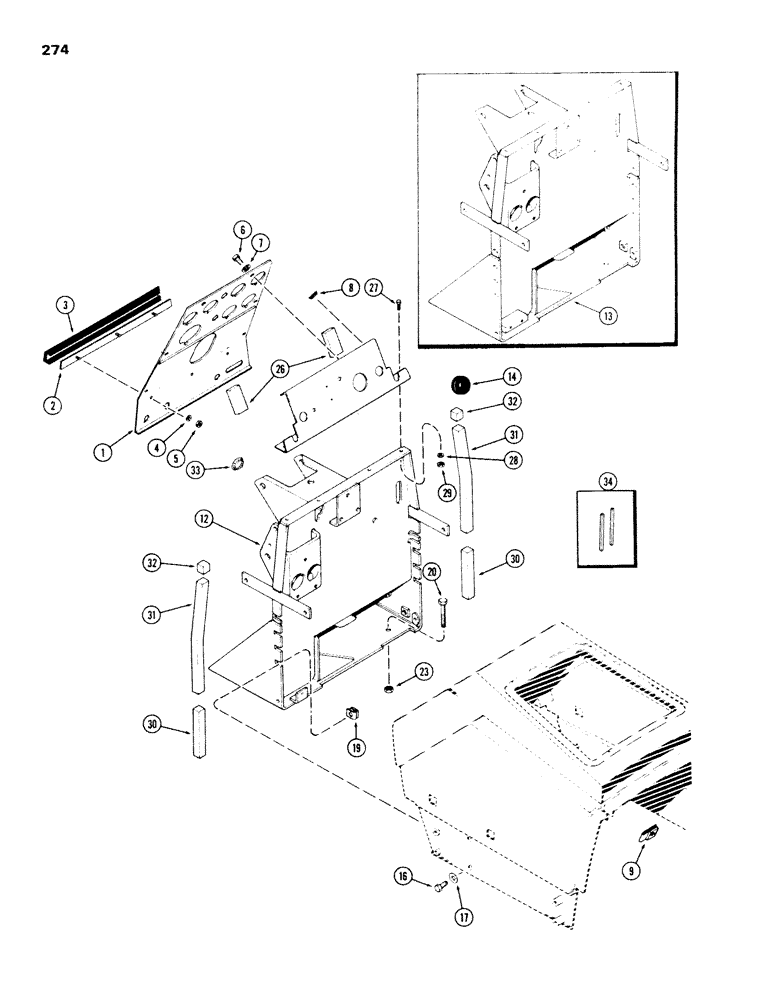

Запчасти Case IH 970 (274) - INSTRUMENT PANEL (09) - CHASSIS/ATTACHMENTS

1

A62013

PANEL

ASSY. - instrument (Diesel) (Replaces A60955)

1шт.

1

A62010

PANEL

ASSY. - instrument (Spark) (Replaces A60952)

1шт.

2

A60957

PLATE ASSY. - moulding

1шт.

3

A63895

MOLDING

MOULDING - inst. panel bumper

1шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

5

25-104

NUT,1/4"-20, G5

3шт.

6

A60266

SCREW,Hex, 0.19"-24 x 5/8", Brass, BLK

- #10-24 x 5/8" hex., brass

6шт.

7

193-93

LOCK WASHER,#10

WASHER - Shakeproof, int. #10

6шт.

8

131-621

NUT,Ret, J, #10-24

- #10-24 tinnerman

4шт.

9

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

RETAINER - #10-24 "J" Type

2шт.

10

353-407

PLUG,Dome, .687" hole, Nylon

- button, 11/16"

1шт.

12

A62365

FIREWALL ASSY. - (1st used trac. ser. no. 8675001)

1шт.

13

A61761

FIREWALL ASSY. - (Replaces A59794)

1шт.

14

A59719

GROMMET

- firewall, 1-1/8 x 2-1/2 x 1/2"

1шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Firewall Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

17

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64", firewall

4шт.

19

131-608

NUT

- 3/8" N.C. Tinnerman cage, firewall

4шт.

20

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Firewall Hex, 1/2"-13 x 3 3/4", G5

2шт.

20

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Firewall Hex, 1/2"-13 x 2", G5

2шт.

23

131-1116

LOCK NUT,1/2"-13, GB

NUT - 1/2" N.C. hex., crown lock, firewall

2шт.

23

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex, firewall

2шт.

25

A59803

BAFFLE ASSY. - steering wheel, firewall, Includes: Ref. 26

1шт.

26

A59805

FILLER

BAFFLE - air , to be attached with adhesive 345-22., firewall

2шт.

27

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Firewall Hex, 1/4"-20 x 1", G5

4шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Firewall 1/4"

4шт.

29

25-104

NUT,1/4"-20, G5

Firewall 1/4"-20, G5

4шт.

30

A60777

FOAM

BAFFLE - steering column support, lower, to be attached with adhesive 345-22., firewall

2шт.

31

A60776

FOAM

BAFFLE - steering column support, center, to be attached with adhesive 345-22., firewall

2шт.

32

A60775

BAFFLE - steering column support, upper, to be attached with adhesive 345-22., firewall

2шт.

33

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - button, 1-1/2" dia., firewall

1шт.

34

345-27

BEAD - weatherseal, 1/4 x 10", firewall

1шт.
