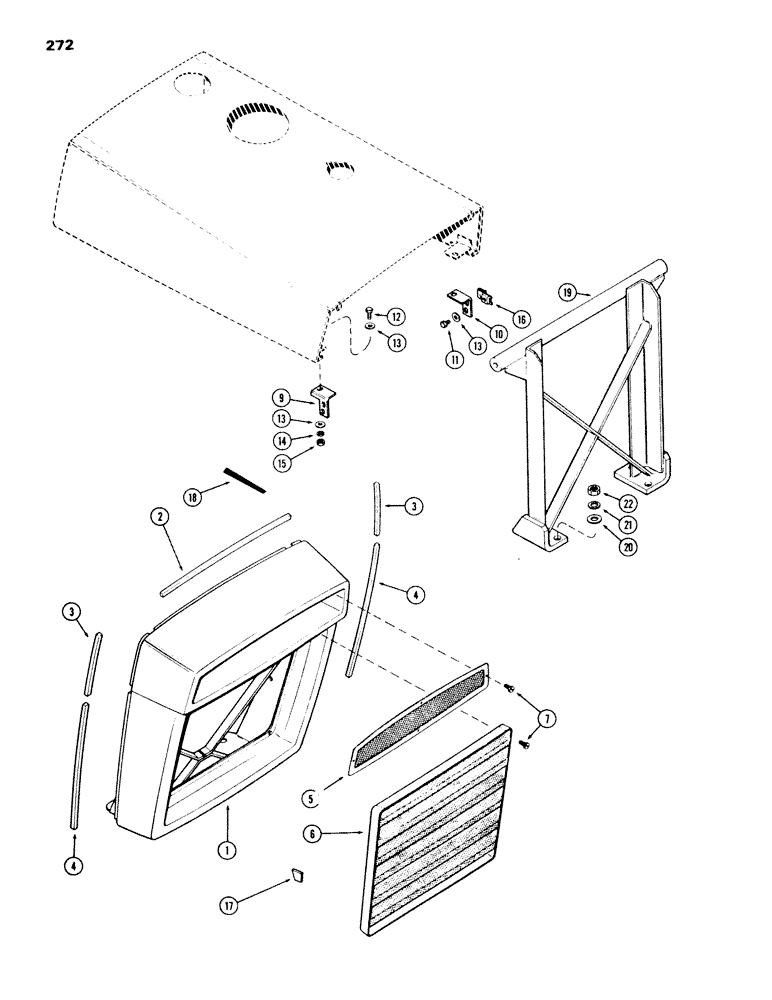

Запчасти Case IH 970 (272) - GRILLE (09) - CHASSIS/ATTACHMENTS

1

A64244

PACKAGE, REPAIR

GRILLE - casting (fiberglass) (Replaces A59100)

1шт.

2

A59746

SEAL

SPACER - hood to grille, center, to be attached with adhesive 345-22.

1шт.

3

A59747

GASKET

SPACER - hood to grille side, upper, to be attached with adhesive 345-22.

2шт.

4

A59748

GASKET

SPACER - front side sheets to grille, to be attached with adhesive 345-22.

2шт.

5

A59754

GRILLE

SCREEN ASSY. - grille cap

1шт.

6

A59752

FILTER SCREEN

SCREEN ASSY. - grille

1шт.

7

169-154

SCREW,Phil Fil Hd, 5/16" - 18 x 3/4"

- 5/16 x 3/4" N.C. brass, Phillips hd.

8шт.

9

A62742

BRACKET

- front hood to grille, R.H. (Replaces A59240)

1шт.

10

A62743

BRACKET

- front hood to grille, L.H. (Replaces A59241)

1шт.

11

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

12

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

8шт.

14

92-5

LOCK WASHER,5/16"

6шт.

15

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

16

131-616

NUT,Ret, J, 5/16"-18

- 5/16" N.C. Tinnerman, Type 3

4шт.

17

A62211

FOAM

- grille screen

12шт.

18

A62690

GUARD

TRIM - grille sight guage

1шт.

A60535

ATTACHMENT - support (Mach. Item), implement, Includes: Ref. 19

1шт.

19

NSS

NOT SOLD SEPARAT

SUPPORT ASSY. - implement

1шт.

20

195-45

WASHER,3/4"

Implement support 3/4"

4шт.

21

192-167

LOCK WASHER,3/4"

WASHER, LOCK, , Implement support 3/4"

4шт.

22

25-1712

NUT,3/4"-16, G5, Hvy

- 3/4" N.F. hex, implement support

4шт.
