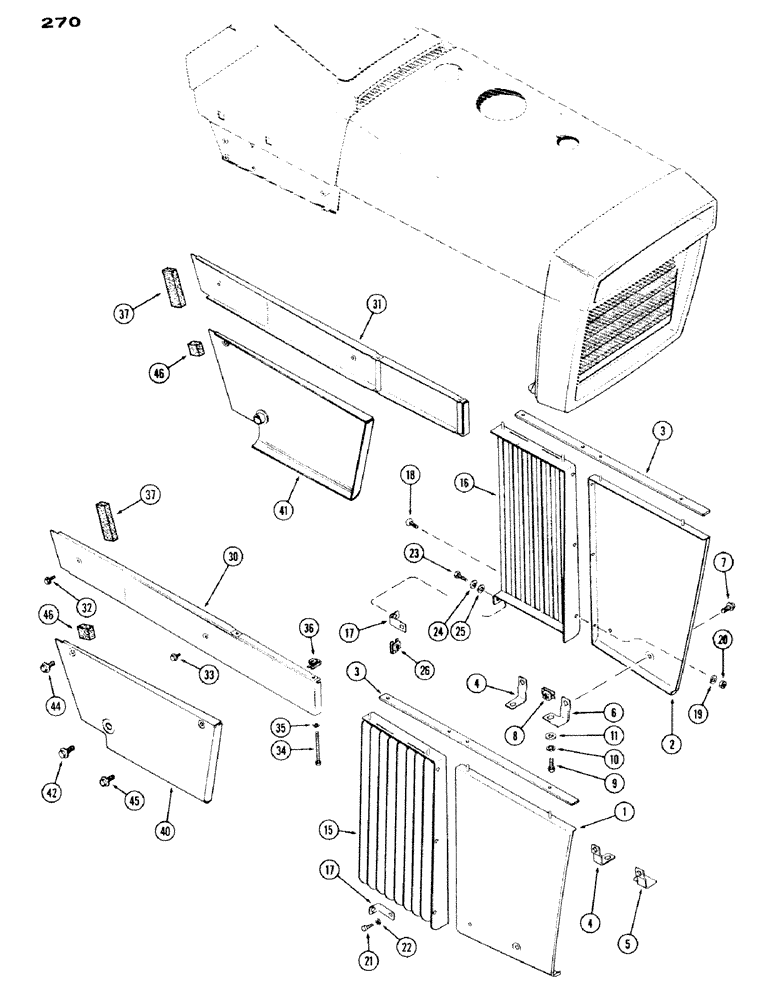

Запчасти Case IH 970 (270) - SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

A59128

PANEL

ASSY. - front side, R.H.

1шт.

2

A59365

PANEL

ASSY. - front side, L.H.

1шт.

3

A59239

SPACER

- hood and side sheets, to be attached with adhesive 345-22.

2шт.

4

A59364

BRACKET

- R.H. and L/H/ side sheet mtg.

2шт.

5

A59278

BRACKET

- R.H. side sheet Mtg.

1шт.

6

A59279

BRACKET - L.H. side sheet mtg.

1шт.

7

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

8

131-616

NUT,Ret, J, 5/16"-18

- 5/16" tinnerman

4шт.

9

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

4шт.

15

A59440

VENTILATOR

LOUVER ASSY. - right hand (8 slats) (1st used trac. ser. no. 8665648)

1шт.

15

A6-553

LOUVER ASSY. - R.H. (Replaces A59444) (10 slats) to trac., Serial Range: -8665648

1шт.

16

A59441

GUARD

LOUVER ASSY. - left hand (8 slat) (1st used trac. ser. no. 8665648)

1шт.

16

A59443

VENTILATOR

LOUVER ASSY. - L.H. (Replaces A59445) (10 slats) to trac., Serial Range: -8665648

1шт.

17

A61042

BRACKET - louver mtg.

2шт.

18

175-437

SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"

- 5/16 x 5/8" truss hd., louvers

6шт.

19

92-5

LOCK WASHER,5/16"

louvers 5/16"

6шт.

20

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex, louvers

6шт.

21

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Louvers Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

22

92-5

LOCK WASHER,5/16"

louvers 5/16"

2шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Louvers Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

louvers 3/8"

2шт.

25

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64", louvers

2шт.

26

131-616

NUT,Ret, J, 5/16"-18

- 5/16" tinnerman, louvers

2шт.

30

A60968

PANEL

ASSY. - decal, R.H.

1шт.

31

A60969

DISK HARROW

PANEL ASSY. - decal, L.H.

1шт.

32

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

Decal panels Hex Flg, 5/16"-18 x 1/2", Serr

2шт.

33

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

Decal panels Hex Flg, 5/16"-18 x 1", Serr

2шт.

34

113-20

BOLT,Hex, 1/4" - 20 x 4-3/4", Gr 5

- 1/4 x 4-3/4" N.C. hex, decal panels

6шт.

35

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Decal panels 1/4"

6шт.

36

131-620

SPRING NUT,J, 1/4" - 20, 0.025" Thk

RETAINER - Tinnerman, "J" type, decal panels

4шт.

37

A61879

FOAM

- decal panel seal, to be attached with adhesive 345-22.

2шт.

40

A60972

PANEL

ASSY. - rear side, R.H.

1шт.

41

A60973

PANEL

ASSY. - rear side, L.H.

1шт.

42

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

Rear side panels Hex Flg, 5/16"-18 x 1 1/4", Serr

2шт.

44

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

Rear side panels Hex Flg, 5/16"-18 x 1/2", Serr

2шт.

45

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

Rear side panels Hex Flg, 5/16"-18 x 1", Serr

2шт.

46

A61878

FOAM

- rear side panel sealing, to be attached with adhesive 345-22.

2шт.
