(268) - HOOD

Запчасти Case IH 970 (268) - HOOD (09) - CHASSIS/ATTACHMENTS

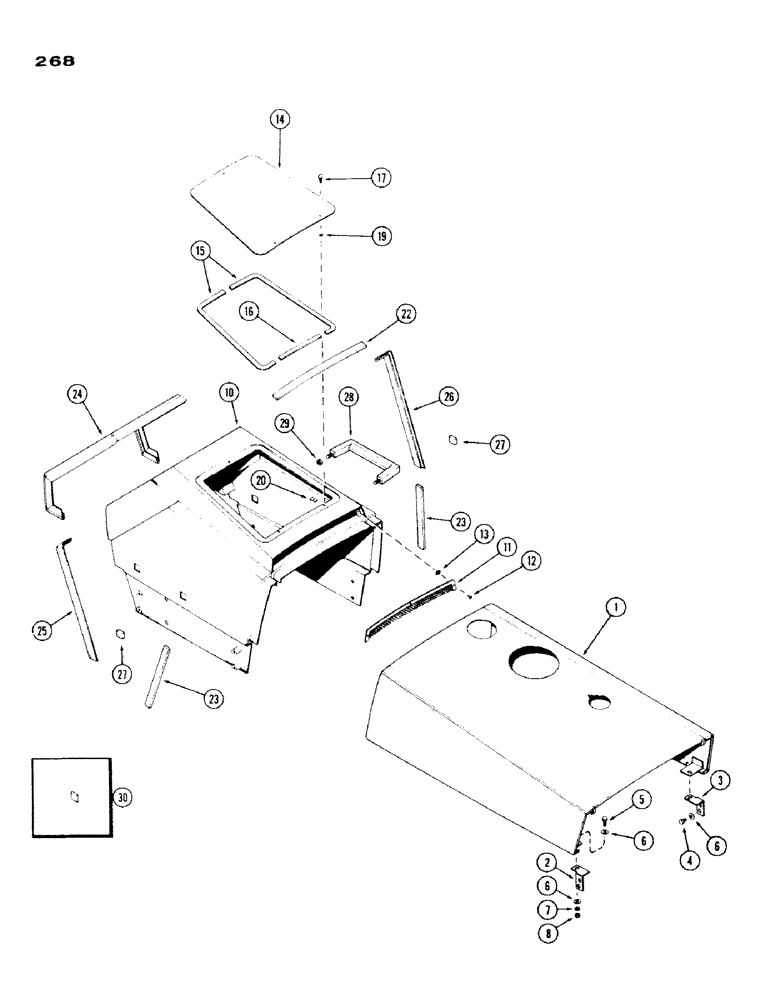

Схема запчастей Case IH 970 - (268) - HOOD (09) - CHASSIS/ATTACHMENTS
19
11
26
14
24
6
4
30
23
16
8
2
6
27
7
29
27
23
5
3
10
17
22
25
12
28
1
20
6
15
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A60960

HOOD ASSY. - front

1шт.

2

A59240

BRACKET

- front hood to grille mtg., R.H.

1шт.

3

A59241

BRACKET

- front hood to grille mtg., L.H.

1шт.

4

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

6

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

8шт.

7

92-5

LOCK WASHER,5/16"

6шт.

8

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

10

A61640

HOOD

ASSY. - rear (Replaces A60965)

1шт.

11

A59395

SCREEN

ASSY. - rear hood

1шт.

12

182-522

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

- #6-32 x 1/2" pan hd. (black zinc)

3шт.

13

131-618

NUT

- tinnerman

3шт.

14

A59391

COVER

- hood access

1шт.

15

A59400

SEAL

- hood access cover, outer, Ref. 15, 16, 22 and 23 to be attached with adhesive 345-19. Refs. 24, 25 and 26 to be attached with adhesive 345-21.

2шт.

16

A59401

SEAL

- hood access cover, center, Ref. 15, 16, 22 and 23 to be attached with adhesive 345-19. Refs. 24, 25 and 26 to be attached with adhesive 345-21.

1шт.

17

A61044

STUD

- wing hd., rear hood cover

3шт.

19

A61045

RETAINER

- stud, rear hood cover

3шт.

20

A61046

CLIP

RECEPTICLE CLIP - rear hood cover

3шт.

22

A59406

SEAL

- rear hood cover, Ref. 15, 16, 22 and 23 to be attached with adhesive 345-19. Refs. 24, 25 and 26 to be attached with adhesive 345-21.

1шт.

23

A59408

SEAL

- rear hood outer, Ref. 15, 16, 22 and 23 to be attached with adhesive 345-19. Refs. 24, 25 and 26 to be attached with adhesive 345-21.

2шт.

24

A60939

MOLDING

- rear hood and inst. panel, Ref. 15, 16, 22 and 23 to be attached with adhesive 345-19. Refs. 24, 25 and 26 to be attached with adhesive 345-21.

1шт.

25

A60940

MOLDING

- rear hood lower, R.H., Ref. 15, 16, 22 and 23 to be attached with adhesive 345-19. Refs. 24, 25 and 26 to be attached with adhesive 345-21.

1шт.

26

A60941

EJECTOR

MOLDING - rear hood lower, L.H., Ref. 15, 16, 22 and 23 to be attached with adhesive 345-19. Refs. 24, 25 and 26 to be attached with adhesive 345-21.

1шт.

27

A62122

SEAL

- rear hood, upper

2шт.

28

A60530

HANDLE

- R.H. and L.H.

2шт.

29

230-4216

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. hex., lock, handles

4шт.

30

A59366

PLUG

- handle hole cover (used w/o hood handle)

2шт.
