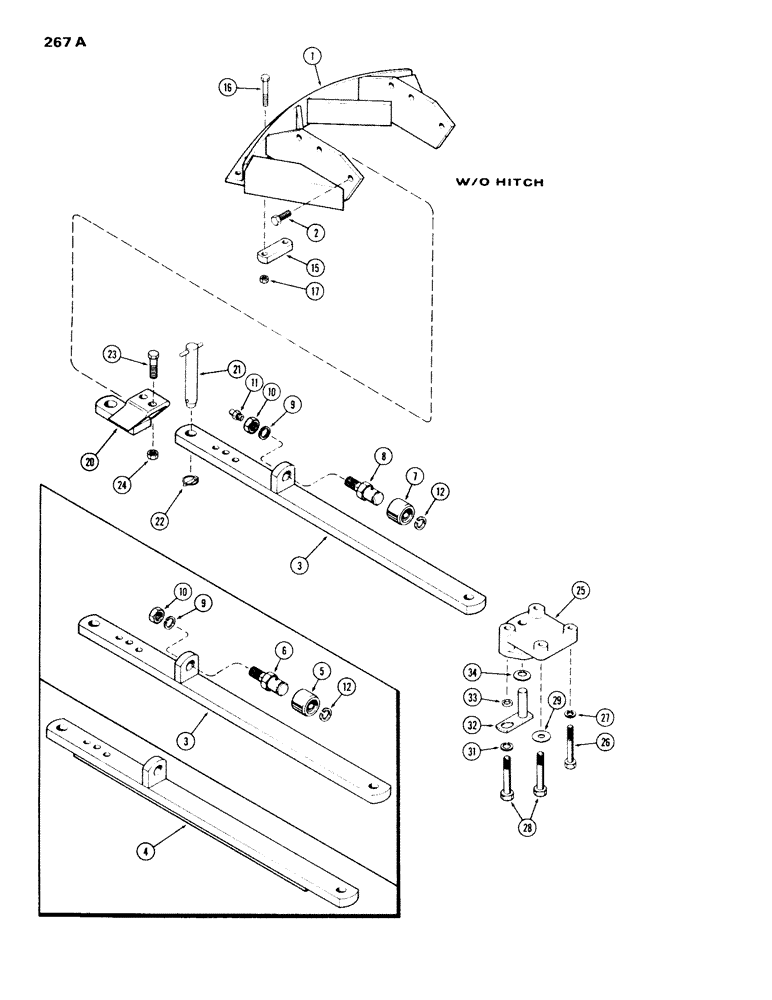

Запчасти Case IH 970 (267A) - DRAWBAR, WITHOUT HITCH (09) - CHASSIS/ATTACHMENTS

1

A34846

SUPPORT ASSY. - wide swing drawbar

1шт.

2

113-746

BOLT - 3/4 x 2" N.C. hex

6шт.

3

A65752

SWINGING DRAWBAR

DRAWBAR ASSY. - wide swing (1st used trac. ser. no. 8717277)

1шт.

4

A60429

DRAWBAR

ASSY. - wide swing to trac., Serial Range: -8717277

1шт.

5

A61117

ROLLER

- drawbar (used w/A61118 bolt)

1шт.

6

A61118

BOLT - drawbar roller (solid)

1шт.

7

A27010

ROLLER

- drawbar (used w/A32946 bolt)

1шт.

8

A32946

BOLT

- brawbar roller (drilled)

1шт.

9

92-18

LOCK WASHER,1 1/8"

1 1/8"

1шт.

10

129-131

NUT,1 1/8"-12, G5

- 1-1/8" N.F. hex

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T. str. (used w/A32946 bolt)

1шт.

12

A27012

RING

SNAP RING - drawbar roller bolt

1шт.

15

A58347

STRAP

- drawbar clamp

1шт.

16

13-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

17

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

A60407

ATTACHMENT - yoke (Mach. Item), Includes: Ref. 20 - 24

1шт.

20

NSS

NOT SOLD SEPARAT

YOKE ASSY. - drawbar

1шт.

21

A57998

PIN

ASSY. - drawbar, Includes: Ref. 22

1шт.

22

A30338

PIN

- klik

1шт.

23

113-764

BOLT

- 3/4 x 3-1/4" N.C. hex

2шт.

24

129-572

NUT,3/4"-10, G8

2шт.

25

A60425

BRACKET

- drawbar pivot pin

1шт.

26

113-671

BOLT - 5/8 x 3-1/4" N.C. hex

2шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

28

113-755

BOLT - 3/4 x 5-1/4" N.C. hex

2шт.

29

95-12

WASHER,3/4"

- 13/16 x 2 x 5/32"

1шт.

31

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

32

A59605

PIN

ASSY. - drawbar

1шт.

33

A57929

SPACER

- drawbar pivot

1шт.

34

A35270

WASHER

- drawbar anti-rattle spring

1шт.
