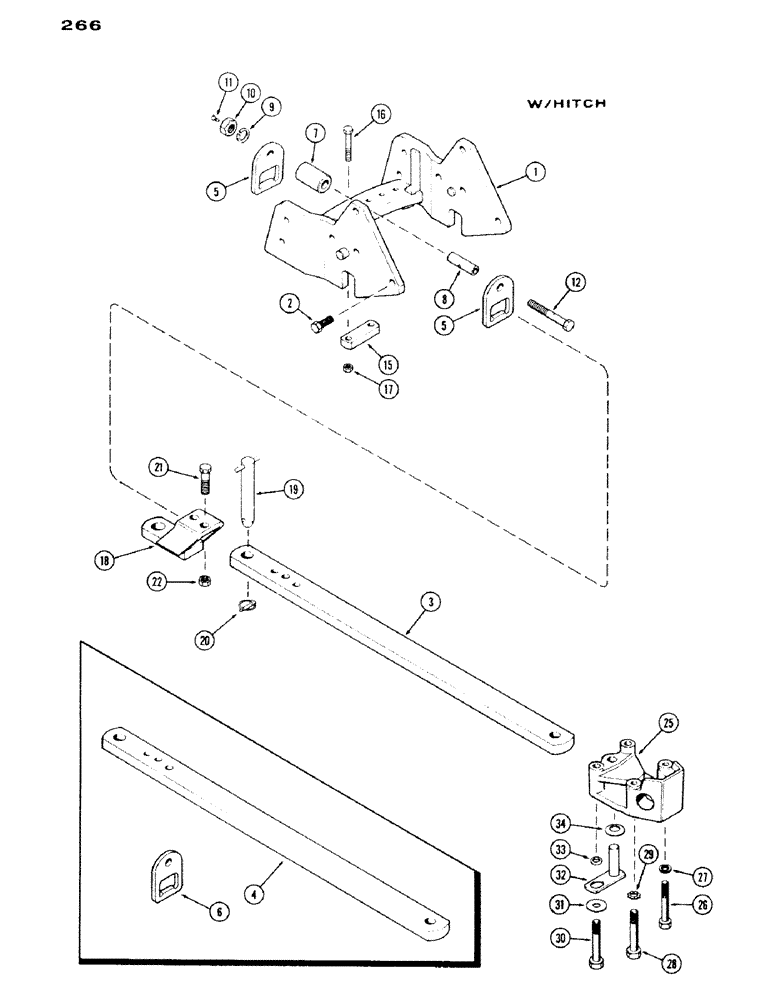

Запчасти Case IH 970 (266) - DRAWBAR, WITH HITCH (09) - CHASSIS/ATTACHMENTS

1

A62424

SUPPORT

ASSY. - drawbar (Replaces A60543)

1шт.

2

113-747

X

BOLT - 3/4 x 2-1/4" N.C. hex

8шт.

3

A65750

DRAWBAR, SWINGING

DRAWBAR - standard (Replaces A60426) (1st used trac. ser. no. 8717277)

1шт.

4

A60426

DRAWBAR

ASSY. - standard (Order 1-A65750 drawbar and 2-A60417 hanger brackets) to trac., Serial Range: -8717277

1шт.

5

A60417

BRACKET

- drawbar hanger (Replaces A60428) (used w/A65750 drawbar)

2шт.

6

A60428

BRACKET

- drawbar hanger (used w/ A60426)

2шт.

7

A59151

ROLLER

- drawbar

1шт.

8

A60418

SLEEVE

- drawbar

1шт.

9

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

10

25-1012

NUT,3/4"-10, G5

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" P.T.

1шт.

12

A59165

BOLT

- drawbar roller

1шт.

15

A58347

STRAP

- drawbar clamp

1шт.

16

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

17

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

A60407

ATTACHMENT - yoke (Mach. Item), Includes: Ref. 18 - 22

1шт.

18

NSS

NOT SOLD SEPARAT

YOKE ASSY. - drawbar

1шт.

19

A65764

PIN

ASSY. - drawbar (Replaces A57998), Includes: Ref. 20

1шт.

20

A30338

PIN

- klik

1шт.

21

113-764

BOLT

- 3/4 x 3-1/4" N.C. hex

2шт.

22

129-572

NUT,3/4"-10, G8

2шт.

25

A59603

BRACKET

- drawbar pivot pin

1шт.

26

113-672

BOLT

- 5/8 x 5-1/4" N.C. hex

2шт.

27

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

28

113-755

BOLT - 3/4 x 5-3/4" N.C. hex

1шт.

29

A34651

LOCK WASHER

- Shakeproof, 3/4" ext.

1шт.

30

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

3/4 x 6" N.C. hex

1шт.

31

95-12

WASHER,3/4"

- 13/16 x 2 x 5/32"

2шт.

32

A65762

PIN

ASSY. - drawbar (Replaces A59605)

1шт.

33

A57929

SPACER

- drawbar pivot

1шт.

34

A35270

WASHER

- drawbar anti-rattle spring

1шт.
