Запчасти Case IH 970 (258) - THREE POINT HITCH, DRAFT ARMS (09) - CHASSIS/ATTACHMENTS

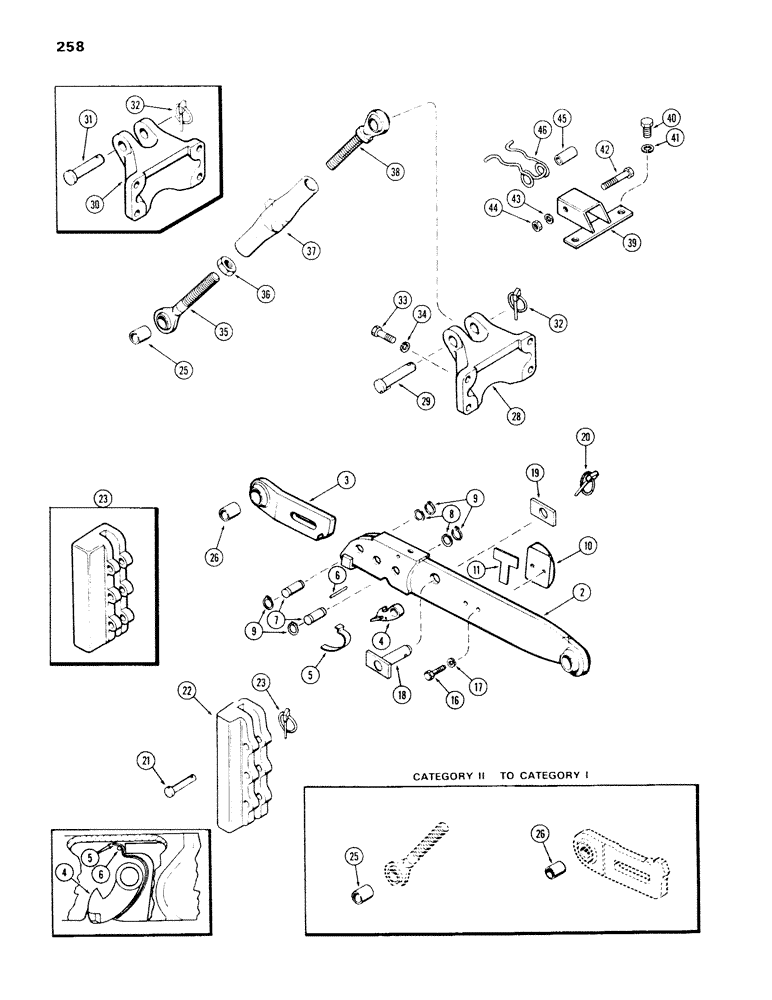

Схема запчастей Case IH 970 - (258) - THREE POINT HITCH, DRAFT ARMS (09) - CHASSIS/ATTACHMENTS
20
31
46
10
8
39
9
25
21
23
16
6
5
36
11
23
19
32
38
3
4
44
33
4
26
37
40
6
32
17
2
45
2
25
2
35
9
28
42
23
30
47
22
29
7
5
18
34
43

Артикул

Название

Примечание

Количество

A57732

ARM

ASSY. - draft (R.H.) (Not Illust.), Includes: Ref. 2 - 9

1шт.

A57733

ARM

ASSY. - draft (L.H.) (Not Illust.), Includes: Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

ARM - draft (R.H.) (Order A57732)

1шт.

2

NSS

NOT SOLD SEPARAT

ARM - draft (L.H.) (Order A57733)

1шт.

3

A57196

LINK

- folding, draft arm (R.H.)

1шт.

3

A57197

LINK

- folding, draft arms (L.H.)

1шт.

4

A57199

LATCH

- folding link

1шт.

5

A57200

SPRING

- folding link latch

2шт.

6

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

7

A33530

PIN,19.05mm OD x 50.01mm L

- latch and folding link

2шт.

8

A34059

WASHER

- latch pin (inside), 3/4 x 1-1/8 x 20 ga.

1шт.

9

A33531

SNAP RING,#75, Ext

Ring, Snap, , folding link latch pin #75, Ext

4шт.

10

A32973

BLOCK

- sway, draft arm

2шт.

11

A33959

SHIM,.0598" Thk

Draft arm sway block .0598" Thk

1шт.

16

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

17

92-8

LOCK WASHER,1/2"

4шт.

18

A62244

BLOCK

- yoke retaining

2шт.

19

A62246

BLOCK

- yoke pin

2шт.

20

A33509

PIN,11.18mm OD

ASSY. - klick

2шт.

21

A32965

PIN,15.88mm OD x 74.61mm L

- stop retaining clevis

4шт.

22

A62428

STOP

- draft arm sway (1st used trac. ser. no. 2360805)

2шт.

23

A60419

STOP

- draft arm sway to trans. (Order A62428), Serial Range: -2360805

2шт.

24

A33497

LINCH PIN,4.76mm OD Pin

PIN ASSY. - klick

4шт.

25

A33499

ADAPTER

- upper hitch pin (Category 11 to Category 1)

1шт.

26

A33498

ADAPTER

- lower hitch pin (Category 11 to Category 1)

2шт.

28

A66496

BRACKET

- upper link mounting (1st used trac. ser. no. 8742445)

1шт.

29

A66497

PIN

- rear link mast (1st used trac. ser. no. 8742445)

1шт.

30

A60667

BRACKET

- mounting, upper link to trac., Serial Range: -8742445

1шт.

31

A33432

PIN

- rear link mast to trac., Serial Range: -8742445

1шт.

32

A33509

PIN,11.18mm OD

ASSY. - klick, rear link mast and upper mtg. (one shipped loose in tool box)

2шт.

33

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

34

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

35

A34198

LIFT LINK END ASSY,1 1/4" - 12 x 6 1/2"

- upper link, rear (implement end)

1шт.

36

25-1520

NUT

- 1-1/4" N.F. hex., jam

1шт.

37

A62386

TURNBUCKLE

- lift link, upper (Replaces A57498)

1шт.

38

A34196

LIFT LINK END ASSY,1 1/4" - 12 x 6 1/2"

- upper link, front (tractor end)

1шт.

39

A60664

BRACKET

- turnbuckle transport clip

1шт.

40

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

41

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

42

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2 x 3" N.C. hex

1шт.

43

92-8

LOCK WASHER,1/2"

1шт.

44

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

45

A60246

SPACER

- turnbuckle transport clip bracket

1шт.

46

A61684

CLIP

- retaining, mast (Replaces A34242)

1шт.

Выбрано товаров: 44
