Запчасти Case IH 970 (254) - D.O.M. LOWER SENSING LINKAGE (09) - CHASSIS/ATTACHMENTS

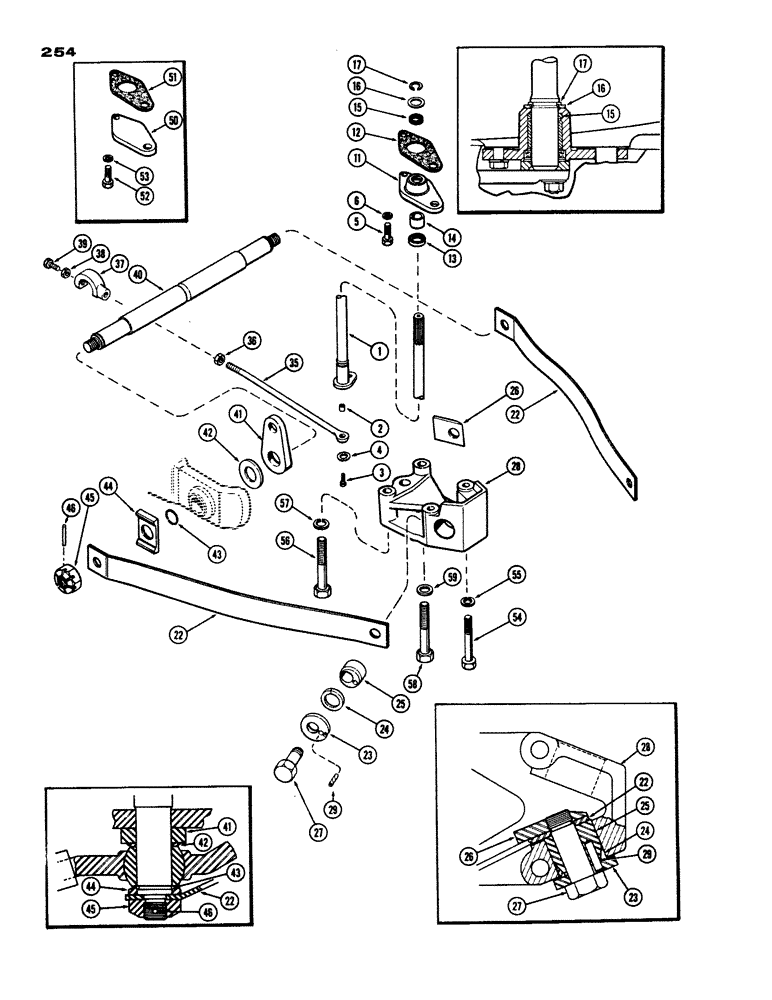

Схема запчастей Case IH 970 - (254) - D.O.M. LOWER SENSING LINKAGE (09) - CHASSIS/ATTACHMENTS
17
35
36
13
27
51
46
38
44
24
45
22
29
28
27
28
56
56
37
43
22
39
22
45
59
44
2
29
22
25
42
17
40
46
12
6
41
25
53
23
3
16
43
14
55
57
23
42
24
15
26
16
5
1
26
52
4
11
54
41
15
50

Артикул

Название

Примечание

Количество

1

A34834

SHAFT

- draft signal

1шт.

2

A34836

SPACER

- draft signal arm (5/16 x 1/2 x 15/32")

1шт.

3

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

4

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8 x 5/64"

1шт.

5

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

11

A32203

BUSHING

SUPPORT - draft signal shaft

1шт.

12

A32210

GASKET

- draft signal shaft support

1шт.

13

A23903

OIL SEAL

- oil, signal shaft support (1 x 1-1/2 x 1/4")

1шт.

14

A31082

BUSHING

BEARING - draft signal shaft siupport (1 x 1-1/4 x 1")

1шт.

15

A9394

RING

QUAD RING - draft signal shaft support (1 x 1-1/4 x 9/64")

1шт.

16

B18275

WASHER

- 1-1/32 x 1-1/2 x 12 ga.

1шт.

17

A33315

RING

SNAP RING - retaining, draft signal shaft

1шт.

22

A57581

SPRING

- D.O.M. wishbone, for satisfactory operation it is recommended that new springs be installed in pairs.

2шт.

23

A57585

WASHER

- clamp, wishbone adjusting cam

2шт.

24

A57584

RING

- D.O.M. wishbone cam adjusting

2шт.

25

A57582

CLAMP

CAM - D.O.M. wishbone adjusting

2шт.

26

A57583

CLAMP

- D.O.M. wishbone adjusting

2шт.

27

A57943

STEP BOLT

BOLT - wishbone spring cam

2шт.

28

A59603

BRACKET

- drawbar pivot pin

1шт.

29

138-2042

PIN,5/16" x 1 1/4", Coiled

2шт.

35

A33405

LINK

- draft signal control

1шт.

36

25-158

JAM NUT,Jam, 1/2"-20, G5

- 1/2" N.F. hex., jam

1шт.

37

A33006

LOCK

- draft signal control link

1шт.

38

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex., jam

1шт.

39

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

40

A57587

BAR

- cross, D.O.M. wishbone

1шт.

41

A32953

LINK

- support, D.O.M. wishbone cross bar

2шт.

42

A62435

WASHER

- inner, draft arm pivot (Replaces A34921)

2шт.

43

A57588

RING

SNAP RING - wishbone cross bar

2шт.

44

A57589

PLATE

- wishbone rear spacer

2шт.

45

A33404

NUT

- retaining, D.O.M. wishbone

2шт.

46

138-2014

PIN,3/16" x 1 7/8", Coiled

nut retainer 3/16" x 1 7/8", Coiled

2шт.

50

A32387

COVER - draft signal shaft (used w/out hitch)

1шт.

51

A32210

GASKET

- draft signal shaft cover

1шт.

52

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

53

92-6

LOCK WASHER,3/8"

1шт.

54

13-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8 x 5" N.C. hex.

2шт.

55

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

56

13-1284

CAPSCREW,Hex, 3/4" - 10 x 5 1/4", Gr 5

BOLT - 3/4 x 5-1/4" N.C. hex.

1шт.

57

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

58

13-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- 3/4 x 5-1/2" N.C. hex.

1шт.

59

95-12

WASHER,3/4"

- 13/16 x 2 x 5/32"

1шт.

Выбрано товаров: 43
