Запчасти Case IH 970 (252) - D.O.M. UPPER SENSING LINKAGE (09) - CHASSIS/ATTACHMENTS

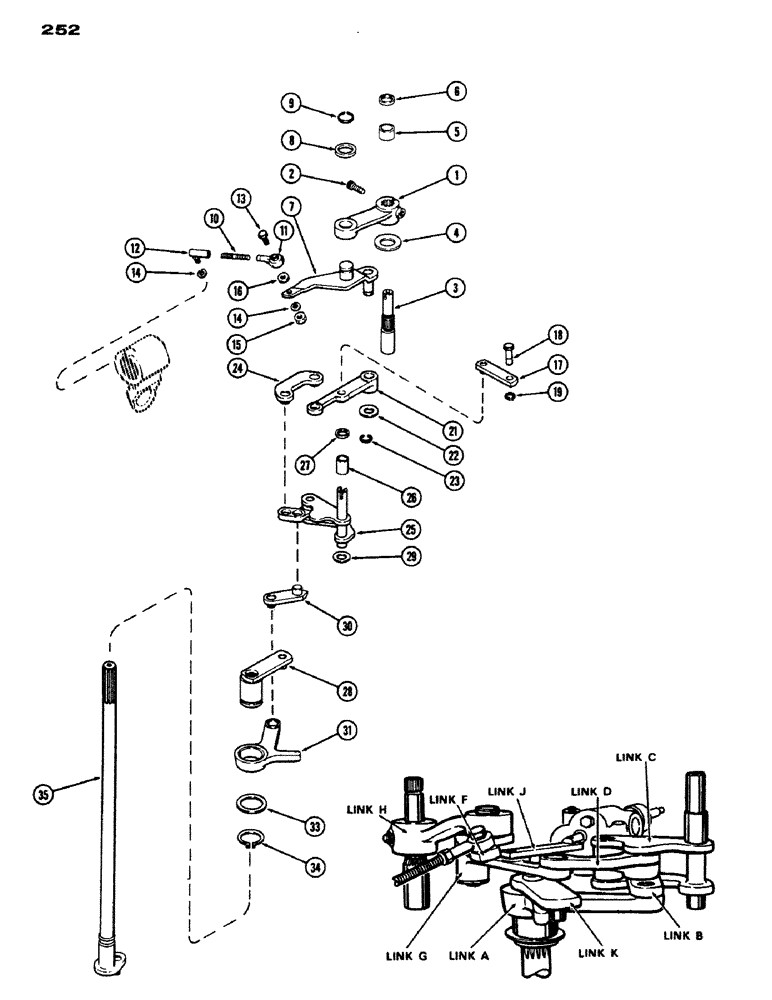

Схема запчастей Case IH 970 - (252) - D.O.M. UPPER SENSING LINKAGE (09) - CHASSIS/ATTACHMENTS
33
4
24
9
6
17
34
18
29
7
19
15
26
11
22
25
14
2
6
14
29
21
5
10
1
3
30
16
35
12
31
23
13

Артикул

Название

Примечание

Количество

1

A32320

LEVER

- draft control (Link "H")

1шт.

2

166-27

SCREW - 5/16 x 1-1/4" N.C. Ferry hd. cap ("H" link)

1шт.

3

A59599

SHAFT - manual, draft control

1шт.

4

A33316

WASHER - 1-1/32 x 1-11/16 x 12 ga.

1шт.

5

A33314

SPACER

- manual shaft, (53/64 x 1-3/64 x 9/16")

1шт.

6

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- oil, manual control shaft (3/4 x 1 x 1/8")

1шт.

7

A57088

LINK

LEVER - draft control (Link "F")

1шт.

8

F20286

WASHER

- "F" link, 29/32 x 1-3/8 x 16 ga.

1шт.

9

F62205

RING, SNAP

SNAP RING - retaining, "F" link

1шт.

10

A32347

ROD

- draft control link

1шт.

11

A35134

BEARING

- link rod

1шт.

12

A27382

BALL

JOINT - draft control link

1шт.

13

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

("F" link) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

14

92-5

LOCK WASHER,5/16"

2шт.

15

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex., jam

1шт.

16

A32395

WASHER

SPACER - ball joint (25/64 x 9/16 x 16 ga.)

1шт.

17

A32331

LINK

LEVER - draft control (Link "J")

1шт.

18

A32334

PIN

- "J" link to draft valve spool

1шт.

19

G46146

SNAP RING,#37, Ext

Ring, Snap, , draft valve spool pin #37, Ext

1шт.

21

A32335

LINK

DRAFT CONTROL (LINK "G")

1шт.

22

B18080

WASHER

- "G" link, 21/32 x 1-1/4 x 16 ga.

1шт.

23

A26828

RING

SNAP RING - retaining, "G" link

1шт.

24

A57365

LEVER

- draft control (Link "D")

1шт.

25

A32310

LINK

- draft control (Link "C")

1шт.

26

A32914

SPACER

- sensitivity hub (21/32 x 3/4 x 1")

1шт.

27

A32308

OIL SEAL

- oil, sensitivity shaft (5/8 x 7/8 x 1/8")

1шт.

28

A33393

LEVER

- draft control (Link "K")

1шт.

29

A57090

WASHER

- "C" link, 21/32 x 1-1/8 x 23 ga.

1шт.

30

A57362

LINK

LEVER - draft control (Link "B")

1шт.

31

A64598

LEVER

- draft control (Link "A") (Replaces A32324)

1шт.

33

B18302

WASHER

- "A" link

1шт.

34

R13338

SNAP RING,#150, Ext

Ring, Snap, , "K" link #150, Ext

1шт.

35

A34834

SHAFT

- draft signal

1шт.

Выбрано товаров: 33
