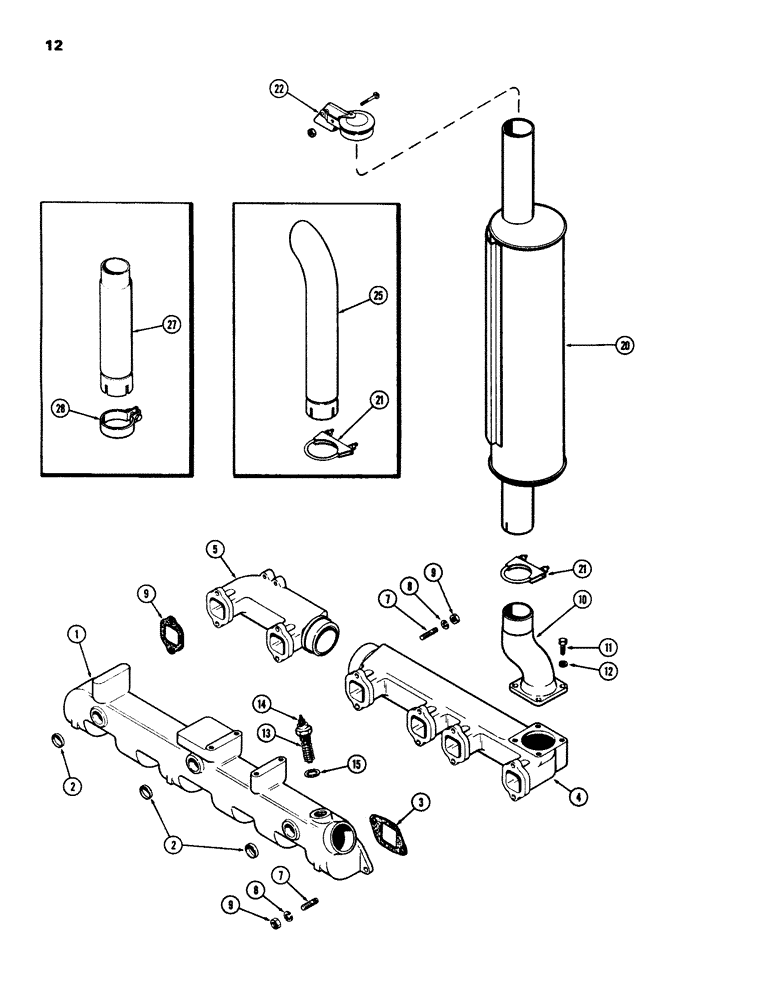

Запчасти Case IH 970 (012) - MANIFOLD AND MUFFLER, (401B) DIESEL ENGINE (02) - ENGINE

1

A61005

MANIFOLD

- intake, Includes: Ref. 2

1шт.

2

41-1020

PLUG,Cup, 1 1/4"

- intake manifold (Replaces A23468)

3шт.

3

A58662

MANIFOLD GASKET

- intake manifold

6шт.

4

A58749

MANIFOLD

- exhaust, front

1шт.

5

A58664

MANIFOLD

- exhaust, rear

1шт.

6

A58666

MANIFOLD GASKET

- exhaust manifold

6шт.

7

A59077

STUD

- intake and exhaust manifolds, 3/8" N.C. x 1-3/4"

24шт.

8

92-6

LOCK WASHER,3/8"

24шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (intake manifold)

12шт.

9

131-903

NUT,3/8"-16

NUT - 3/8" N.C. seez-pruf (exhaust manifold)

13шт.

10

A58751

MUFFLER

STACK - exhaust manifold

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

A37775

HEATER

ASSY. - intake manifold (12 V.)

1шт.

15

A20916

MANIFOLD GASKET

GASKET - heater, Includes: Ref. 14

1шт.

14

129-503

NUT,1/4"-20, Brass

1шт.

20

A59765

MUFFLER

1шт.

21

A27115

CLAMP

- muffler

1шт.

22

A59766

CAP

- muffler rain

1шт.

25

A62471

EXTENSION

- exhaust curved (used w/cab)

1шт.

27

A61110

EXTENSION

- exhaust pipe

1шт.

28

A62168

CLAMP

- extension (Order A27115)

1шт.
