Запчасти Case IH 970 (238) - TRANS. REAR COVER & HYDS., USED W/OUT D.O.M. (08) - HYDRAULICS

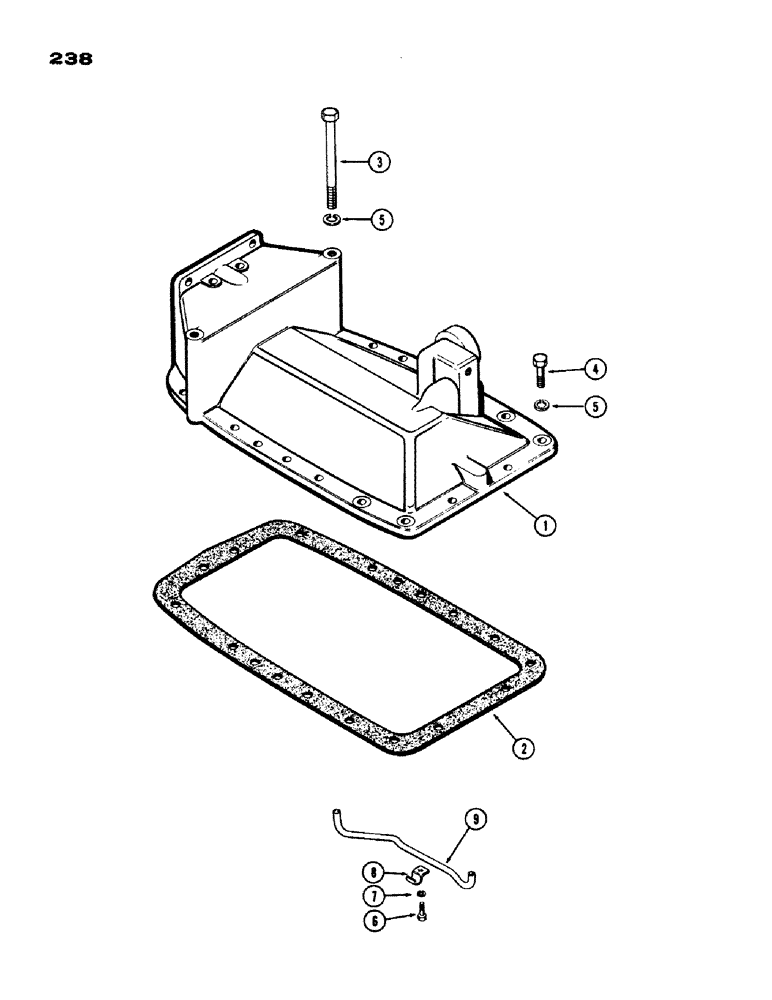

Схема запчастей Case IH 970 - (238) - TRANS. REAR COVER & HYDS., USED W/OUT D.O.M. (08) - HYDRAULICS
2
5
6
9
1
9
4
3
8
7

Артикул

Название

Примечание

Количество

1

A60637

COVER - transmission, rear top

1шт.

2

A32299

GASKET

- trans. rear top cover

1шт.

3

15-8112

BOLT

- 1/2 x 7" N.C. hex.

2шт.

4

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

12шт.

5

92-8

LOCK WASHER,1/2"

14шт.

6

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

A33554

CLIP - auxiliary valve return tube

2шт.

9

A33521

PIPE CLAMP

TUBE - return, auxiliary valve

1шт.

Выбрано товаров: 9
