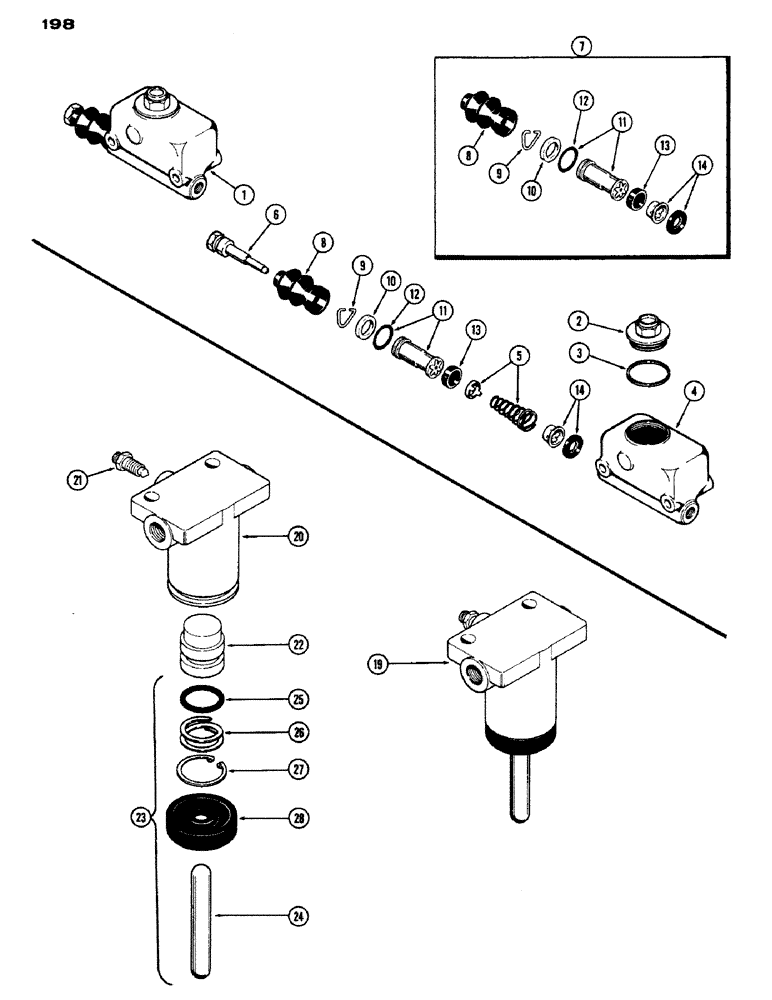

Запчасти Case IH 970 (198) - A59534 MASTER BRAKE CYLINDER (07) - BRAKES

1

A59534

CYLINDER

ASSY. - master brake, Includes: Ref. 2 - 14

1шт.

2

A19918

CAP

- filler

1шт.

3

A19755

GASKET

- filler cup

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - master brake (Order A59534)

1шт.

5

33352

SPRING

& RETAINER ASSY. - return, piston

1шт.

6

A42371

ROD

- push, brake cylinder

1шт.

7

U242369

TRACK SHOE

- master brake cylinder repair, Includes: Ref. 8 - 14

1шт.

8

BOOT - master cylinder

1шт.

9

33347

LOCKING DEVICE

LOCKWIRE - master cylinder stop plate

1шт.

10

33348

- stop, master cylinder piston

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON ASSY. - w/"O"ring (Order A42366), Includes: Ref. 12

1шт.

12

A30097

O-RING,0.549" ID x 0.755" OD x 0.103"

"O"RING - 9/16 x 3/4 x 3/32"

1шт.

13

A42368

CUP ASSY.

CUP - primary, master cylinder

1шт.

14

A42367

LOCK VALVE

VALVE ASSY. - cylinder

1шт.

19

A62483

CYLINDER

ASSY. - brake slave (7/8" diameter) (Replaces A59611), Includes: Ref. 20 - 28

2шт.

20

NSS

NOT SOLD SEPARAT

BODY - brake slave cylinder (Order A59611), A62483

1шт.

21

A41491

BLEEDER,1/4" - 28 x 23.37mm

BLEEDER - brake slave cylinder, A62483

1шт.

22

A43456

PISTON

- brake slave cylinder, A62483

1шт.

23

A42258

KIT

- brake slave cylinder repair, A62483, Includes: Ref. 24 - 28

1шт.

24

A42254

ROD

- push, brake slave cylinder, A62483

1шт.

25

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O"RING - 11/16 x 7/8 x 3/32", A62483 brake slave cylinder

1шт.

26

A42252

SEALING RING

RING - back-up, brake slave cyl. piston seal, A62483

1шт.

27

A42256

SNAP RING,0.901", Int, #90

A62483 brake slave cylinder 0.901", Int, #90

1шт.

28

A42255

BOOT

- brake slave cylinder rod, A62483

1шт.
