Запчасти Case IH 970 (196) - A62074 POWER BRAKE VALVE, USED PRIOR TO TRAC. SER. NO. 8711460 (07) - BRAKES

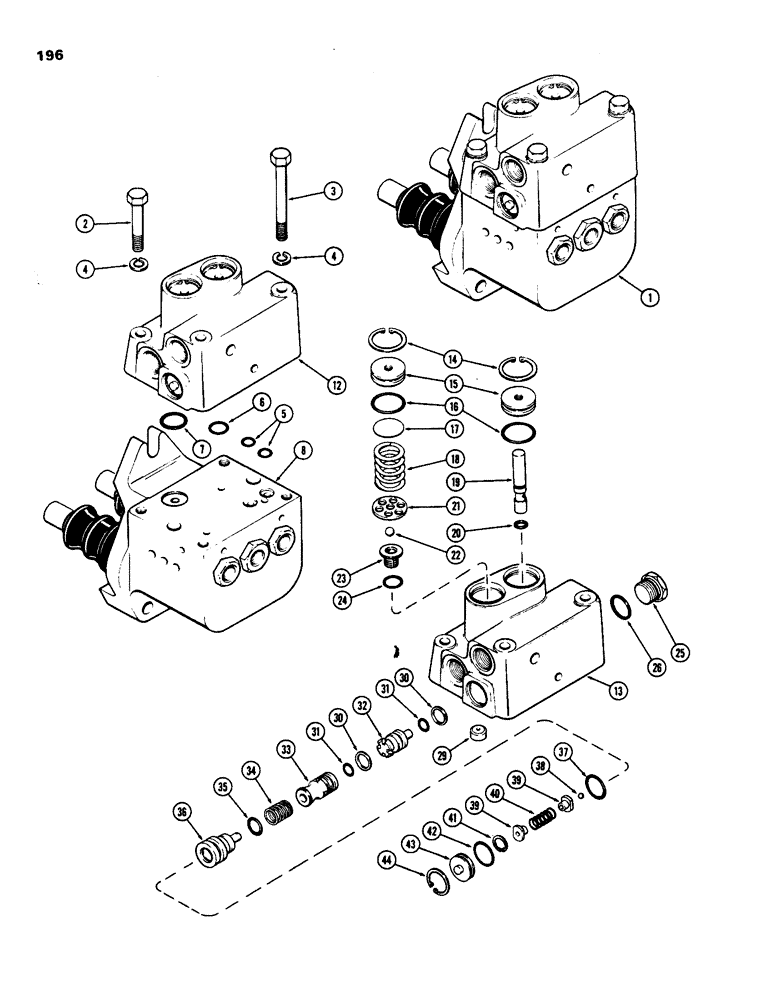

Схема запчастей Case IH 970 - (196) - A62074 POWER BRAKE VALVE, USED PRIOR TO TRAC. SER. NO. 8711460 (07) - BRAKES
40
34
38
19
24
17
21
32
33
35
2
15
44
39
7
18
22
5
42
3
4
4
31
14
26
43
12
41
30
16
31
23
36
8
30
39
6
29
1
13
37
20

Артикул

Название

Примечание

Количество

1

A62074

VALVE

ASSY. - brake, power (Order 1-A65055 valve and 2-13-644 bolts) (See Figures 195 and 195b), Includes: Ref. 2 - 44

1шт.

2

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

3

13-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- 5/16 x 3-1/4" N.C. hex

2шт.

4

92-5

LOCK WASHER,5/16"

4шт.

5

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

2шт.

Part of valve cover repair kit P/N A43709

1шт.

6

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

"O"RING - 1/2 x 5/8 x 1/16"

1шт.

Part of valve cover repair kit P/N A43709

1шт.

7

F10894

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

"O"RING - 3/4 x 7/8 x 1/16"

1шт.

Part of valve cover repair kit P/N A43709

1шт.

8

A62073

SPARE PART

VALVE ASSY. - master cylinder brake (Order 1-A65363 and (2-13-644 bolts) (See Figure 195B)

1шт.

12

A62434

COVER

ASSY. - brake valve, power, Includes: Ref. 13 - 44

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - brake valve cover (Order A62434)

1шт.

14

A36277

SNAP RING,1.125", Int, #112

2шт.

15

A59981

PLUG

- pressure relief and brake influx pressure

2шт.

16

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

"O"RING - 15/16 x 1-1/8 x 3/32"

2шт.

Part of valve cover repair kit P/N A43709

1шт.

17

A60655

SHIM,.010" Thk

(1-1/10" OD x 1/100" width) .010" Thk

1шт.

18

A59980

SPRING

- 1-1/5" free length

1шт.

19

A62836

INSERT

LIMITER - flow (Replaces A61899)

1шт.

20

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O"RING - 1/4 x 3/8 x 1/16"

1шт.

Part of valve cover repair kit P/N A43709

1шт.

21

A59979

WASHER

- pressure relief valve

1шт.

22

211-9

BALL,5/16" Dia

- pressure relief valve (meter) 5/16" Dia

1шт.

23

A62433

SEAT

- pressure relief valve (9/16 " -18 N.F. thread)

1шт.

24

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

"O"RING - 1/2 x 5/8 x 1/16"

1шт.

25

A61801

PLUG ASSY. - pressure regulator, with "O"ring, Includes: Ref. 26

1шт.

29

A59969

PLUG

- valve cover orifice

1шт.

30

A59951

RING

- seal, spool and piston

2шт.

Part of valve cover repair kit P/N A43709

1шт.

31

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk

2шт.

Part of valve cover repair kit P/N A43709

1шт.

32

A59977

PISTON

- power assist

1шт.

33

A62833

SPOOL

- pressure regulating (Replaces A61800)

1шт.

34

A59975

SPRING

- pressure reg. spool (21/32" free length)

1шт.

35

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O"RING - 7/16 x 5/8 x 3/32"

1шт.

Part of valve cover repair kit P/N A43709

1шт.

36

A60650

SPOOL

- pressure relief

1шт.

37

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O"RING - 11/16 x 1/8 x 3/32"

1шт.

Part of valve cover repair kit P/N A43709

1шт.

38

211-4

BALL

- pressure clutch control (5/32" diameter)

1шт.

39

A59972

RETAINER

- pressure control spring

2шт.

40

A60651

SPRING - pressure control (9/16" free length)

1шт.

41

A59973

SNAP RING,0.50", Int, #50

Ring, Snap, 0.50", Int, #50

1шт.

42

D32114

O-RING,0.75" ID x 0.875" OD

"O"RING - 3/4 x 7/8 x 1/16"

1шт.

Part of valve cover repair kit P/N A43709

1шт.

43

A60652

PLUG

- pressure control

1шт.

44

D28157

SNAP RING,0.875", Int, #87

Ring, Snap, , pressure control plug 0.875", Int, #87

1шт.

A43709

SEAL

KIT - repair, valve cover (Replaces A42878) Includes: Ref. 5, 6, 7, 16, 20, 26, 30, 31, 35, 37 and 42

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O"RING - 41/64 x 13/16 x 3/32"

1шт.

Part of valve cover repair kit P/N A43709

1шт.
