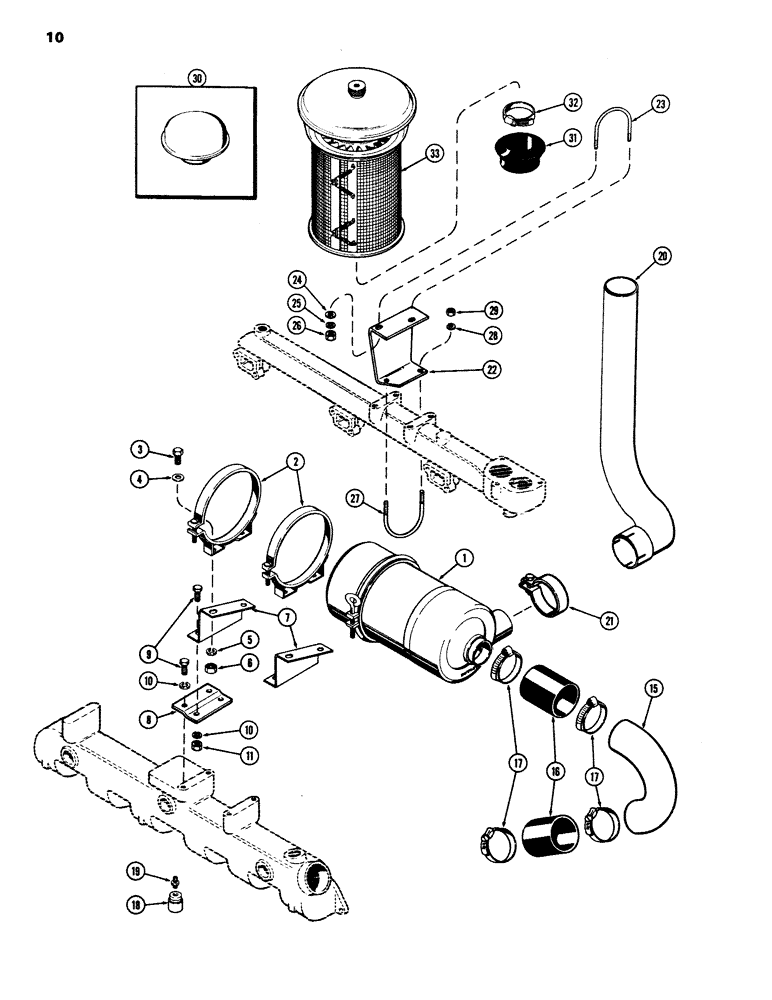

Запчасти Case IH 970 (010) - AIR CLEANER MOUNTING, (401B) DIESEL ENGINE (02) - ENGINE

1

A59999

CLEANER

ASSY. - air (See Figure 11B)

1шт.

2

70973

BRACKET

BANDS - air cleaner mounting (Replaces A16485)

2шт.

3

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

4

195-20

WASHER

- 5/16 x 7/8 x 1/16"

4шт.

5

92-5

LOCK WASHER,5/16"

4шт.

6

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

7

A59209

BRACKET

- air cleaner mounting

2шт.

8

A59249

SUPPORT - air cleaner mounting bracket

1шт.

9

13-314

BOLT - 3/8 x 7/8" N.C. hex.

6шт.

10

92-6

LOCK WASHER,3/8"

6шт.

11

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

2шт.

15

A61106

TUBE

- air cleaner to intake manifold

1шт.

16

A59581

HOSE

- air intake tube

2шт.

17

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16" to 3-1/4"

4шт.

18

A59568

INDICATOR

- air restriction

1шт.

19

D36264

FITTING

FILTER - safety

1шт.

20

A59582

TUBE

- air cleaner intake

1шт.

21

A62125

CLAMP

- air cleaner intake tube

1шт.

22

A62754

BRACKET - air cleaner tube support

1шт.

23

A59579

U-BOLT

BOLT - 1/4" N.C. "U"

1шт.

24

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

2шт.

25

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

26

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

27

A62459

BOLT - 5/16" N.C. "U"

1шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

2шт.

30

A61277

CAP

- air stack (Replaces A10872)

1шт.

31

A59584

GROMMET

- air cleaner intake tube

1шт.

32

214-42

CLAMP

- air cleaner tube grommet

1шт.

33

A61274

AIR PRE-CLEANER ASSY

PRE-CLEANER ASSY. - pre-screener (See Figure 11B)

1шт.
