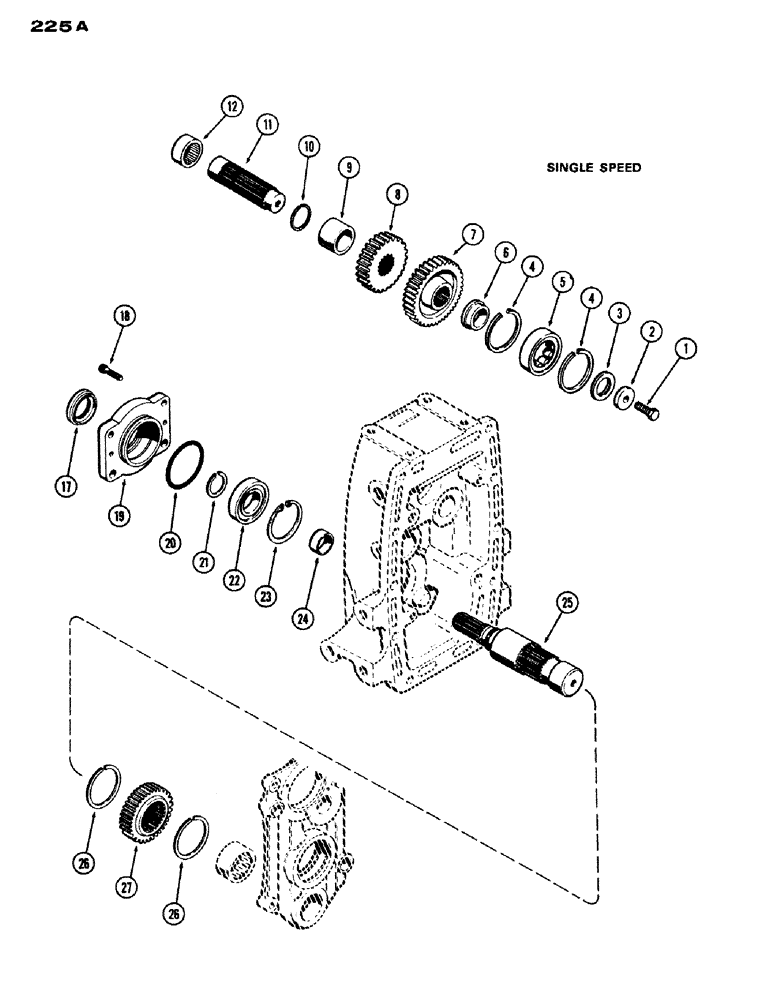

Запчасти Case IH 970 (225A) - P.T.O. OUTPUT & IDLER SHAFTS, SINGLE SPEED (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
121-415
BOLT,Hex, 1/2" x 1"
- 1/2 x 1" N.C. hex., jay-lock
1шт.
2
A57462
WASHER
- retaining, 2nd idler shaft
1шт.
3
A57509
PLATE
- inner race
1шт.
4
A32422
SNAP RING,2.36mm Thk, Int
SNAP RING - P.T.O. 2nd idler gear
2шт.
5
A32423
BEARING ASSY
BEARING - P.T.O. 2nd idler shaft outer race, front
1шт.
6
A57510
BEARING CONE,1.5748" ID x 2.245" OD x 0.74"
BEARING - single rib inner race
1шт.
7
A32408
GEAR
- driven, P.T.O. 2nd idler (36 teeth)
1шт.
7
A58986
GEAR
- P.T.O. 2nd idler driver pinion (1000 RPM) (28 teeth)
1шт.
9
A58207
SPACER
- P.T.O. idler shaft (1000 RPM)
1шт.
10
A7339
RING
SNAP RING - external, P.T.O. 2nd idler shaft
1шт.
11
A65253
GEAR
SHAFT - P.T.O. 2nd idler (Replaces A58203)
1шт.
12
A28229
NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W
BEARING - needle, P.T.O. 2nd idler shaft
1шт.
17
A57708
SEAL
- oil, 1-3/4 x 2-1/2 x 1/2"
1шт.
18
166-45
12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8
SCREW - 3/8 x 1" N.C. Ferry cap
2шт.
19
A62389
CARRIER - bearing, P.T.O. output shaft (1st used trans. ser. no. 2363134), not machined, (Machined) Use 59000 Carrier when Belt Pulley is used.
1шт.
19
A59000
CARRIER - bearing, P.T.O. output shaft to trans., Serial Range: -2363134
1шт.
20
A27507
O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro
"O"RING - 4 x 4-1/4 x 1/8"
1шт.
21
A27085
RING
SNAP RING - external, P.T.O. output shaft, rear
1шт.
22
B18274
BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"
BEARING - ball, P.T.O. output shaft, rear
1шт.
23
A57921
SNAP RING,3.346", Int, #334
Ring, Snap, , P.T.O. output shaft brg carrier 3.346", Int, #334
1шт.
24
A32419
SLEEVE CYLINDER
SLEEVE - P.T.O. output shaft oil seal (1-5/8 x 1-3/4 x 5/8") (1000 R.P.M. only)
1шт.
25
A59026
SHAFT
- P.T.O. output (1000 R.P.M.)
1шт.
26
A58234
SNAP RING,#237, 2.295", Ext
- P.T.O. output shaft
2шт.
27
A59021
GEAR - P.T.O. output (1000 R.P.M.) (38 int. and 32 ext. teeth)
1шт.
Выбрано товаров: 24
