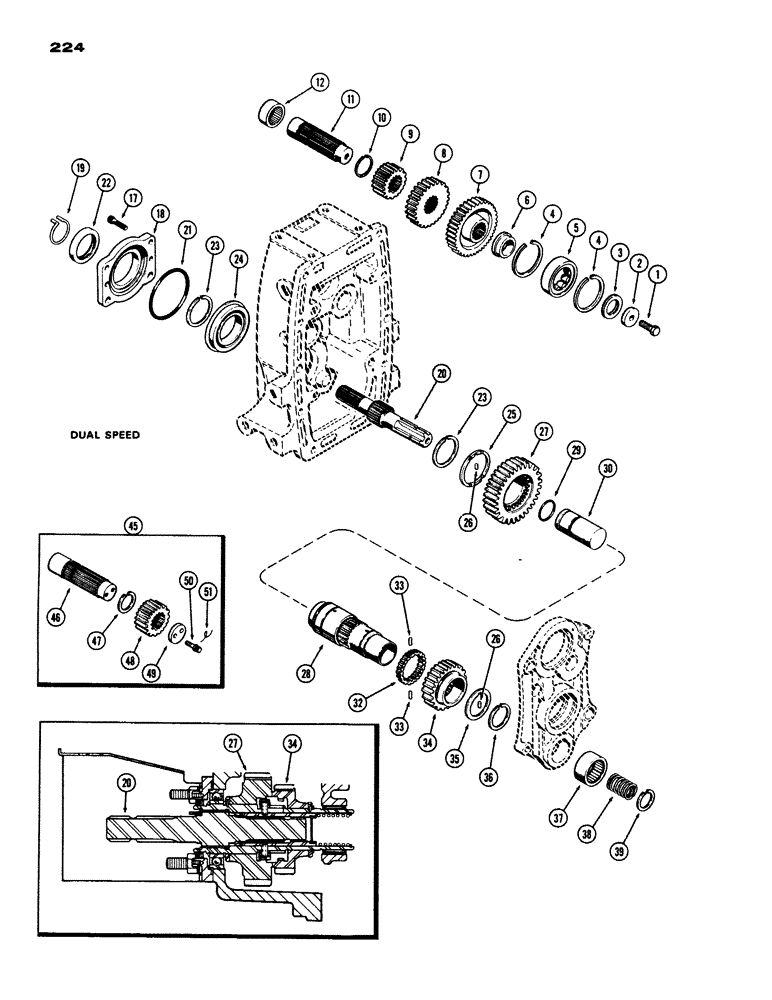

Запчасти Case IH 970 (224) - P.T.O. OUTPUT & IDLER SHAFTS, DUAL SPEED (06) - POWER TRAIN

1

121-415

BOLT,Hex, 1/2" x 1"

- 1/2 x 1" N.C. hex, jay-lock

1шт.

2

A57462

WASHER

- retaining, 2nd idler shaft

1шт.

3

A57509

PLATE

- inner race

1шт.

4

A32422

SNAP RING,2.36mm Thk, Int

SNAP RING - P.T.O. 2nd idler gear

2шт.

5

A32423

BEARING ASSY

BEARING - P.T.O. 2nd idler shaft outer race, front

1шт.

6

A57510

BEARING CONE,1.5748" ID x 2.245" OD x 0.74"

BEARING - single rib inner race

1шт.

7

A32408

GEAR

- driven, P.T.O. idler (36 T)

1шт.

8

A58986

GEAR

- P.T.O. 2nd idler driven pinion (1000 R.P.M.) (28 teeth)

1шт.

9

A58985

GEAR

- P.T.O. 2nd idler driven pinion (540 R.P.M.) to trans. (Order A65253 kit), Serial Range: -2402370

1шт.

10

A7339

RING

SNAP RING - external, P.T.O. 2nd idler shaft

1шт.

11

A58203

SHAFT

- P.T.O. 2nd idler to trans. (Order A65253 kit), Serial Range: -2402370

1шт.

12

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING - needle, P.T.O. 2nd idler shaft

1шт.

17

166-43

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Gr 8

SCREW - 3/8 x 3/4" N.C. Ferry cap

2шт.

18

A62390

RETAINER

- bearing and oil seal (1st used trans. ser. no. 2363134)

1шт.

Use A58222 Retainer when Belt Pulley is used. Use A62390 Retainer in place of A58222 when no belt pulley is used.

1шт.

18

A58222

RETAINER - bearing and oil seal to trans., Serial Range: -2363134

1шт.

19

A61029

SNAP RING,3.48mm Thk, Int

SNAP RING - retaining, P.T.O. output shaft

1шт.

20

A58214

SHAFT

- P.T.O. dual output

1шт.

21

A58224

SEALING RING

- Tetra, P.T.O. brg. cage (4-3/4 x 5 x 9/64")

1шт.

22

A58223

OIL SEAL

- P.T.O. oil (2-1/2 x 3-1/4 x 29/64")

1шт.

23

A58217

SNAP RING,#275, 2.594, Ext

- external, P.T.O. output sleeve

2шт.

24

A58216

BALL BEARING,69.98mm ID x 110mm OD x 20mm W

BEARING - rear, P.T.O. output sleeve

1шт.

25

A64309

WASHER,70.28mm ID x 88.9mm OD x 5.59mm Thk

- thrust, P.T.O. output sleeve (Replaces A58218)

1шт.

26

138-50

LOCK PIN,1/8" x 5/16", Slotted

PIN, 1/8" x 5/16", Slotted

2шт.

27

A58996

GEAR

- output sleeve (540 R.P.M. - 41 T)

1шт.

28

A65997

SLEEVE

- P.T.O. output shaft (Replaces A58227)

1шт.

29

A59001

O-RING,1.612" ID x 1.818" OD

"O"RING - P.T.O. support (1-39/64 x 1-51/64 x 3/32")

1шт.

30

A62030

SUPPORT

- P.T.O. output shaft sleeve (Replaces A58995)

1шт.

32

A58210

COLLAR

- P.T.O. shifting

1шт.

33

A62026

PIN

- shift collar (Replaces A58228)

2шт.

34

A58997

GEAR

- output sleeve (1000 R.P.M. - 32 T)

1шт.

35

A64308

WASHER,58.95mm ID x 76.2mm OD x 5.59mm Thk

- thrust, P.T.O. output sleeve (Replaces A58221)

1шт.

36

A32300

SNAP RING,#225, 2.174", Ext

- external, output sleeve

1шт.

37

A58197

NEEDLE BEARING,2.25" ID x 2.6255" OD x 1.25"

BEARING - needle, P.T.O. output sleeve

1шт.

38

A58213

SPRING

- P.T.O. gear shifting

1шт.

39

A58212

RING

SNAP RING - internal, spring retaining

1шт.

45

A65253

GEAR

KIT - P.T.O. 2nd idler shaft w/gear, Includes: Ref. 46 - 51

1шт.

46

A65248

SHAFT

- P.T.O. 2nd idler

1шт.

47

A7339

RING

- snap, external

1шт.

48

A65252

GEAR

- pinion, P.T.O. 2nd idler driver

1шт.

49

A65247

RETAINER

- P.T.O. 2nd idler shaft

1шт.

50

A65246

BOLT,Flanged, 3/8" - 16 x 1", Grade 8

- retainer to 2nd idler shaft

2шт.

51

391-701

ELECTRICAL WIRE

WIRE - lock, 18 ga. x 6"

1шт.
