Запчасти Case IH 970 (220) - P.T.O. 1ST IDLER AND P.T.O. BRAKE (06) - POWER TRAIN

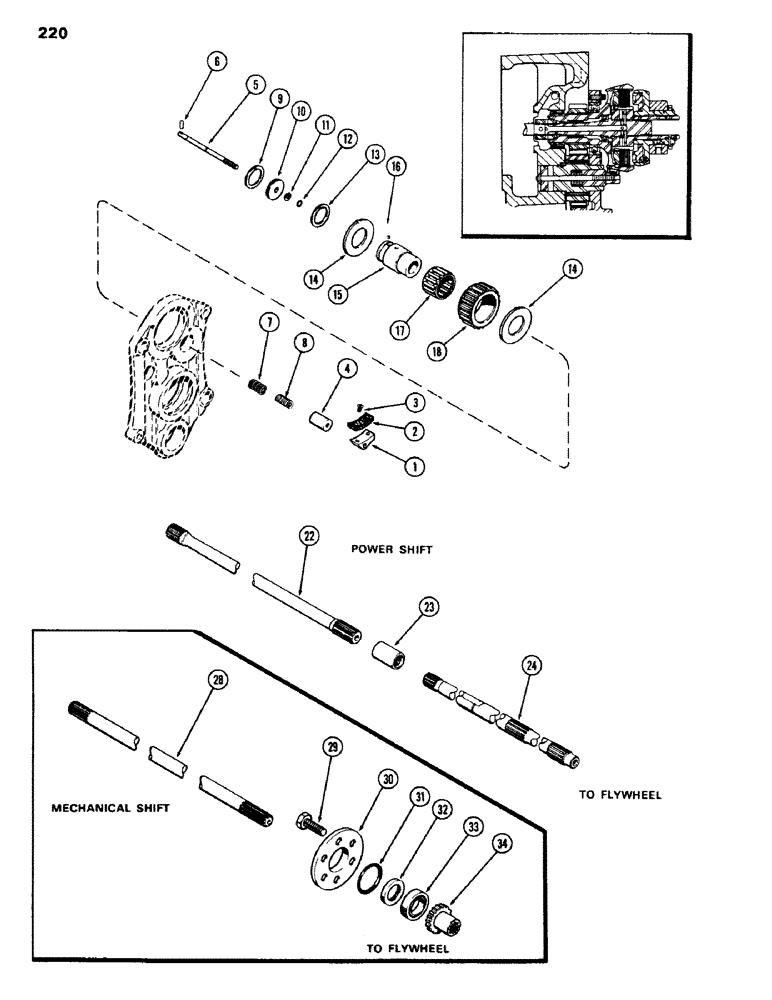

Схема запчастей Case IH 970 - (220) - P.T.O. 1ST IDLER AND P.T.O. BRAKE (06) - POWER TRAIN
28
29
24
22
16
13
2
8
4
7
33
15
32
18
9
17
23
11
30
6
14
5
31
34
1
3
12
14
10

Артикул

Название

Примечание

Количество

A58990

SHOE

ASSY. - P.T.O. brake (Not Illust.), Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SHOE - P.T.O. brake (Order A58990)

1шт.

2

A25599

FACING

KIT - P.T.O. brake, Includes: Ref. 3

1шт.

3

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - self tapping (#10 N.C. x 3/8")

2шт.

4

NSS

NOT SOLD SEPARAT

PISTON - P.T.O. brake apply (Order A58990)

1шт.

5

NSS

NOT SOLD SEPARAT

ROD - connecting, P.T.O. brake (Order A58990)

1шт.

6

138-2037

PIN,1/8" x 3/4", Coiled

1шт.

7

A32451

SPRING

- actuating, P.T.O. brake (1-3/16" free length)

1шт.

8

D38446

SPRING

- actuating, P.T.O. brake (1-1/4" free length)

1шт.

9

A58989

RING

- seal, P.T.O. brake release piston

1шт.

10

A58994

PISTON

- P.T.O. brake release

1шт.

11

G46146

SNAP RING,#37, Ext

Ring, Snap, (P.T.O. brake connecting rod) #37, Ext

1шт.

12

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O"RING - P.T.O. brake rod (1/4 x 3/8 x 1/16")

1шт.

13

A58989

RING

- seal (on P.T.O. 1st idler shaft)

1шт.

14

A32401

WASHER,44.83mm ID x 82.55mm OD x 1.6mm Thk

- P.T.O. 1st idler shaft

2шт.

15

A58988

SHAFT

- P.T.O. 1st idler

1шт.

16

211-7

BALL,1/4" Dia

- chrome steel (Gr. 3) 1/4" Dia

1шт.

17

A34137

NEEDLE BEARING,2" ID x 2.3770" OD x 1.5"

BEARING - roller, 1st idler gear

1шт.

18

A34136

GEAR

- 1st idler (25 T)

1шт.

22

A58414

SHAFT

- drive, rear, P.T.O. (30" long), power shift

1шт.

23

A37662

COUPLING, BREAK AWAY

COUPLING - drive shaft, front and rear, P.T.O., power shift

1шт.

24

A62864

SHAFT

- drive, front, P.T.O. (21-13/32" long) (Replaces A59932), power shift

1шт.

28

A34435

SHAFT

- drive, P.T.O. and hyd. pump (53-13/32" long), mechanical shift

1шт.

29

114-622

X

BOLT - 5/8 x 2" N.F. hex, mechanical shift

6шт.

30

A7145

RETAINER

- oil seal, clutch shaft, front, mechanical shift

1шт.

31

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O"RING - 2-1/2 x 2-3/4 x 1/8", mechanical shift

1шт.

32

A57479

OIL SEAL

- oil, clutch shaft, front (1-1/2 x 2-1/8 x 7/16"), mechanical shift

1шт.

33

A60023

BEARING ASSY,34.99mm ID x 62mm OD x 14mm W

BEARING - pilot, clutch shaft, front, mechanical shift

1шт.

34

A34522

SLEEVE

- drive shaft, front, P.T.O. and hyd. pump, mechanical shift

1шт.

Выбрано товаров: 29
