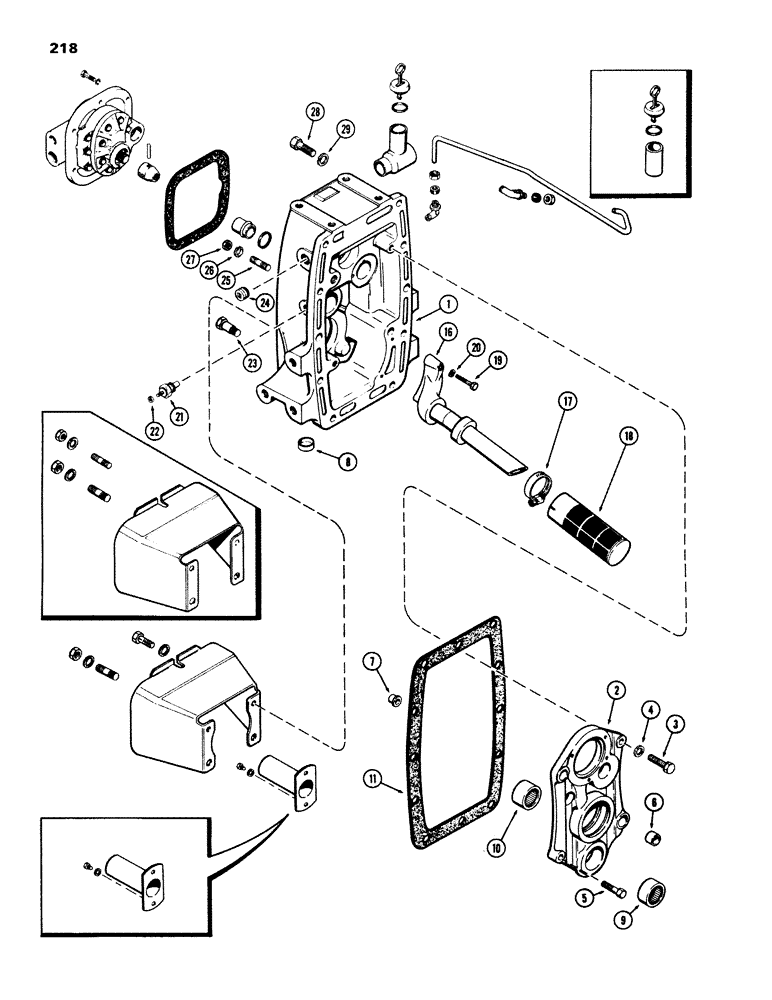

Запчасти Case IH 970 (218) - P.T.O. HOUSING (06) - POWER TRAIN

1

A65825

HOUSING

ASSY. - (Casting No. A65824)

1шт.

A62190

HOUSING

ASSY. - (Casting No. A62171) (Order A65825)

1шт.

A59028

HOUSING

ASSY. - (Casting No. A58191) (Order A65825), Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - P.T.O. and hyd. pump (Order A65825)

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - P.T.O. bearing carrier (Order A65825)

1шт.

3

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" N.C. hex

2шт.

4

92-8

LOCK WASHER,1/2"

2шт.

5

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

6

A50011

SLEEVE

- dowel, bearing, Serial Range: carrier-hsg.

2шт.

7

A32426

BUSHING

SPACER - bearing carrier to hsg. dowel sleeve

2шт.

8

41-1020

PLUG,Cup, 1 1/4"

- P.T.O. hsg., 1-17/64" cup (Replaces A23468)

1шт.

9

A28229

NEEDLE BEARING,Needle, 44.44mm ID x 53.99mm OD x 25.4mm W

BEARING - needle, 2nd idler shaft (1-3/4 x 2-1/8 x 1")

1шт.

10

A58197

NEEDLE BEARING,2.25" ID x 2.6255" OD x 1.25"

BEARING - needle, output sleeve (2-1/4 x 2-5/8 x 1-1/4")

1шт.

11

A32461

GASKET

- P.T.O. hsg. to trans. case

1шт.

16

A61057

TUBE

SCREEN ASSY. - hyd. dual pump oil suction, Includes: Ref. 17 and 18

1шт.

17

214-261

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - hose (3" max. dia.)

1шт.

18

A60299

FILTER STRAINER

SCREEN - hyd. dual pump oil suction

1шт.

19

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

20

92-5

LOCK WASHER,5/16"

2шт.

21

A21462

SENDER UNIT

SENSOR UNIT - trans. temp. (Replaces A58984)

1шт.

22

129-661

NUT

- hex (#10-32 brass)

1шт.

23

A61670

STEP BOLT

- dowel sleeve (Special)

2шт.

24

221-845

PLUG,Hex Soc, 3/4"-14

- P.T.O. housing, R.H. side (3/4" hex. socket head)

1шт.

25

A29396

STUD

- 5/8" N.C./N.F. x 2-7/8"

2шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

27

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

2шт.

28

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

6шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.
